Toyota Mark X

2004-11 → 2009-09 · chassis GRX12# · catalogue 3111A0 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

32 part groups · 7 illustrations

Illustrations

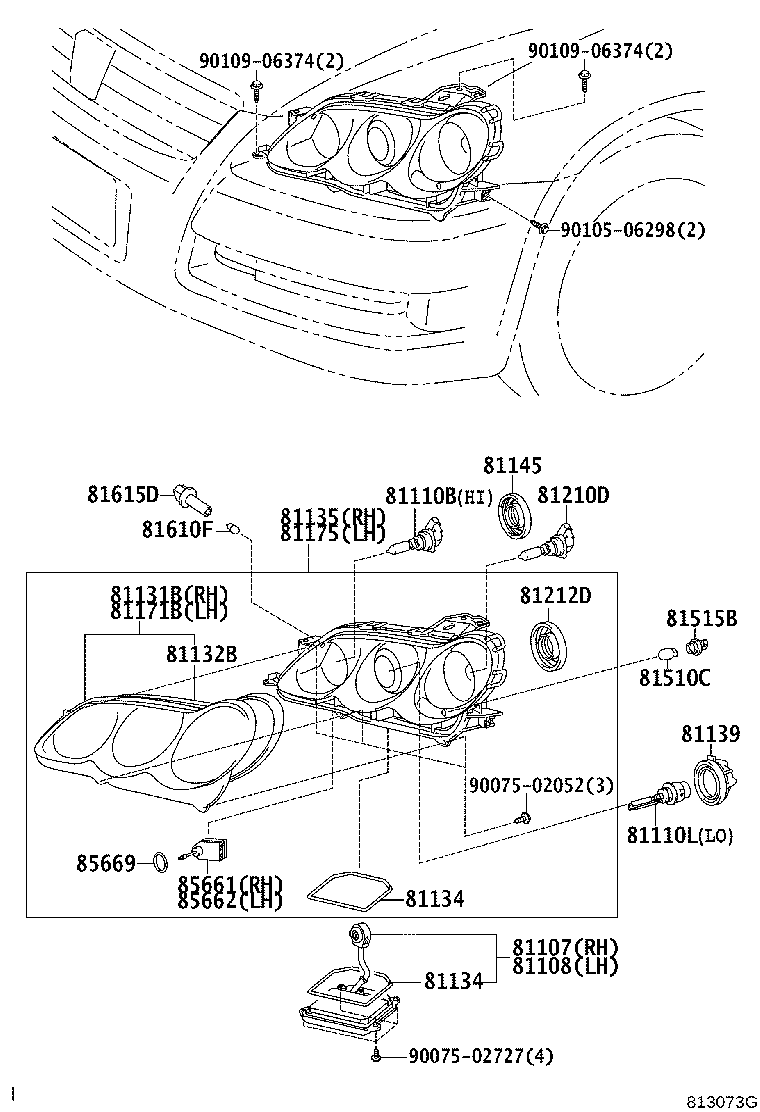

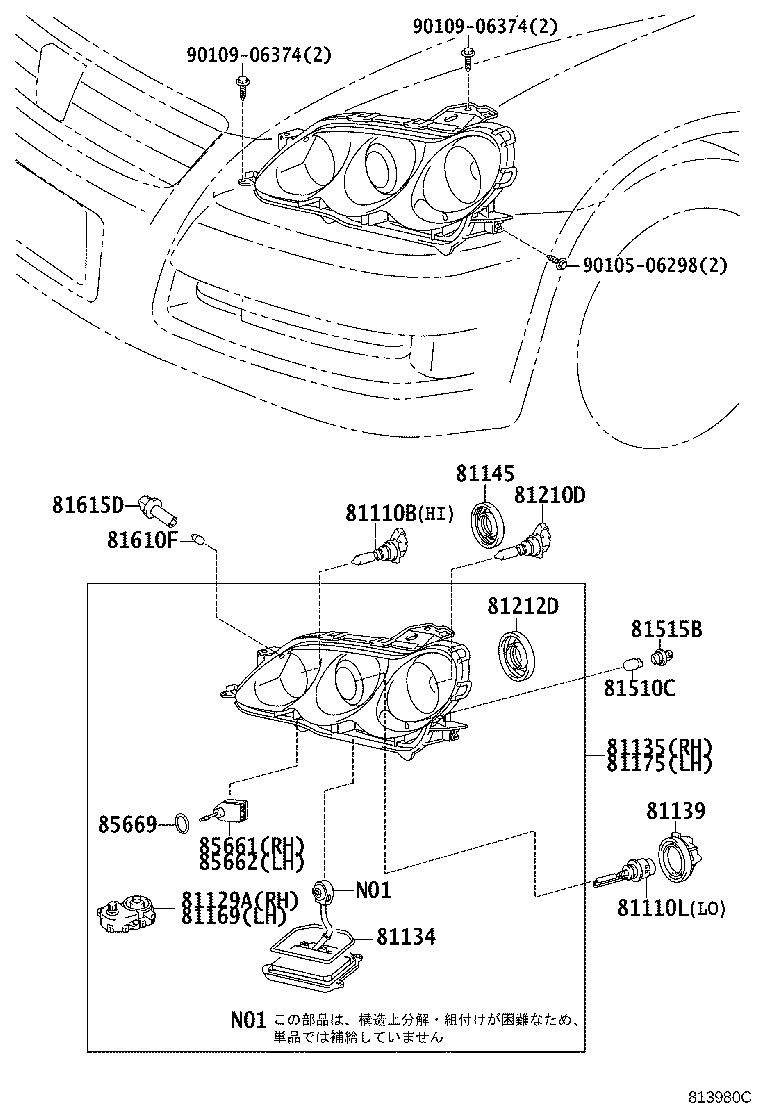

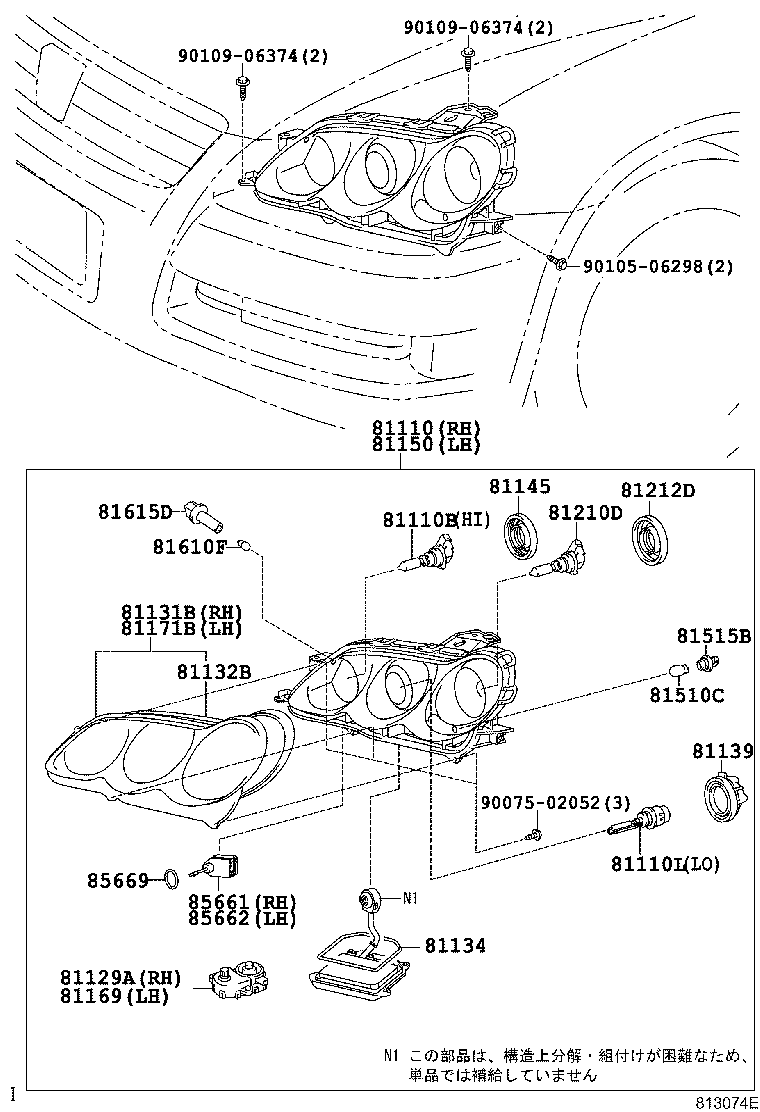

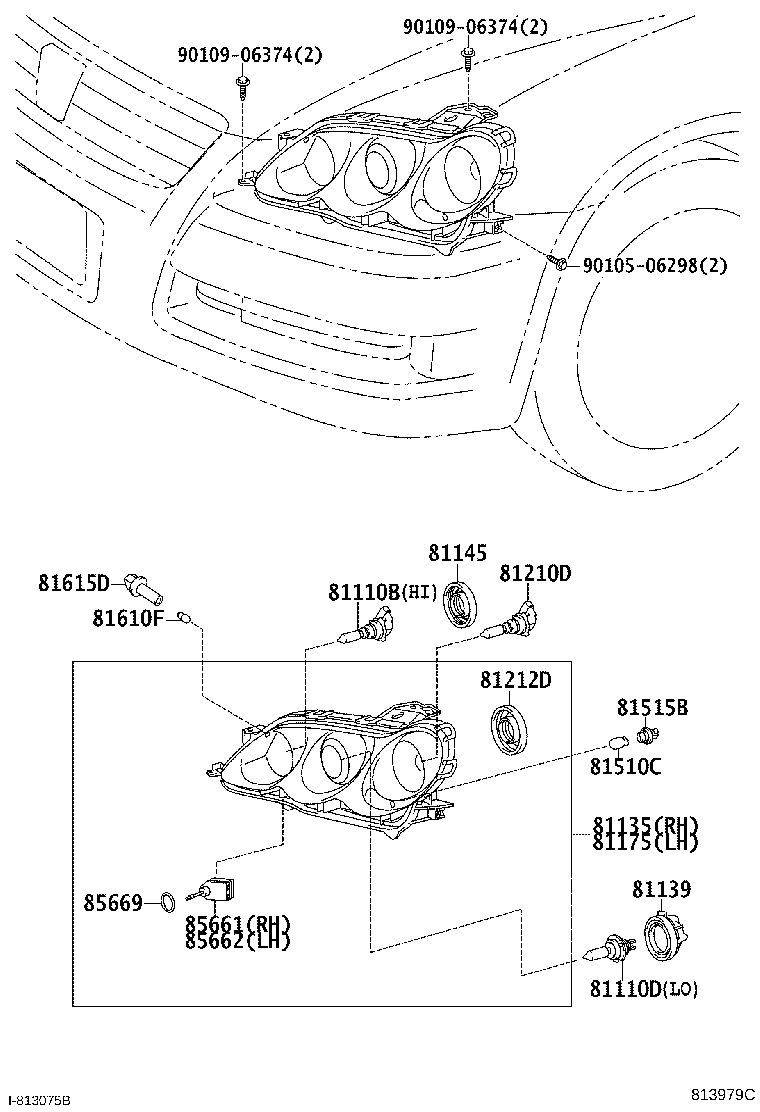

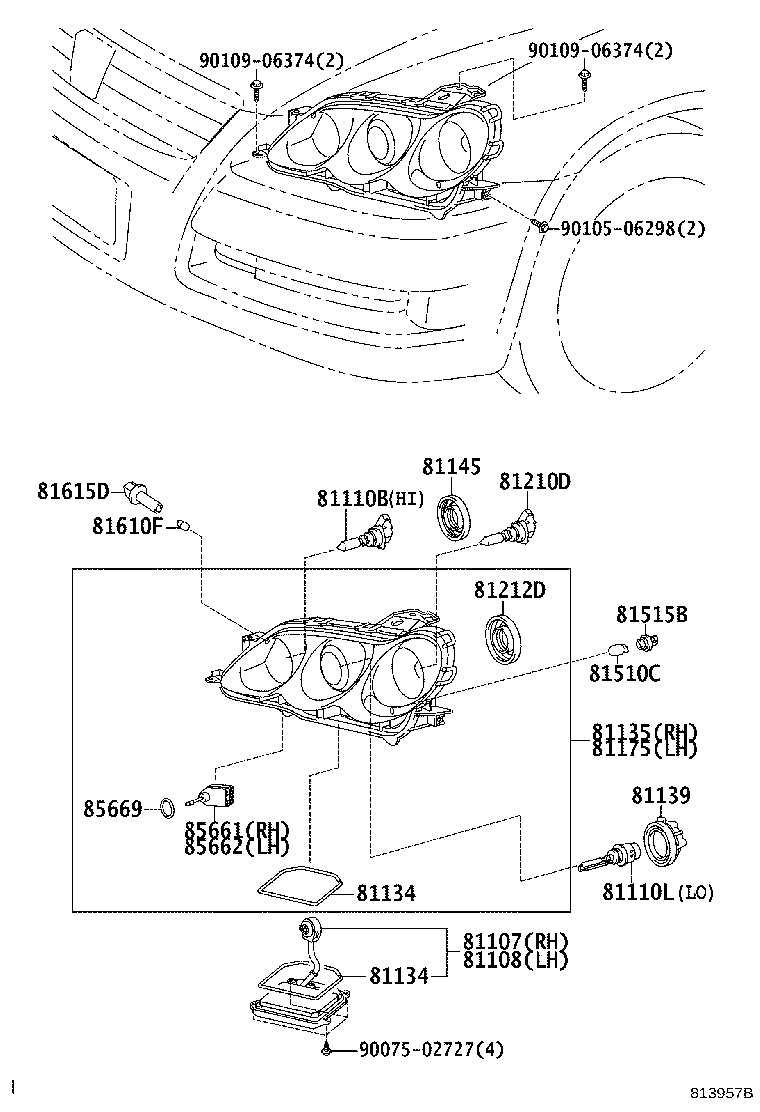

Figure 813075D 813075D 2004-11 → 2006-10 Figure 813979C 813979C 2006-10 → — Figure 813073G 813073G 2004-11 → 2006-10 Figure 813957B 813957B 2006-10 → — Figure 813074E 813074E 2004-11 → 2006-10 Figure 813980C 813980C 2006-10 → — Figure 813129B 813129B 2004-11 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81129A Reflector, Headlamp, RH
81131B Head Lamp Lens, RH
81132B Gasket, Headlamp Lens
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81145 Cover, Headlamp, NO.2
81150 Headlamp Assy, LH
81169 Reflector, Headlamp, LH
81171B Head Lamp Lens, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
81210D Bulb, Fog Lamp
81212D Cover, Fog Lamp
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
