Toyota Mark X

2004-11 → 2009-09 · chassis GRX12# · catalogue 3111A0 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

14 part groups · 2 illustrations

Illustrations

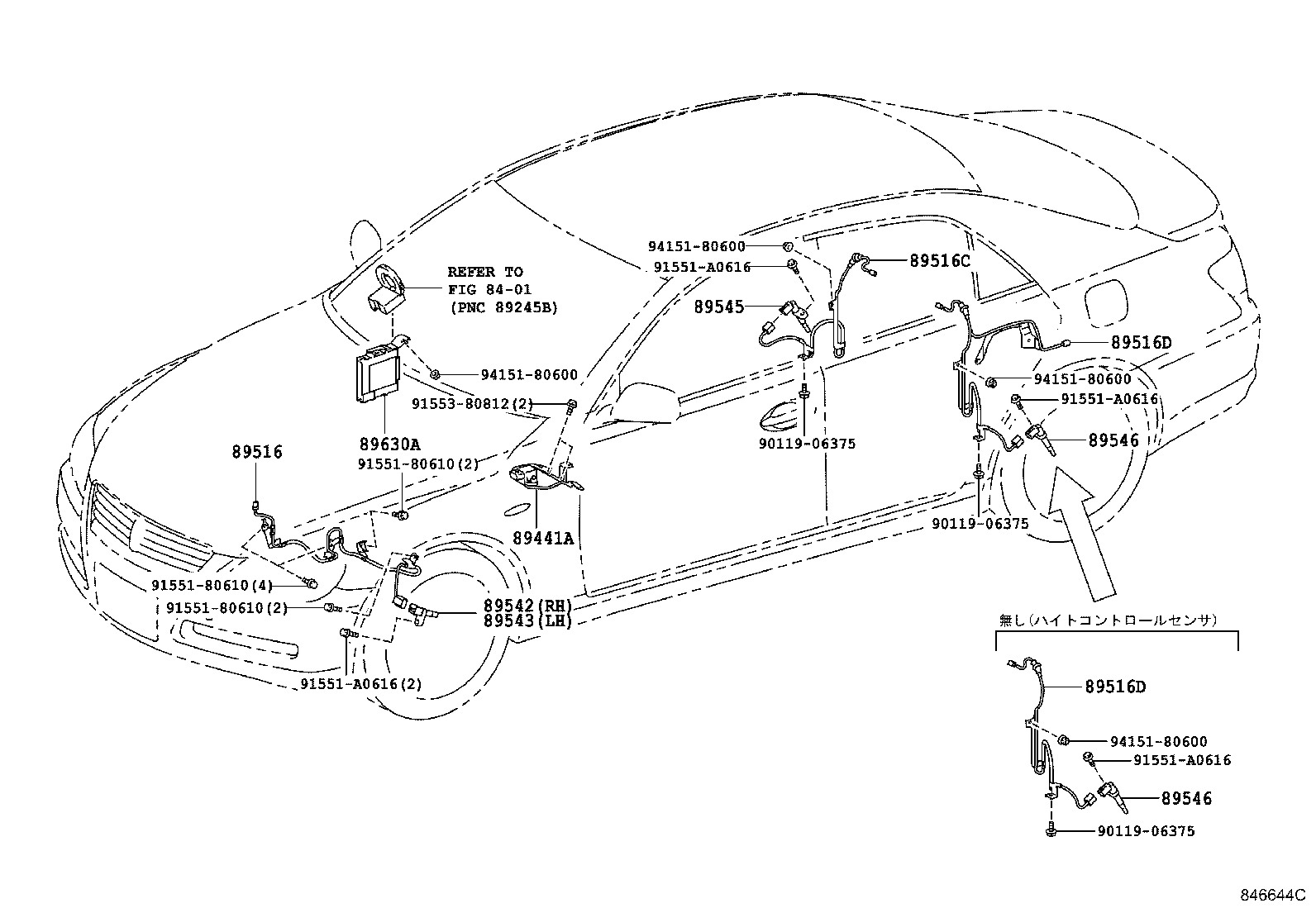

Figure 846643D 846643D 2004-11 → — Figure 846644C 846644C 2004-11 → —

Part groups

PNCDescription
86650K Buzzer Assy, Skid Control
88263M Relay, Abs Solenoid
88263N Relay, Abs Motor
88263P Relay, Stop Lamp Control
89180 Sensor Assy, Yawrate
89441A Sensor, Deceleration
89516 Wire, Skid Control Sensor
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630A Computer Assy, 4WD
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
