Toyota Mark X
2004-11 → 2009-09 · chassis GRX12# · catalogue 3111A0 · Japan
Supported model
Data version 2010-01

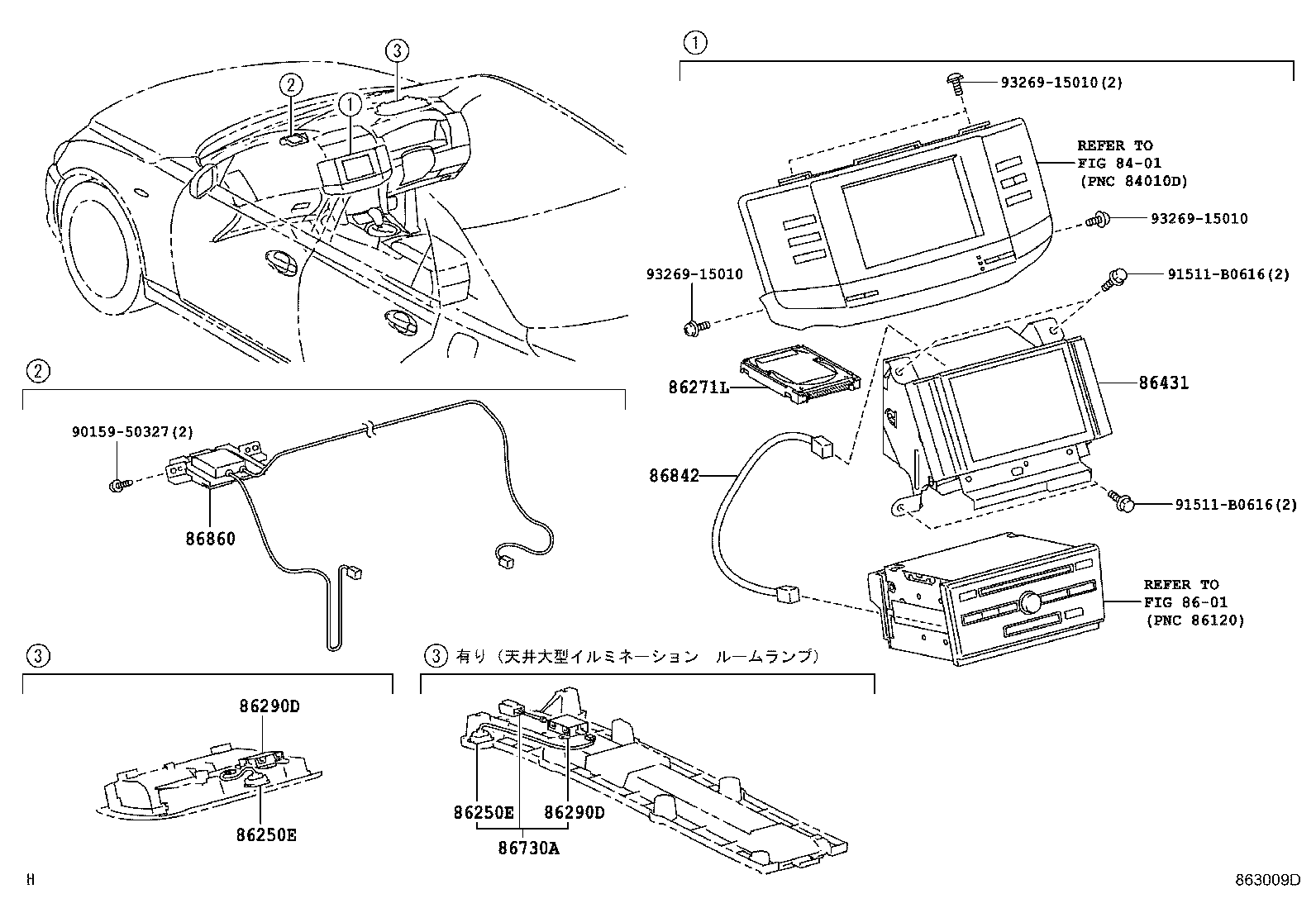

Navigation & Front Monitor Display
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86110B | Multi-display Assy |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86271L | Hard Disc |
| 86290D | Amplifier Assy, Microphone |
| 86421 | Board, Navigation Module |
| 86431 | Display, Display & Navigation Module |
| 86730A | Microphone Assy, Telephone |
| 86842 | Wire, Navigation, NO.1 |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
