Toyota Mark X
2004-11 → 2009-09 · chassis GRX12# · catalogue 3111A0 · Japan
Supported model
Data version 2010-01

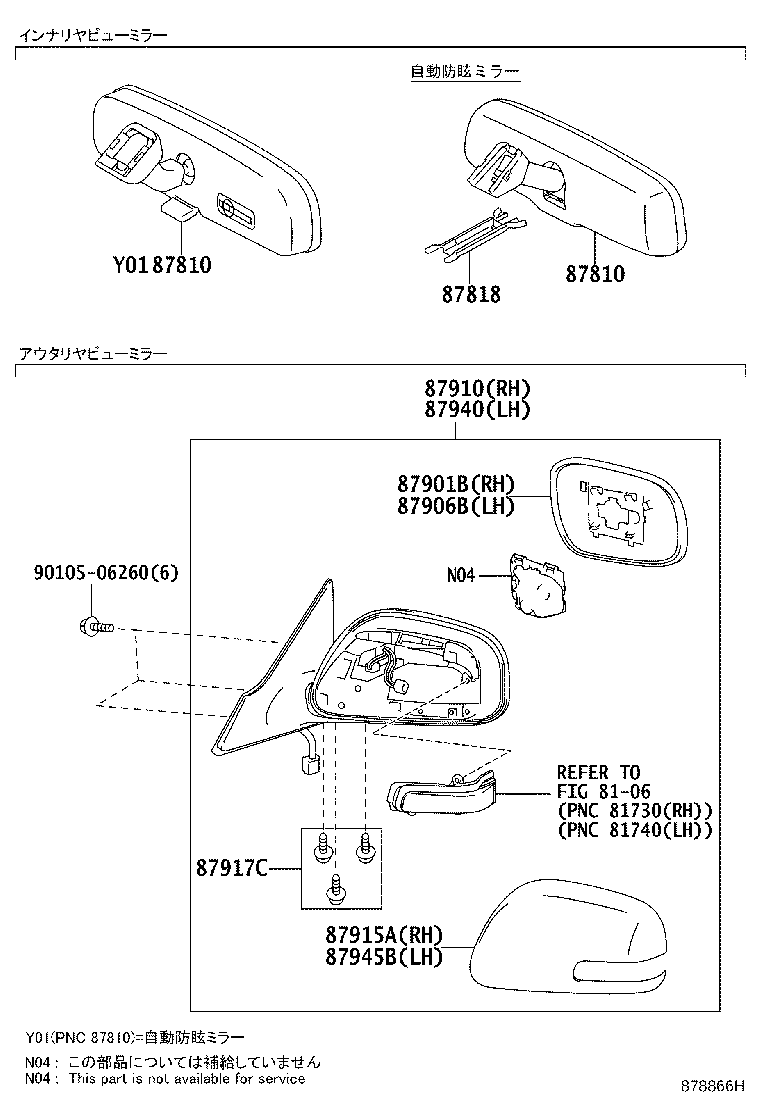

Mirror
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87818 | Cover, Inner RR View Mirror |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915A | Cover, Outer Mirror, RH |
| 87917C | Screw, Outer Mirror |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945B | Cover, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
