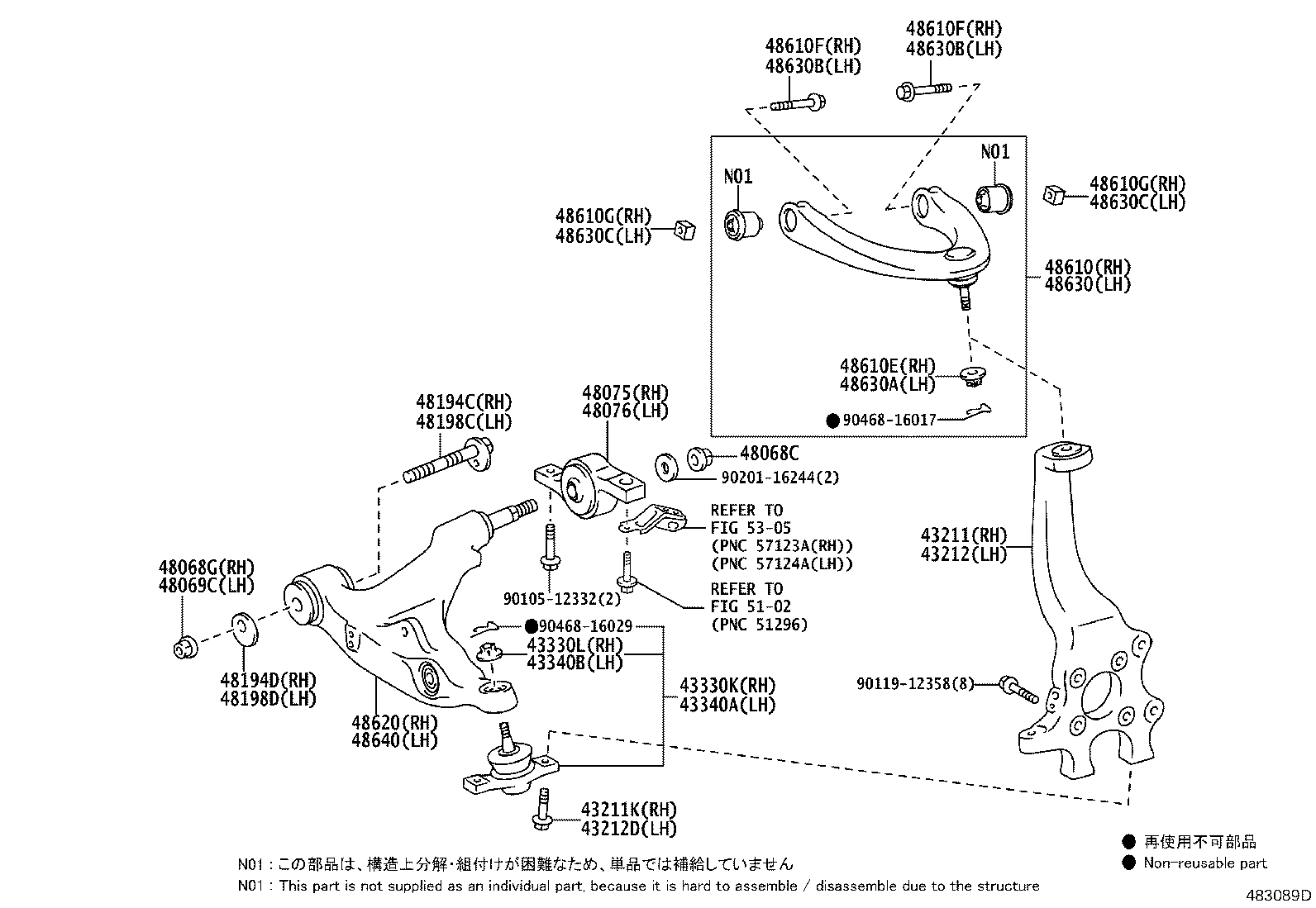

Exploded illustration 483089D 43330K — JOINT ASSY, LOWER BALL, FRONT RH (6 parts) 43340A — JOINT ASSY, LOWER BALL, FRONT LH (6 parts) 48068C — NUT(FOR FRONT SUSPENSION LOWER ARM) (9 parts) 43211 — KNUCKLE, STEERING, RH (6 parts) 43212 — KNUCKLE, STEERING, LH (6 parts) 48610G — NUT(FOR FRONT SUSPENSION UPPER ARM RH) (3 parts) 48630C — NUT(FOR FRONT SUSPENSION UPPER ARM LH) (3 parts) 9046816017 — not listed in this catalogue 48610E — NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH) (3 parts) 48630A — NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH) (3 parts) 48610 — ARM ASSY, FRONT SUSPENSION UPPER, RH (8 parts) 48630 — ARM ASSY, FRONT SUSPENSION, UPPER LH (8 parts) 48610G — NUT(FOR FRONT SUSPENSION UPPER ARM RH) (3 parts) 48630C — NUT(FOR FRONT SUSPENSION UPPER ARM LH) (3 parts) 48610F — BOLT(FOR FRONT SUSPENSION UPPER ARM RH) (3 parts) 48630B — BOLT(FOR FRONT SUSPENSION UPPER ARM LH) (3 parts) 48075 — BRACKET SUB-ASSY, LWR ARM, NO,1 (3 parts) 48076 — BRACKET SUB-ASSY, LWR ARM, NO.2 (3 parts) 9011912358 — not listed in this catalogue 48610F — BOLT(FOR FRONT SUSPENSION UPPER ARM RH) (3 parts) 48630B — BOLT(FOR FRONT SUSPENSION UPPER ARM LH) (3 parts) 48194C — CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH (4 parts) 48198C — CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH (4 parts) 48194D — CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH (3 parts) 48198D — CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH (3 parts) 48068G — NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) (3 parts) 48069C — NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) (3 parts) 48620 — ARM ASSY, FRONT SUSPENSION, LOWER RH (8 parts) 48640 — ARM ASSY, FRONT SUSPENSION LOWER, LH (8 parts) 43330L — NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) (6 parts) 43340B — NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) (6 parts) 43211K — BOLT (FOR STEERING KNUCKLE RH) (3 parts) 43212D — BOLT (FOR STEERING KNUCKLE LH) (3 parts) 9046816029 — not listed in this catalogue 9020116244 — not listed in this catalogue 9010512332 — not listed in this catalogue 5305 — not listed in this catalogue 5102 — not listed in this catalogue
483089D · 31 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
127 parts on this figure
Part number Description Fitment Price
43211 — Knuckle, Steering, RH
43201-30010 Knuckle, Steering, RH
2009-10 → 2012-08 ended
GRX130,133 ¥19,400
43201-30021 Knuckle, Steering, RH
2009-10 → 2012-08 ended
GRX135 ¥21,900
43201-30010 Knuckle, Steering, RH
2012-08 → 2016-11 ended
GRX130,133 ¥19,400
43201-30021 Knuckle, Steering, RH
2012-08 → 2016-11 ended
GRX135 ¥21,900
43201-30010 Knuckle, Steering, RH
2016-11 → —
GRX130,133 ¥19,400
43201-30021 Knuckle, Steering, RH
2016-11 → —
GRX135 ¥21,900
43211K — Bolt (FOR STEERING KNUCKLE RH)
91552-L1455 Bolt (FOR STEERING KNUCKLE RH)
2009-10 → 2012-08 ended
GRX135 ¥240
91552-L1455 Bolt (FOR STEERING KNUCKLE RH)
2012-08 → 2016-11 ended
GRX135 ¥240
91552-L1455 Bolt (FOR STEERING KNUCKLE RH)
2016-11 → —
GRX135 ¥240
43212 — Knuckle, Steering, LH
43202-30020 Knuckle, Steering, LH
2009-10 → 2012-08 ended
GRX130,133 ¥19,400
43202-30031 Knuckle, Steering, LH
2009-10 → 2012-08 ended
GRX135 ¥21,900
43202-30020 Knuckle, Steering, LH
2012-08 → 2016-11 ended
GRX130,133 ¥19,400
43202-30031 Knuckle, Steering, LH
2012-08 → 2016-11 ended
GRX135 ¥21,900
43202-30020 Knuckle, Steering, LH
2016-11 → —
GRX130,133 ¥19,400
43202-30031 Knuckle, Steering, LH
2016-11 → —
GRX135 ¥21,900
43212D — Bolt (FOR STEERING KNUCKLE LH)
91552-L1455 Bolt (FOR STEERING KNUCKLE LH)
2009-10 → 2012-08 ended
GRX135 ¥240
91552-L1455 Bolt (FOR STEERING KNUCKLE LH)
2012-08 → 2016-11 ended
GRX135 ¥240
91552-L1455 Bolt (FOR STEERING KNUCKLE LH)
2016-11 → —
GRX135 ¥240
43330K — Joint Assy, Lower Ball, Front RH
43330-39625 Joint Assy, Lower Ball, Front RH
2009-10 → 2012-08 ended
GRX130,133 ¥5,300
43330-39635 Joint Assy, Lower Ball, Front RH
2009-10 → 2012-08 ended
GRX135 ¥3,030
43330-39625 Joint Assy, Lower Ball, Front RH
2012-08 → 2016-11 ended
GRX130,133 ¥5,300
43330-39635 Joint Assy, Lower Ball, Front RH
2012-08 → 2016-11 ended
GRX135 ¥3,030
43330-39625 Joint Assy, Lower Ball, Front RH
2016-11 → —
GRX130,133 ¥5,300
43330-39635 Joint Assy, Lower Ball, Front RH
2016-11 → —
GRX135 ¥3,030
43330L — Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
90171-14011 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2009-10 → 2012-08 ended
GRX130,133 ¥120
90171-14014 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2009-10 → 2012-08 ended
GRX135 ¥190
90171-14011 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2012-08 → 2016-11 ended
GRX130,133 ¥120
90171-14014 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2012-08 → 2016-11 ended
GRX135 ¥190
90171-14011 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2016-11 → —
GRX130,133 ¥120
90171-14014 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2016-11 → —
GRX135 ¥190
43340A — Joint Assy, Lower Ball, Front LH
43330-39635 Joint Assy, Lower Ball, Front LH
2009-10 → 2012-08 ended
GRX135 ¥3,030
43340-39505 Joint Assy, Lower Ball, Front LH
2009-10 → 2012-08 ended
GRX130,133 ¥5,300
43330-39635 Joint Assy, Lower Ball, Front LH
2012-08 → 2016-11 ended
GRX135 ¥3,030
43340-39505 Joint Assy, Lower Ball, Front LH
2012-08 → 2016-11 ended
GRX130,133 ¥5,300
43330-39635 Joint Assy, Lower Ball, Front LH
2016-11 → —
GRX135 ¥3,030
43340-39505 Joint Assy, Lower Ball, Front LH
2016-11 → —
GRX130,133 ¥5,300
43340B — Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
90171-14011 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2009-10 → 2012-08 ended
GRX130,133 ¥120
90171-14014 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2009-10 → 2012-08 ended
GRX135 ¥190
90171-14011 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2012-08 → 2016-11 ended
GRX130,133 ¥120
90171-14014 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2012-08 → 2016-11 ended
GRX135 ¥190
90171-14011 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2016-11 → —
GRX130,133 ¥120
90171-14014 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2016-11 → —
GRX135 ¥190
48068C — Nut(FOR FRONT SUSPENSION LOWER ARM)
94151-21240 note Nut(FOR FRONT SUSPENSION LOWER ARM)
2009-10 → 2012-08 ended
GRX130,133 ¥100
94151-21601 Nut(FOR FRONT SUSPENSION LOWER ARM)
2009-10 → 2012-08 ended
GRX135 ¥160
94151-21601 note Nut(FOR FRONT SUSPENSION LOWER ARM)
2009-10 → 2012-08 ended
GRX130,133 ¥160
94151-21240 note Nut(FOR FRONT SUSPENSION LOWER ARM)
2012-08 → 2016-11 ended
GRX130,133 ¥100
94151-21601 note Nut(FOR FRONT SUSPENSION LOWER ARM)
2012-08 → 2016-11 ended
GRX130,133 ¥160
94151-21601 Nut(FOR FRONT SUSPENSION LOWER ARM)
2012-08 → 2016-11 ended
GRX135 ¥160
94151-21240 note Nut(FOR FRONT SUSPENSION LOWER ARM)
2016-11 → —
GRX130,133 ¥100
94151-21601 note Nut(FOR FRONT SUSPENSION LOWER ARM)
2016-11 → —
GRX130,133 ¥160
94151-21601 Nut(FOR FRONT SUSPENSION LOWER ARM)
2016-11 → —
GRX135 ¥160
48068G — Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90179-14069 Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
2009-10 → 2012-08 ended
GRX135 ¥120
90179-14069 Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
2012-08 → 2016-11 ended
GRX135 ¥120
90179-14069 Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
2016-11 → —
GRX135 ¥120
48069C — Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90179-14069 Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
2009-10 → 2012-08 ended
GRX135 ¥120
90179-14069 Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
2012-08 → 2016-11 ended
GRX135 ¥120
90179-14069 Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
2016-11 → —
GRX135 ¥120
48075 — Bracket Sub-assy, Lwr Arm, NO,1
48075-30030 Bracket Sub-assy, Lwr Arm, NO,1
2009-10 → 2012-08 ended
GRX13# ¥2,460
48075-30030 Bracket Sub-assy, Lwr Arm, NO,1
2012-08 → 2016-11 ended
GRX13# ¥2,460
48075-30030 Bracket Sub-assy, Lwr Arm, NO,1
2016-11 → —
GRX13# ¥2,460
48076 — Bracket Sub-assy, Lwr Arm, NO.2
48076-30030 Bracket Sub-assy, Lwr Arm, NO.2
2009-10 → 2012-08 ended
GRX13# ¥2,460
48076-30030 Bracket Sub-assy, Lwr Arm, NO.2
2012-08 → 2016-11 ended
GRX13# ¥2,460
48076-30030 Bracket Sub-assy, Lwr Arm, NO.2
2016-11 → —
GRX13# ¥2,460
48194C — Cam, Front Suspension Camber Adjust, NO.1 RH
48190-50050 Cam, Front Suspension Camber Adjust, NO.1 RH
2009-10 → 2012-08 ended
GRX135 ¥810
48190-50050 Cam, Front Suspension Camber Adjust, NO.1 RH
2012-08 → 2014-10 ended
GRX135 ¥810
48190-77010 Cam, Front Suspension Camber Adjust, NO.1 RH
2014-10 → 2016-11 ended
GRX135 ¥580
48190-77010 Cam, Front Suspension Camber Adjust, NO.1 RH
2016-11 → —
GRX135 ¥580
48194D — Cam, Front Suspension Camber Adjust, NO.2 RH
48198-30060 Cam, Front Suspension Camber Adjust, NO.2 RH
2009-10 → 2012-08 ended
GRX135 ¥670
48198-30060 Cam, Front Suspension Camber Adjust, NO.2 RH
2012-08 → 2016-11 ended
GRX135 ¥670
48198-30060 Cam, Front Suspension Camber Adjust, NO.2 RH
2016-11 → —
GRX135 ¥670
48198C — Cam, Front Suspension Camber Adjust, NO.1 LH
48190-50050 Cam, Front Suspension Camber Adjust, NO.1 LH
2009-10 → 2012-08 ended
GRX135 ¥810
48190-50050 Cam, Front Suspension Camber Adjust, NO.1 LH
2012-08 → 2014-10 ended
GRX135 ¥810
48190-77010 Cam, Front Suspension Camber Adjust, NO.1 LH
2014-10 → 2016-11 ended
GRX135 ¥580
48190-77010 Cam, Front Suspension Camber Adjust, NO.1 LH
2016-11 → —
GRX135 ¥580
48198D — Cam, Front Suspension Camber Adjust, NO.2 LH
48198-30060 Cam, Front Suspension Camber Adjust, NO.2 LH
2009-10 → 2012-08 ended
GRX135 ¥670
48198-30060 Cam, Front Suspension Camber Adjust, NO.2 LH
2012-08 → 2016-11 ended
GRX135 ¥670
48198-30060 Cam, Front Suspension Camber Adjust, NO.2 LH
2016-11 → —
GRX135 ¥670
48610 — Arm Assy, Front Suspension Upper, RH
48610-39165 Arm Assy, Front Suspension Upper, RH
2009-10 → 2012-08 ended
GRX130,133 ¥17,900
48610-39175 Arm Assy, Front Suspension Upper, RH
2009-10 → 2012-08 ended
GRX135 ¥17,900
48610-39165 note Arm Assy, Front Suspension Upper, RH
2012-08 → 2015-09 ended
GRX130,133 ¥17,900
48610-39175 Arm Assy, Front Suspension Upper, RH
2012-08 → 2015-09 ended
GRX135 ¥17,900
48610-39205 note Arm Assy, Front Suspension Upper, RH
2015-09 → 2016-11 ended
GRX130,133 ¥14,900
48610-39215 Arm Assy, Front Suspension Upper, RH
2015-09 → 2016-11 ended
GRX135 ¥14,900
48610-39205 Arm Assy, Front Suspension Upper, RH
2016-11 → —
GRX130,133 ¥14,900
48610-39215 Arm Assy, Front Suspension Upper, RH
2016-11 → —
GRX135 ¥14,900
48610E — Nut, Castle(FOR FRONT SUSPENSION UPPER ARM RH)
90171-12012 Nut, Castle(FOR FRONT SUSPENSION UPPER ARM RH)
2009-10 → 2012-08 ended
GRX13# ¥190
90171-12012 Nut, Castle(FOR FRONT SUSPENSION UPPER ARM RH)
2012-08 → 2016-11 ended
GRX13# ¥190
90171-12012 Nut, Castle(FOR FRONT SUSPENSION UPPER ARM RH)
2016-11 → —
GRX13# ¥190
48610F — Bolt(FOR FRONT SUSPENSION UPPER ARM RH)
91672-G1070 Bolt(FOR FRONT SUSPENSION UPPER ARM RH)
2009-10 → 2012-08 ended
GRX13# ¥190
91672-G1070 Bolt(FOR FRONT SUSPENSION UPPER ARM RH)
2012-08 → 2016-11 ended
GRX13# ¥190
91672-G1070 Bolt(FOR FRONT SUSPENSION UPPER ARM RH)
2016-11 → —
GRX13# ¥190
48610G — Nut(FOR FRONT SUSPENSION UPPER ARM RH)
90173-10012 Nut(FOR FRONT SUSPENSION UPPER ARM RH)
2009-10 → 2012-08 ended
GRX13# ¥100
90173-10012 Nut(FOR FRONT SUSPENSION UPPER ARM RH)
2012-08 → 2016-11 ended
GRX13# ¥100
90173-10012 Nut(FOR FRONT SUSPENSION UPPER ARM RH)
2016-11 → —
GRX13# ¥100
48620 — Arm Assy, Front Suspension, Lower RH
48620-30290 Arm Assy, Front Suspension, Lower RH
2009-10 → 2012-08 ended
GRX130,133 ¥21,000
48620-30310 Arm Assy, Front Suspension, Lower RH
2009-10 → 2012-08 ended
GRX135 ¥30,600
48620-30310 Arm Assy, Front Suspension, Lower RH
2012-08 → 2016-11 ended
GRX135 ¥30,600
48620-30340 Arm Assy, Front Suspension, Lower RH
2012-08 → 2016-11 ended
GRX130,133 ¥17,400
48620-53020 note Arm Assy, Front Suspension, Lower RH
2012-10 → 2015-09 ended
GRX130,133 250G,350S ¥14,600
48620-30310 Arm Assy, Front Suspension, Lower RH
2016-11 → —
GRX135 ¥30,600
48620-30340 Arm Assy, Front Suspension, Lower RH
2016-11 → —
GRX130,133 ¥17,400
48620-53020 note Arm Assy, Front Suspension, Lower RH
2019-03 → —
GRX133 ¥14,600
48630 — Arm Assy, Front Suspension, Upper LH
48610-39175 Arm Assy, Front Suspension, Upper LH
2009-10 → 2012-08 ended
GRX135 ¥17,900
48630-39105 Arm Assy, Front Suspension, Upper LH
2009-10 → 2012-08 ended
GRX130,133 ¥17,900
48610-39175 Arm Assy, Front Suspension, Upper LH
2012-08 → 2015-09 ended
GRX135 ¥17,900
48610-39215 Arm Assy, Front Suspension, Upper LH
2015-09 → 2016-11 ended
GRX135 ¥14,900
48630-39105 note Arm Assy, Front Suspension, Upper LH
2012-08 → 2015-09 ended
GRX130,133 ¥17,900
48630-39125 note Arm Assy, Front Suspension, Upper LH
2015-09 → 2016-11 ended
GRX130,133 ¥14,900
48610-39215 Arm Assy, Front Suspension, Upper LH
2016-11 → —
GRX135 ¥14,900
48630-39125 Arm Assy, Front Suspension, Upper LH
2016-11 → —
GRX130,133 ¥14,900
48630A — Nut, Castle(FOR FRONT SUSPENSION UPPER ARM LH)
90171-12012 Nut, Castle(FOR FRONT SUSPENSION UPPER ARM LH)
2009-10 → 2012-08 ended
GRX13# ¥190
90171-12012 Nut, Castle(FOR FRONT SUSPENSION UPPER ARM LH)
2012-08 → 2016-11 ended
GRX13# ¥190
90171-12012 Nut, Castle(FOR FRONT SUSPENSION UPPER ARM LH)
2016-11 → —
GRX13# ¥190
48630B — Bolt(FOR FRONT SUSPENSION UPPER ARM LH)
91672-G1070 Bolt(FOR FRONT SUSPENSION UPPER ARM LH)
2009-10 → 2012-08 ended
GRX13# ¥190
91672-G1070 Bolt(FOR FRONT SUSPENSION UPPER ARM LH)
2012-08 → 2016-11 ended
GRX13# ¥190
91672-G1070 Bolt(FOR FRONT SUSPENSION UPPER ARM LH)
2016-11 → —
GRX13# ¥190
48630C — Nut(FOR FRONT SUSPENSION UPPER ARM LH)
90173-10012 Nut(FOR FRONT SUSPENSION UPPER ARM LH)
2009-10 → 2012-08 ended
GRX13# ¥100
90173-10012 Nut(FOR FRONT SUSPENSION UPPER ARM LH)
2012-08 → 2016-11 ended
GRX13# ¥100
90173-10012 Nut(FOR FRONT SUSPENSION UPPER ARM LH)
2016-11 → —
GRX13# ¥100
48640 — Arm Assy, Front Suspension Lower, LH
48640-30290 Arm Assy, Front Suspension Lower, LH
2009-10 → 2012-08 ended
GRX130,133 ¥21,000
48640-30310 Arm Assy, Front Suspension Lower, LH
2009-10 → 2012-08 ended
GRX135 ¥30,600
48640-30310 Arm Assy, Front Suspension Lower, LH
2012-08 → 2016-11 ended
GRX135 ¥30,600
48640-30340 Arm Assy, Front Suspension Lower, LH
2012-08 → 2016-11 ended
GRX130,133 ¥17,400
48640-53020 note Arm Assy, Front Suspension Lower, LH
2012-10 → 2015-09 ended
GRX130,133 250G,350S ¥14,600
48640-30310 Arm Assy, Front Suspension Lower, LH
2016-11 → —
GRX135 ¥30,600
48640-30340 Arm Assy, Front Suspension Lower, LH
2016-11 → —
GRX130,133 ¥17,400
48640-53020 note Arm Assy, Front Suspension Lower, LH
2019-03 → —
GRX133 ¥14,600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
