Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

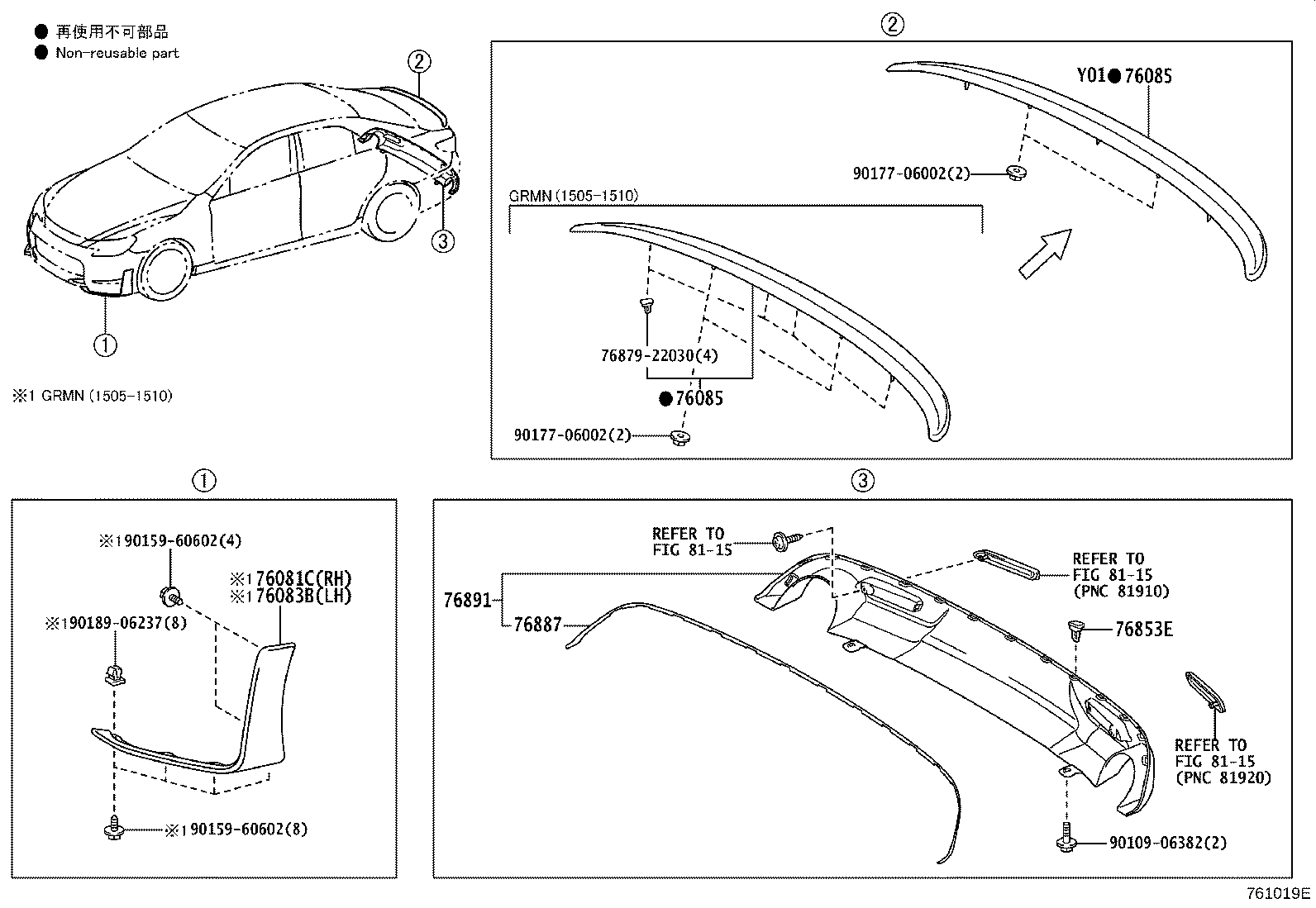

Exploded illustration 761019E 8115 — not listed in this catalogue 8115 — not listed in this catalogue 8115 — not listed in this catalogue 76081C — SPOILER, FRONT SIDE RH (1 parts) 76083B — SPOILER, FRONT SIDE LH (1 parts) 9010906382 — not listed in this catalogue 9017706002 — not listed in this catalogue 9015960602 — not listed in this catalogue 9015960602 — not listed in this catalogue 9018906237 — not listed in this catalogue 76891 — SPOILER, REAR NO.1 (7 parts) 76887 — SEAL, REAR SPOILER (7 parts) 76853E — RETAINER, REAR SPOILER, NO.1 (10 parts) 76085 — SPOILER SUB-ASSY, REAR (65 parts) 76085 — SPOILER SUB-ASSY, REAR (65 parts) 9017706002 — not listed in this catalogue 7687922030 — not listed in this catalogue
761019E · 7 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
91 parts on this figure
Part number Description Fitment Price
76081C — Spoiler, Front Side RH
76081-22020 note Spoiler, Front Side RH
2015-05 → 2015-10 ended
GRX133 350S ¥81,300
76083B — Spoiler, Front Side LH
76083-22010 note Spoiler, Front Side LH
2015-05 → 2015-10 ended
GRX133 350S ¥81,300
76085 — Spoiler Sub-assy, Rear
76085-22180-A0 note Spoiler Sub-assy, Rear
2009-10 → 2012-08 ended
GRX133 350S ¥43,800
76085-22180-A0 note Spoiler Sub-assy, Rear
2009-10 → 2012-08 ended
GRX130 ¥43,800
76085-22180-B0 note Spoiler Sub-assy, Rear
2009-10 → 2012-08 ended
GRX133 350S ¥43,800
76085-22180-B0 note Spoiler Sub-assy, Rear
2009-10 → 2012-08 ended
GRX130 ¥43,800
76085-22180-B1 note Spoiler Sub-assy, Rear
2009-10 → 2012-08 ended
GRX133 350S ¥52,600
76085-22180-B1 note Spoiler Sub-assy, Rear
2009-10 → 2012-08 ended
GRX130 ¥52,600
76085-22180-C0 note Spoiler Sub-assy, Rear
2009-10 → 2012-08 ended
GRX133 350S ¥43,800
76085-22180-C0 note Spoiler Sub-assy, Rear
2009-10 → 2012-08 ended
GRX130 ¥43,800
76085-22180-D0 note Spoiler Sub-assy, Rear
2009-10 → 2012-08 ended
GRX133 350S ¥52,600
76085-22180-D0 note Spoiler Sub-assy, Rear
2009-10 → 2012-08 ended
GRX130 ¥52,600
76085-22180-E0 note Spoiler Sub-assy, Rear
2009-10 → 2012-08 ended
GRX133 350S ¥52,600
76085-22180-E0 note Spoiler Sub-assy, Rear
2009-10 → 2012-08 ended
GRX130 ¥52,600
76085-22180-A0 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX133 350S ¥43,800
76085-22180-A0 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX130 250G ¥43,800
76085-22180-A0 note Spoiler Sub-assy, Rear
2014-07 → 2016-11 ended
GRX130 250G ¥43,800
76085-22180-B0 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX133 350S ¥43,800
76085-22180-B0 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX130 250G ¥43,800
76085-22180-B0 note Spoiler Sub-assy, Rear
2014-07 → 2016-11 ended
GRX130 250G ¥43,800
76085-22180-B1 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX133 350S ¥52,600
76085-22180-B1 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX130 250G ¥52,600
76085-22180-B1 note Spoiler Sub-assy, Rear
2014-07 → 2016-11 ended
GRX130 250G ¥52,600
76085-22180-C0 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX133 350S ¥43,800
76085-22180-C0 note Spoiler Sub-assy, Rear
2014-07 → 2016-11 ended
GRX130 250G ¥43,800
76085-22180-C0 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX130 250G ¥43,800
76085-22180-C0 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX130 250G ¥43,800
76085-22180-C0 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX133 350S ¥43,800
76085-22180-D1 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX130 250G ¥43,800
76085-22180-D1 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX133 350S ¥43,800
76085-22180-D1 note Spoiler Sub-assy, Rear
2014-07 → 2016-11 ended
GRX130 250G ¥43,800
76085-22180-F0 note Spoiler Sub-assy, Rear
2014-07 → 2016-11 ended
GRX130 250G ¥52,600
76085-22180-F0 note Spoiler Sub-assy, Rear
2014-07 → 2016-11 ended
GRX130 250G ¥52,600
76085-22180-J1 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX130 250G ¥52,600
76085-22180-J1 note Spoiler Sub-assy, Rear
2012-08 → 2016-11 ended
GRX133 350S ¥52,600
76085-22180-J1 note Spoiler Sub-assy, Rear
2014-07 → 2016-11 ended
GRX130 250G ¥52,600
76085-22200 note Spoiler Sub-assy, Rear
2015-05 → 2015-10 ended
GRX133 350S ¥206,000
76085-22180-A0 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX13# 250S,25RDS,35RDS ¥43,800
76085-22180-A0 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX130,133 25RDS,35RDS ¥43,800
76085-22180-B0 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX13# 250S,25RDS,35RDS ¥43,800
76085-22180-B0 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX130,133 25RDS,35RDS ¥43,800
76085-22180-C0 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX130,133 250S,35RDS ¥43,800
76085-22180-C0 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX130 25RDS ¥43,800
76085-22180-C0 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX135 250S;GRX130 25RDS ¥43,800
76085-22180-C0 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX130,133 250S,35RDS ¥43,800
76085-22180-C0 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX133 ¥43,800
76085-22180-C1 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX13# 250S,25RDS,35RDS ¥43,800
76085-22180-C1 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX130,133 25RDS,35RDS ¥43,800
76085-22180-D1 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX13# 250S,25RDS,35RDS ¥43,800
76085-22180-D1 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX130,133 25RDS,35RDS ¥43,800
76085-22180-J2 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX13# 250S,25RDS,35RDS ¥43,800
76085-22180-J2 note Spoiler Sub-assy, Rear
2016-11 → 2018-01 ended
GRX130,133 25RDS,35RDS ¥43,800
76085-22181-A0 note Spoiler Sub-assy, Rear
2018-02 → —
GRX13# 250S,25RDS,35RDS ¥43,800
76085-22181-A0 note Spoiler Sub-assy, Rear
2018-02 → —
GRX130,133 25RDS,35RDS ¥43,800
76085-22181-B0 note Spoiler Sub-assy, Rear
2018-02 → —
GRX13# 250S,25RDS,35RDS ¥43,800
76085-22181-B0 note Spoiler Sub-assy, Rear
2018-02 → —
GRX130,133 25RDS,35RDS ¥43,800
76085-22181-C0 note Spoiler Sub-assy, Rear
2018-02 → —
GRX130,133 250S,35RDS ¥43,800
76085-22181-C0 note Spoiler Sub-assy, Rear
2018-02 → —
GRX130,133 250S,35RDS ¥43,800
76085-22181-C0 note Spoiler Sub-assy, Rear
2018-02 → —
GRX130 25RDS ¥43,800
76085-22181-C0 note Spoiler Sub-assy, Rear
2018-02 → —
GRX133 ¥43,800
76085-22181-C0 note Spoiler Sub-assy, Rear
2018-02 → —
GRX135 250S;GRX130 25RDS ¥43,800
76085-22181-C1 note Spoiler Sub-assy, Rear
2018-02 → —
GRX13# 250S,25RDS,35RDS ¥43,800
76085-22181-C1 note Spoiler Sub-assy, Rear
2018-02 → —
GRX130,133 25RDS,35RDS ¥43,800
76085-22181-D1 note Spoiler Sub-assy, Rear
2018-02 → —
GRX13# 250S,25RDS,35RDS ¥43,800
76085-22181-D1 note Spoiler Sub-assy, Rear
2018-02 → —
GRX130,133 25RDS,35RDS ¥43,800
76085-22181-J2 note Spoiler Sub-assy, Rear
2018-02 → —
GRX13# 250S,25RDS,35RDS ¥43,800
76085-22181-J2 note Spoiler Sub-assy, Rear
2018-02 → —
GRX130,133 25RDS,35RDS ¥43,800
76853E — Retainer, Rear Spoiler, NO.1
75392-35200 Retainer, Rear Spoiler, NO.1
2009-10 → 2012-08 ended
GRX133 350S ¥130
75392-35200 note Retainer, Rear Spoiler, NO.1
2009-10 → 2012-08 ended
GRX130 ¥130
75392-35200 note Retainer, Rear Spoiler, NO.1
2009-10 → 2012-08 ended
GRX130 ¥130
75392-35200 Retainer, Rear Spoiler, NO.1
2012-08 → 2016-11 ended
GRX133 350S ¥130
75392-35200 note Retainer, Rear Spoiler, NO.1
2012-08 → 2016-11 ended
GRX130 250G ¥130
75392-35200 note Retainer, Rear Spoiler, NO.1
2012-08 → 2016-11 ended
GRX130 250G ¥130
75392-35200 note Retainer, Rear Spoiler, NO.1
2014-07 → 2016-11 ended
GRX130 250G ¥130
75392-35200 note Retainer, Rear Spoiler, NO.1
2014-07 → 2016-11 ended
GRX130 250G ¥130
75392-35200 Retainer, Rear Spoiler, NO.1
2016-11 → —
GRX13# 250S,25RDS,35RDS ¥130
75392-35200 note Retainer, Rear Spoiler, NO.1
2016-11 → —
GRX130,133 25RDS,35RDS ¥130
76887 — Seal, Rear Spoiler
76887-22030 note Seal, Rear Spoiler
2014-07 → 2016-11 ended
GRX130 250G ¥1,520
76887-22030 note Seal, Rear Spoiler
2014-07 → 2016-11 ended
GRX130 250G ¥1,520
76887-22030 note Seal, Rear Spoiler
2012-08 → 2016-11 ended
GRX130 250G ¥1,520
76887-22030 note Seal, Rear Spoiler
2012-08 → 2016-11 ended
GRX130 250G ¥1,520
76887-22030 Seal, Rear Spoiler
2012-08 → 2016-11 ended
GRX133 350S ¥1,520
76887-22030 Seal, Rear Spoiler
2016-11 → —
GRX13# 250S,25RDS,35RDS ¥1,520
76887-22030 note Seal, Rear Spoiler
2016-11 → —
GRX130,133 25RDS,35RDS ¥1,520
76891 — Spoiler, Rear NO.1
76891-22060 Spoiler, Rear NO.1
2012-08 → 2016-11 ended
GRX133 350S ¥31,200
76891-22060 note Spoiler, Rear NO.1
2012-08 → 2016-11 ended
GRX130 250G ¥31,200
76891-22060 note Spoiler, Rear NO.1
2012-08 → 2016-11 ended
GRX130 250G ¥31,200
76891-22060 note Spoiler, Rear NO.1
2014-07 → 2016-11 ended
GRX130 250G ¥31,200
76891-22060 note Spoiler, Rear NO.1
2014-07 → 2016-11 ended
GRX130 250G ¥31,200
76891-22060 Spoiler, Rear NO.1
2016-11 → —
GRX13# 250S,25RDS,35RDS ¥31,200
76891-22060 note Spoiler, Rear NO.1
2016-11 → —
GRX130,133 25RDS,35RDS ¥31,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
