Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

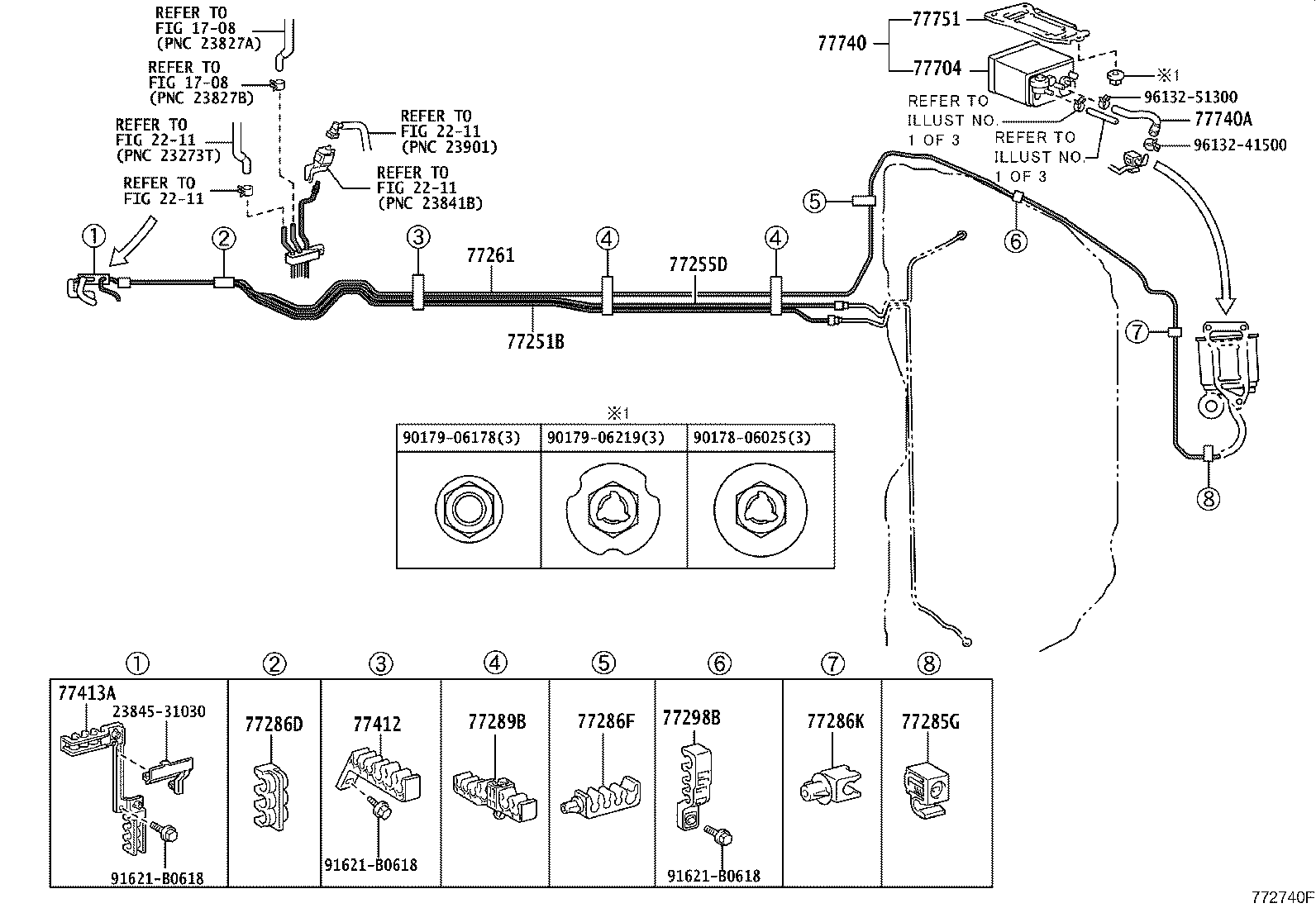

Exploded illustration 772740F 77261 — TUBE SUB-ASSY, FUEL EMISSION (4 parts) 77251B — TUBE, FUEL MAIN (4 parts) 77255D — TUBE, FUEL RETURN (4 parts) 9613251300 — not listed in this catalogue 9613241500 — not listed in this catalogue 77740A — HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) (3 parts) 77413A — SUPPORT, FUEL TUBE GROMMET, NO.3 (3 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (3 parts) 77412 — SUPPORT, FUEL TUBE GROMMET, NO.2 (3 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (3 parts) 77286F — CLAMP, FUEL TUBE, NO.2 (3 parts) 77298B — CLAMP, FUEL TUBE, NO.4 (3 parts) 77286K — CLAMP, FUEL TUBE, NO.2 (3 parts) 77285G — CLAMP, FUEL TUBE, NO.1 (3 parts) 91621B0618 — not listed in this catalogue 2384531030 — not listed in this catalogue 91621B0618 — not listed in this catalogue 91621B0618 — not listed in this catalogue 9017906178 — not listed in this catalogue 9017906219 — not listed in this catalogue 9017806025 — not listed in this catalogue 77740 — CANISTER ASSY, CHARCOAL (3 parts) 77751 — BRACKET, CHARCOAL CANISTER BASE (3 parts) 77704 — CANISTER SUB-ASSY, CHARCOAL (3 parts) 2211 — not listed in this catalogue 1708 — not listed in this catalogue 2211 — not listed in this catalogue 1708 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue
772740F · 15 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-22540 Tube, Fuel Main
2009-10 → 2012-08 ended
GRX13# ¥3,940
77251-22540 Tube, Fuel Main
2012-08 → 2016-11 ended
GRX13# ¥3,940
77251-22540 Tube, Fuel Main
2016-11 → 2018-04 ended
GRX13# ¥3,940
77251-22541 Tube, Fuel Main
2018-04 → —
GRX13# ¥3,570
77255D — Tube, Fuel Return
77255-22430 Tube, Fuel Return
2009-10 → 2012-08 ended
GRX13# ¥3,780
77255-22430 Tube, Fuel Return
2012-08 → 2016-11 ended
GRX13# ¥3,780
77255-22430 Tube, Fuel Return
2016-11 → 2018-04 ended
GRX13# ¥3,780
77255-22431 Tube, Fuel Return
2018-04 → —
GRX13# ¥3,470
77261 — Tube Sub-assy, Fuel Emission
77261-30310 Tube Sub-assy, Fuel Emission
2009-10 → 2012-08 ended
GRX13# ¥6,100
77261-30310 Tube Sub-assy, Fuel Emission
2012-08 → 2016-11 ended
GRX13# ¥6,100
77261-30310 Tube Sub-assy, Fuel Emission
2016-11 → 2018-04 ended
GRX13# ¥6,100
77261-30311 Tube Sub-assy, Fuel Emission
2018-04 → —
GRX13# ¥5,700
77285G — Clamp, Fuel Tube, NO.1
77285-50030 Clamp, Fuel Tube, NO.1
2009-10 → 2012-08 ended
GRX13# ¥370
77285-50030 Clamp, Fuel Tube, NO.1
2012-08 → 2016-11 ended
GRX13# ¥370
77285-50030 Clamp, Fuel Tube, NO.1
2016-11 → —
GRX13# ¥370
77286D — Clamp, Fuel Tube, NO.2
77286-20170 Clamp, Fuel Tube, NO.2
2009-10 → 2012-08 ended
GRX13# ¥220
77286-20170 Clamp, Fuel Tube, NO.2
2012-08 → 2016-11 ended
GRX13# ¥220
77286-20170 Clamp, Fuel Tube, NO.2
2016-11 → —
GRX13# ¥220
77286F — Clamp, Fuel Tube, NO.2
77286-30110 Clamp, Fuel Tube, NO.2
2009-10 → 2012-08 ended
GRX13# ¥410
77286-30110 Clamp, Fuel Tube, NO.2
2012-08 → 2016-11 ended
GRX13# ¥410
77286-30110 Clamp, Fuel Tube, NO.2
2016-11 → —
GRX13# ¥410
77286K — Clamp, Fuel Tube, NO.2
77286-30120 Clamp, Fuel Tube, NO.2
2009-10 → 2012-08 ended
GRX13# ¥220
77286-30120 Clamp, Fuel Tube, NO.2
2012-08 → 2016-11 ended
GRX13# ¥220
77286-30120 Clamp, Fuel Tube, NO.2
2016-11 → —
GRX13# ¥220
77289B — Clamp, Fuel Tube, NO.3
77289-30060 Clamp, Fuel Tube, NO.3
2009-10 → 2012-08 ended
GRX13# ¥590
77289-30060 Clamp, Fuel Tube, NO.3
2012-08 → 2016-11 ended
GRX13# ¥590
77289-30060 Clamp, Fuel Tube, NO.3
2016-11 → —
GRX13# ¥590
77298B — Clamp, Fuel Tube, NO.4
77298-30150 Clamp, Fuel Tube, NO.4
2009-10 → 2012-08 ended
GRX13# ¥480
77298-30150 Clamp, Fuel Tube, NO.4
2012-08 → 2016-11 ended
GRX13# ¥480
77298-30150 Clamp, Fuel Tube, NO.4
2016-11 → —
GRX13# ¥480
77412 — Support, Fuel Tube Grommet, NO.2
77412-30060 Support, Fuel Tube Grommet, NO.2
2009-10 → 2012-08 ended
GRX13# ¥480
77412-30060 Support, Fuel Tube Grommet, NO.2
2012-08 → 2016-11 ended
GRX13# ¥480
77412-30060 Support, Fuel Tube Grommet, NO.2
2016-11 → —
GRX13# ¥480
77413A — Support, Fuel Tube Grommet, NO.3
77413-30071 Support, Fuel Tube Grommet, NO.3
2009-10 → 2012-08 ended
GRX13# ¥1,770
77413-30071 Support, Fuel Tube Grommet, NO.3
2012-08 → 2016-11 ended
GRX13# ¥1,770
77413-30071 Support, Fuel Tube Grommet, NO.3
2016-11 → —
GRX13# ¥1,770
77704 — Canister Sub-assy, Charcoal
77704-30200 Canister Sub-assy, Charcoal
2009-10 → 2012-08 ended
GRX13# ¥7,200
77704-30200 Canister Sub-assy, Charcoal
2012-08 → 2016-11 ended
GRX13# ¥7,200
77704-30200 Canister Sub-assy, Charcoal
2016-11 → —
GRX13# ¥7,200
77740 — Canister Assy, Charcoal
77740-30320 Canister Assy, Charcoal
2009-10 → 2012-08 ended
GRX13# ¥9,900
77740-30320 Canister Assy, Charcoal
2012-08 → 2016-11 ended
GRX13# ¥9,900
77740-30320 Canister Assy, Charcoal
2016-11 → —
GRX13# ¥9,900
77740A — Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
23829-46290 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
2009-10 → 2012-08 ended
GRX13# ¥870
23829-46290 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
2012-08 → 2016-11 ended
GRX13# ¥870
23829-46290 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
2016-11 → —
GRX13# ¥870
77751 — Bracket, Charcoal Canister Base
77751-30150 Bracket, Charcoal Canister Base
2009-10 → 2012-08 ended
GRX13# ¥960
77751-30150 Bracket, Charcoal Canister Base
2012-08 → 2016-11 ended
GRX13# ¥960
77751-30150 Bracket, Charcoal Canister Base
2016-11 → —
GRX13# ¥960
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
