Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

36 part groups · 4 illustrations

Illustrations

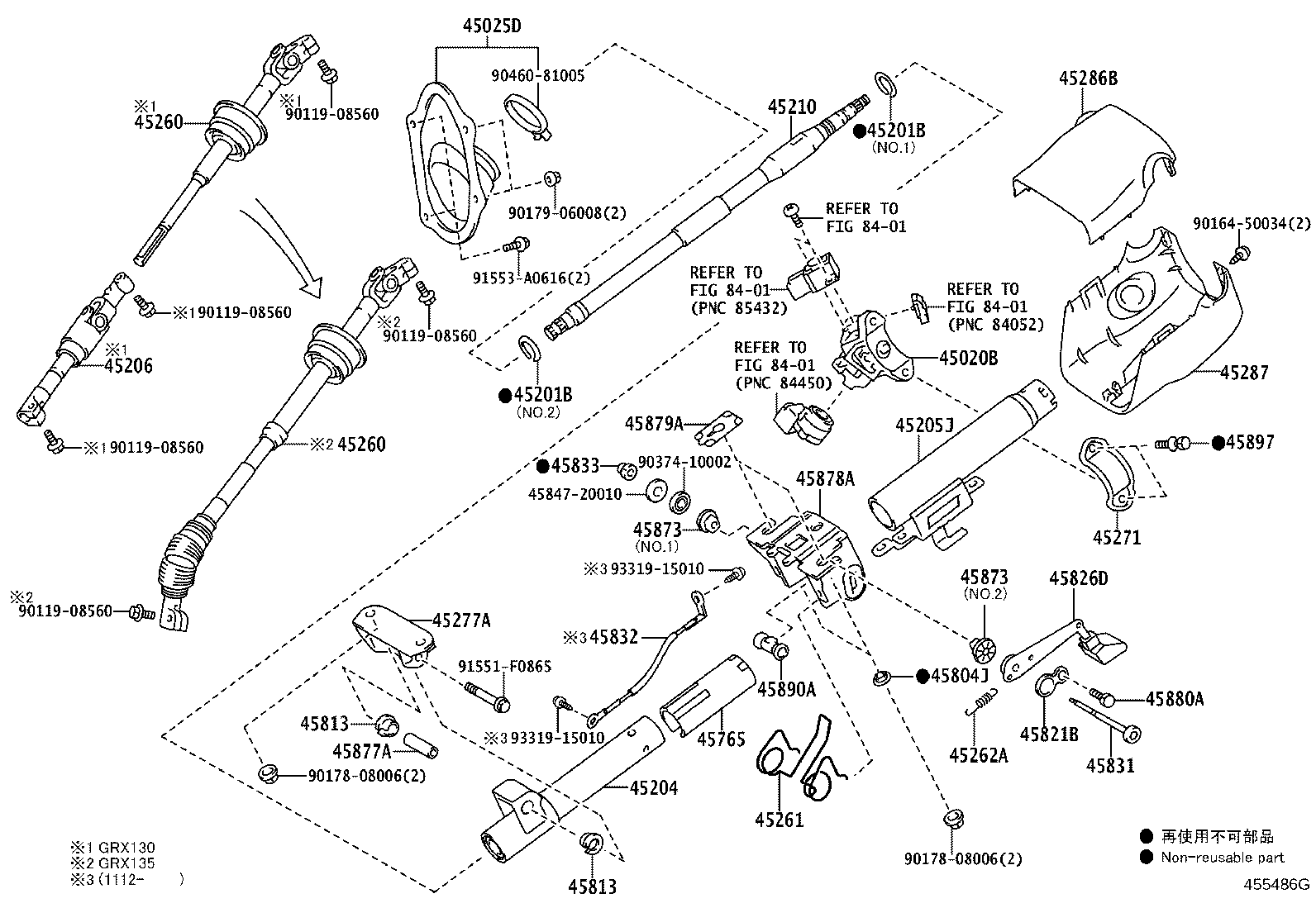

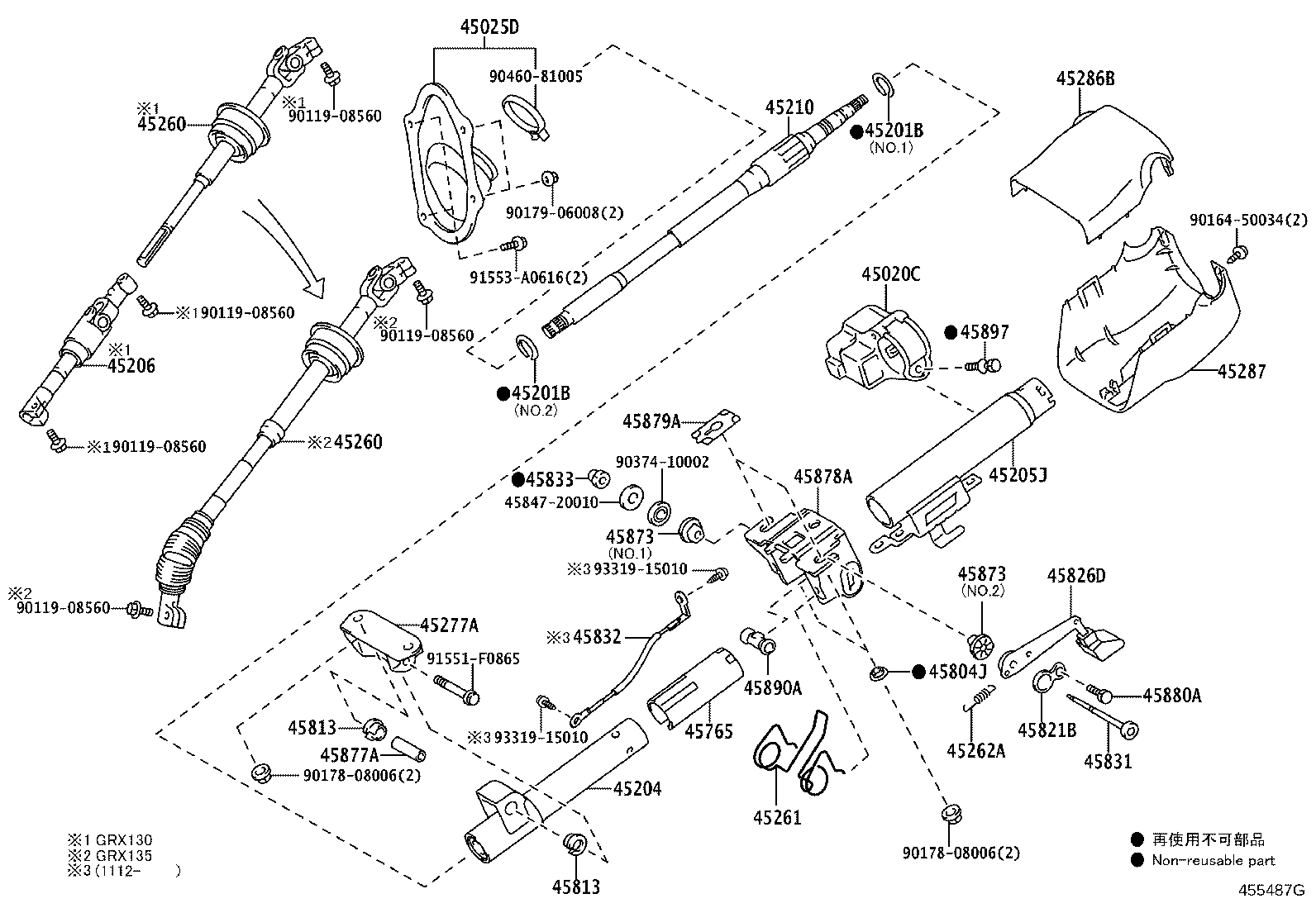

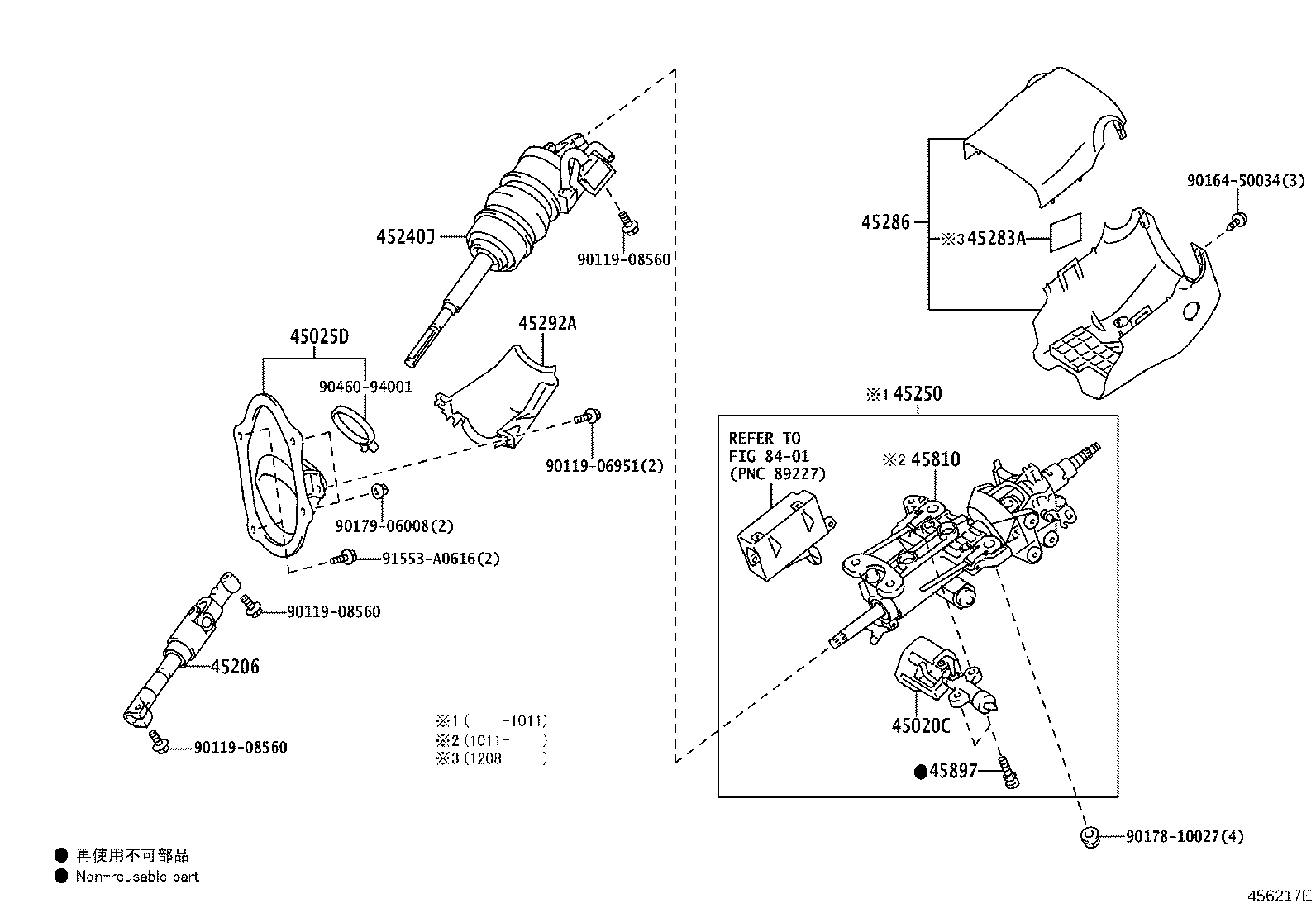

Figure 455485J 455485J 2009-10 → — Figure 456217E 456217E 2009-10 → 2016-11 Figure 455486G 455486G 2009-10 → — Figure 455487G 455487G 2009-10 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45204 Tube Assy, Steering Column, Lower
45205J Tube Sub-assy, Steering Column, Upper
45206 Yoke Sub-assy, Steering Sliding W/Shaft
45210 Shaft Assy, Steering Main
45240J Actuator Assy, Steering
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45261 Spring, Tilt Steering Jump UP
45262A Spring, Tilt Lever Return
45271 Clamp, Steering Column, Upper
45277A Support, Tilt Steering
45283A Plate, Beam Change & Turn Signal Caution
45286 Cover, Steering Column
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45292A Cover, Main Shaft Lower Dust
45765 Guide, Telescopic Steering
45804J Collar Sub-assy, Break Away
45810 Gear Assy, Tilt Steering, W/Motor
45813 Collar, Tilt Steering Support, NO.1
45821B Reinforce, Tilt Steering Support, NO.1
45826D Lever, Steering Telescopic
45831 Bolt, Tilt Lever Lock, NO.1
45832 Cable, Tilt Steering Support Bond
45833 Nut, Tilt Steering Adjusting, NO.1
45873 Stopper, Steering Column Tube
45877A Spacer, Steering Column Bracket
45878A Bracket, Break Away
45879A Capsule, Break Away
45880A Bolt(FOR STEERING TILT LEVER)
45890A Pawl Assy, Tilt Steering
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
