Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

12 part groups · 2 illustrations

Illustrations

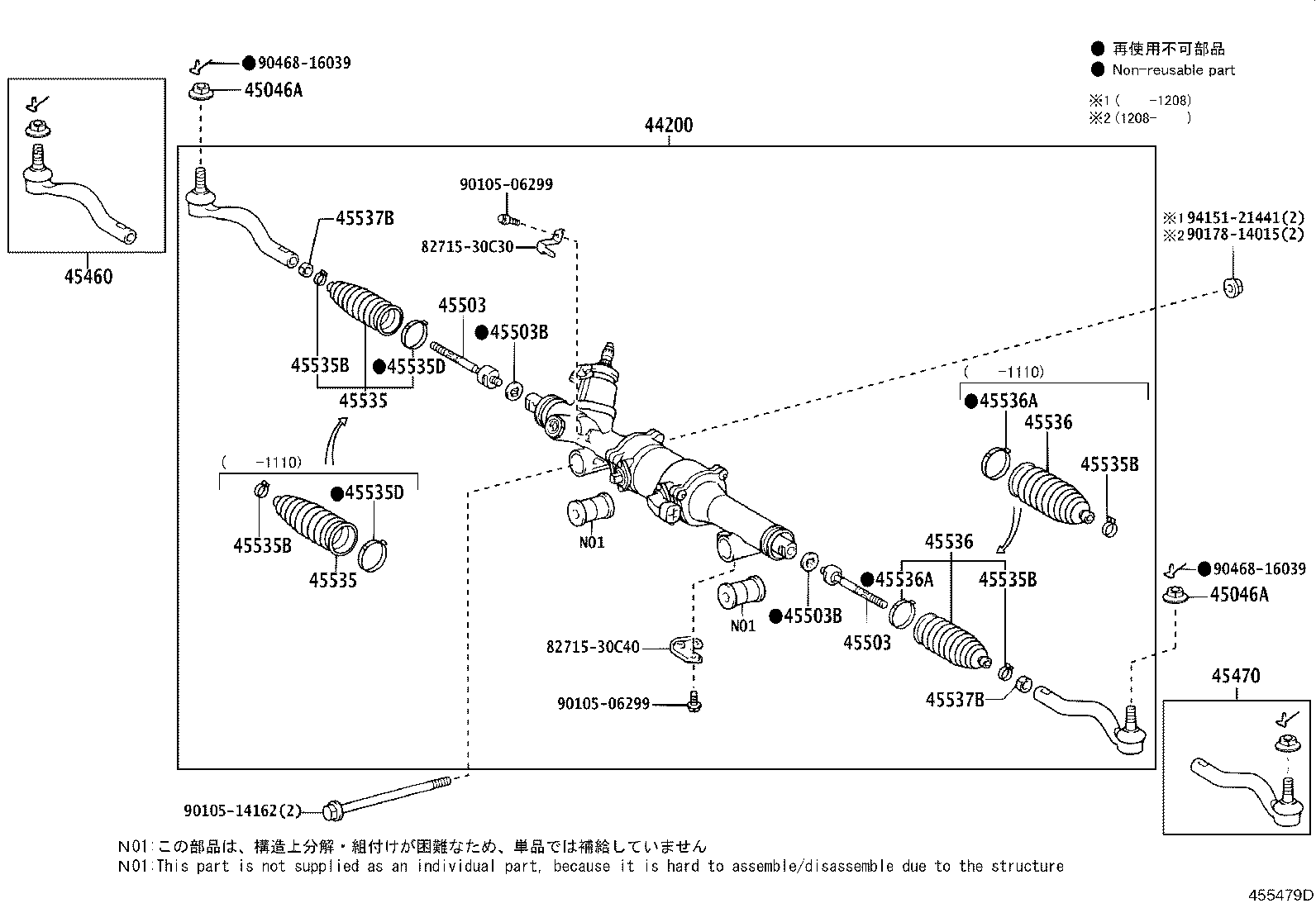

Figure 455478D 455478D 2009-10 → — Figure 455479D 455479D 2009-10 → —

Part groups

PNCDescription
44200 Link Assy, Power Steering
45046A Nut, Castle(FOR TIE ROD END)
45460 Rod Assy, Tie, RH
45470 Rod Assy, Tie, LH
45503 End Sub-assy, Steering Rack
45503B Washer, Claw(FOR STEERING RACK END)
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
45537B Nut, Rack End Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
