Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

11 part groups · 3 illustrations

Illustrations

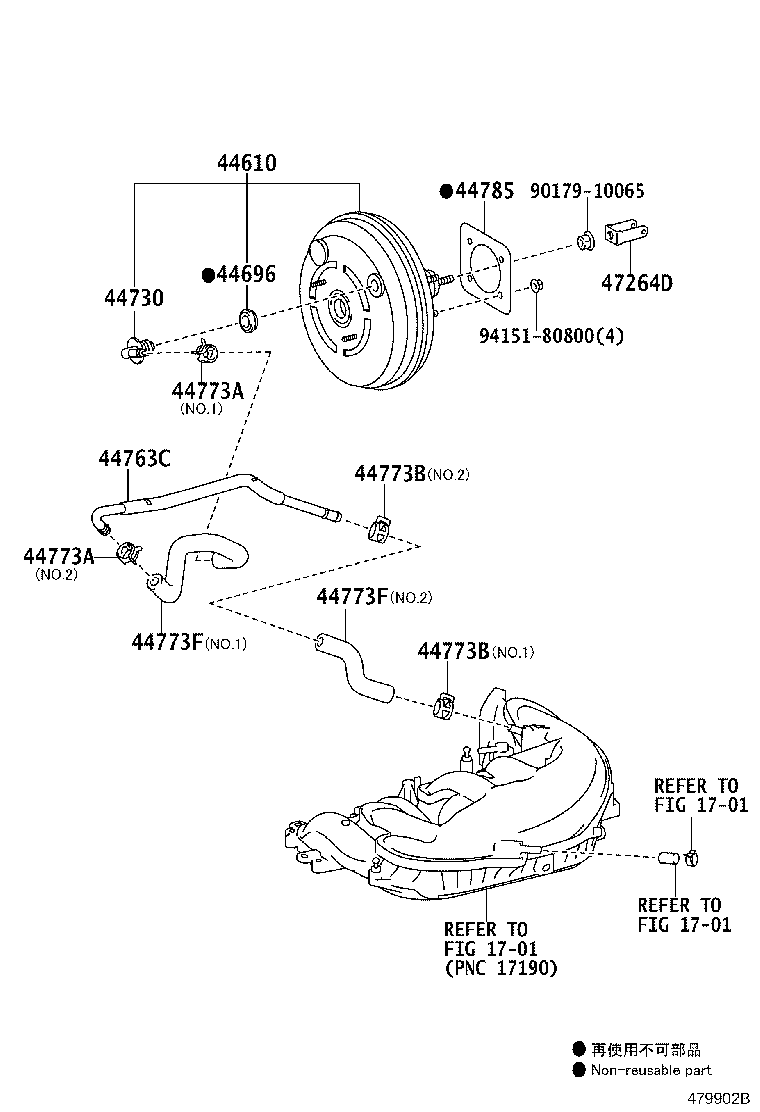

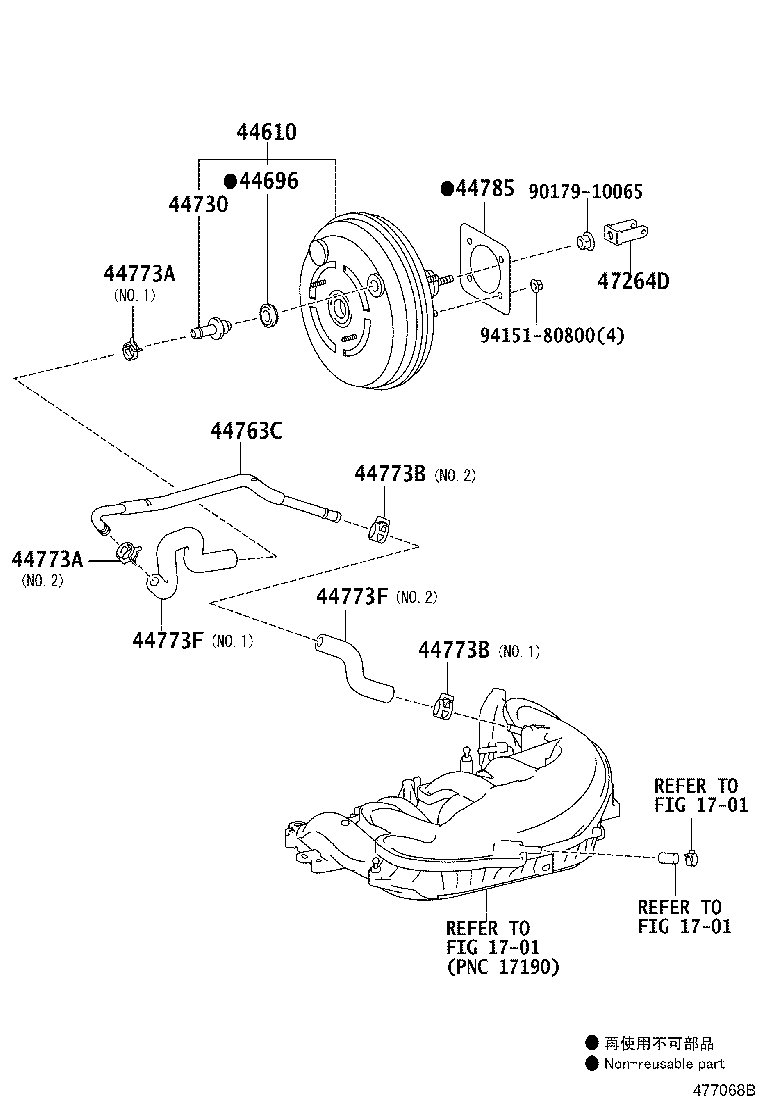

Figure 477067B 477067B 2009-10 → — Figure 477068B 477068B 2009-10 → — Figure 479902B 479902B 2015-05 → 2015-10

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44763C Tube, Hose TO Hose, NO.2
44773A Clip, NO.1(FOR VACUUM HOSE, NO.2)
44773B Clip, NO.2(FOR VACUUM HOSE, NO.2)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44773H Clamp(FOR UNION TO CHECK VALVE HOSE)
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
