Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

29 part groups · 2 illustrations

Illustrations

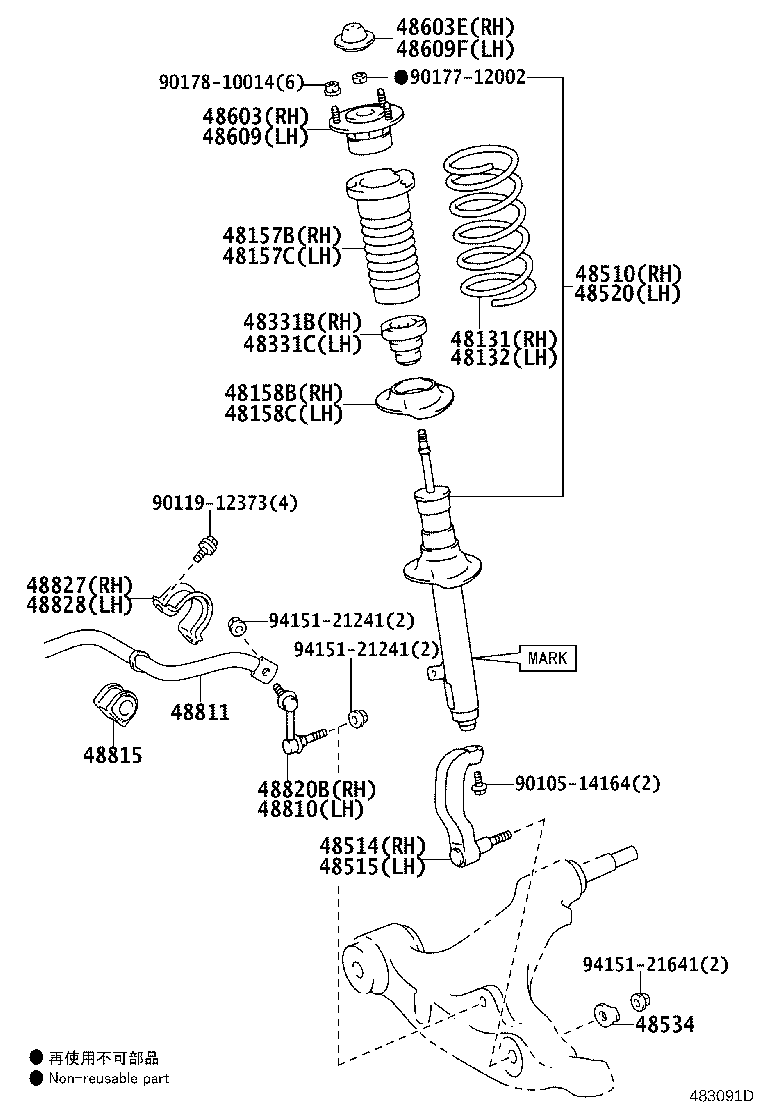

Figure 483092F 483092F 2009-10 → — Figure 483091D 483091D 2009-10 → —

Part groups

PNCDescription
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48157B Insulator, Front Coil Spring, Upper RH
48157C Insulator, Front Coil Spring, Upper LH
48158B Insulator, Front Coil Spring, Lower RH
48158C Insulator, Front Coil Spring, Lower LH
48331B Bumper, Front Spring, RH
48331C Bumper, Front Spring, LH
48510 Absorber Assy, Shock, Front RH
48514 Bracket, Front Shock Absorber, Lower RH
48515 Bracket, Front Shock Absorber, Lower LH
48519B Bracket, Actuator Support, Front RH
48519C Bracket, Actuator Support, Front LH
48520 Absorber Assy, Shock, Front LH
48534 Plate, Front Shock Absorber Upper Bracket
48553 Cap, Shock Absorber, Upper
48603 Support Sub-assy, Front Suspension, RH
48603E Plug, Hole(FOR FRONT SUSPENSION SUPPORT RH)
48609 Support Sub-assy, Front Suspension, LH
48609F Plug, Hole(FOR FRONT SUSPENSION SUPPORT LH)
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48820B Link Assy, Front Stabilizer, RH
48824A Bracket, Front Stabilizer, NO.1 RH
48827 Bracket, Front Stabilizer, NO.2 RH
48828 Bracket, Front Stabilizer, NO.2 LH
48829A Bracket, Front Stabilizer, NO.1 LH
53729H Reinforcement, Front Spring Support, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
