Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

47 part groups · 8 illustrations

Illustrations

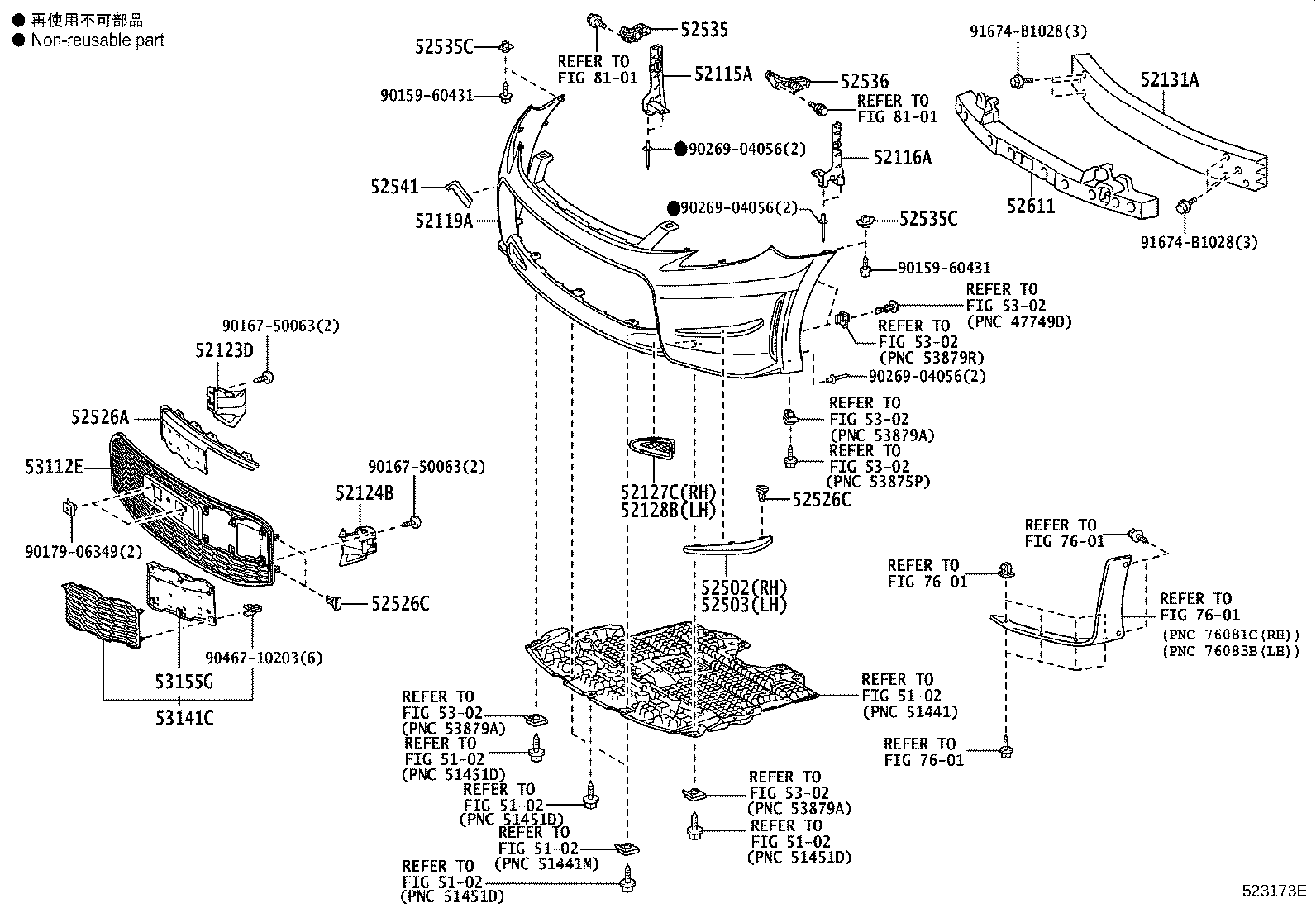

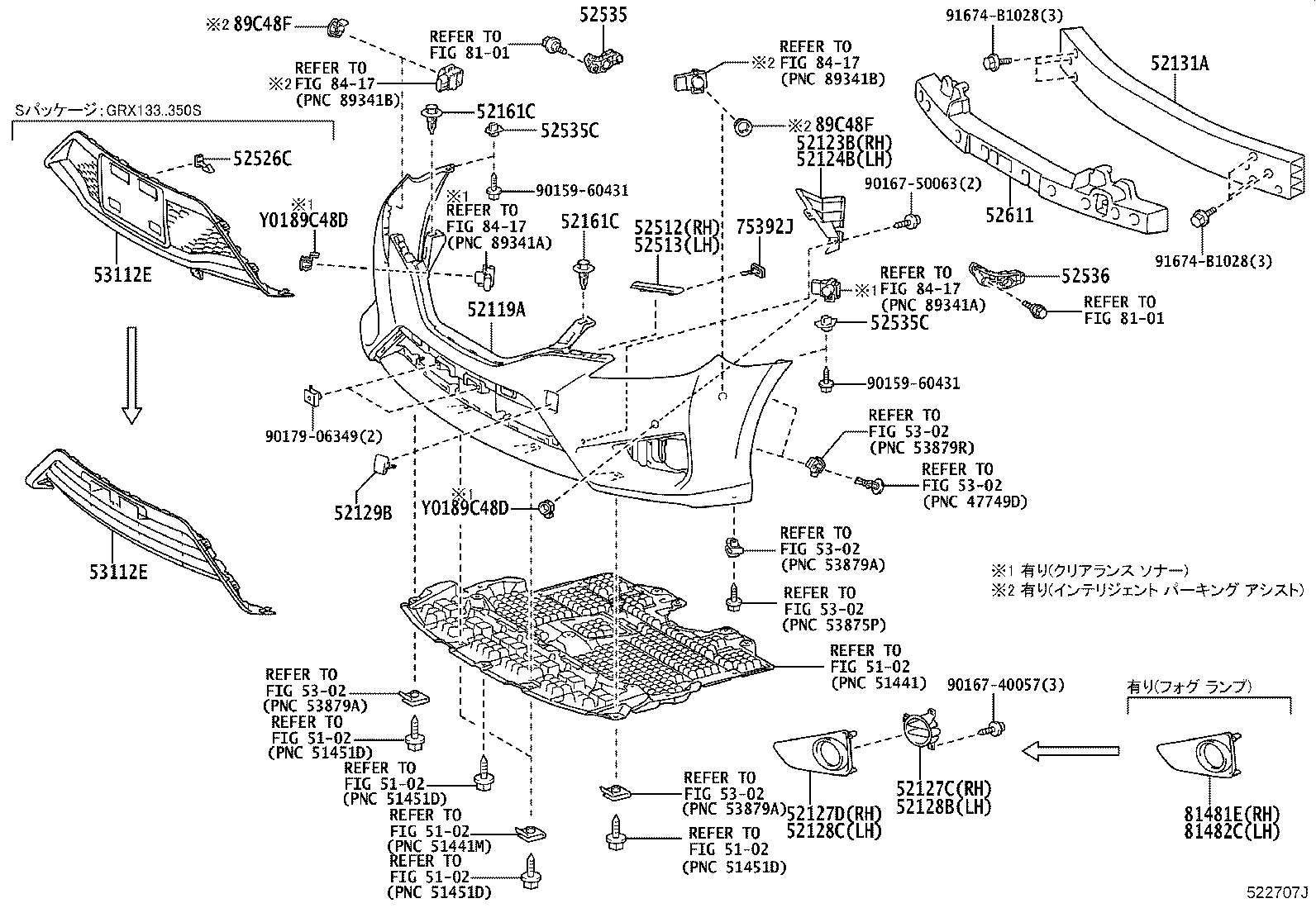

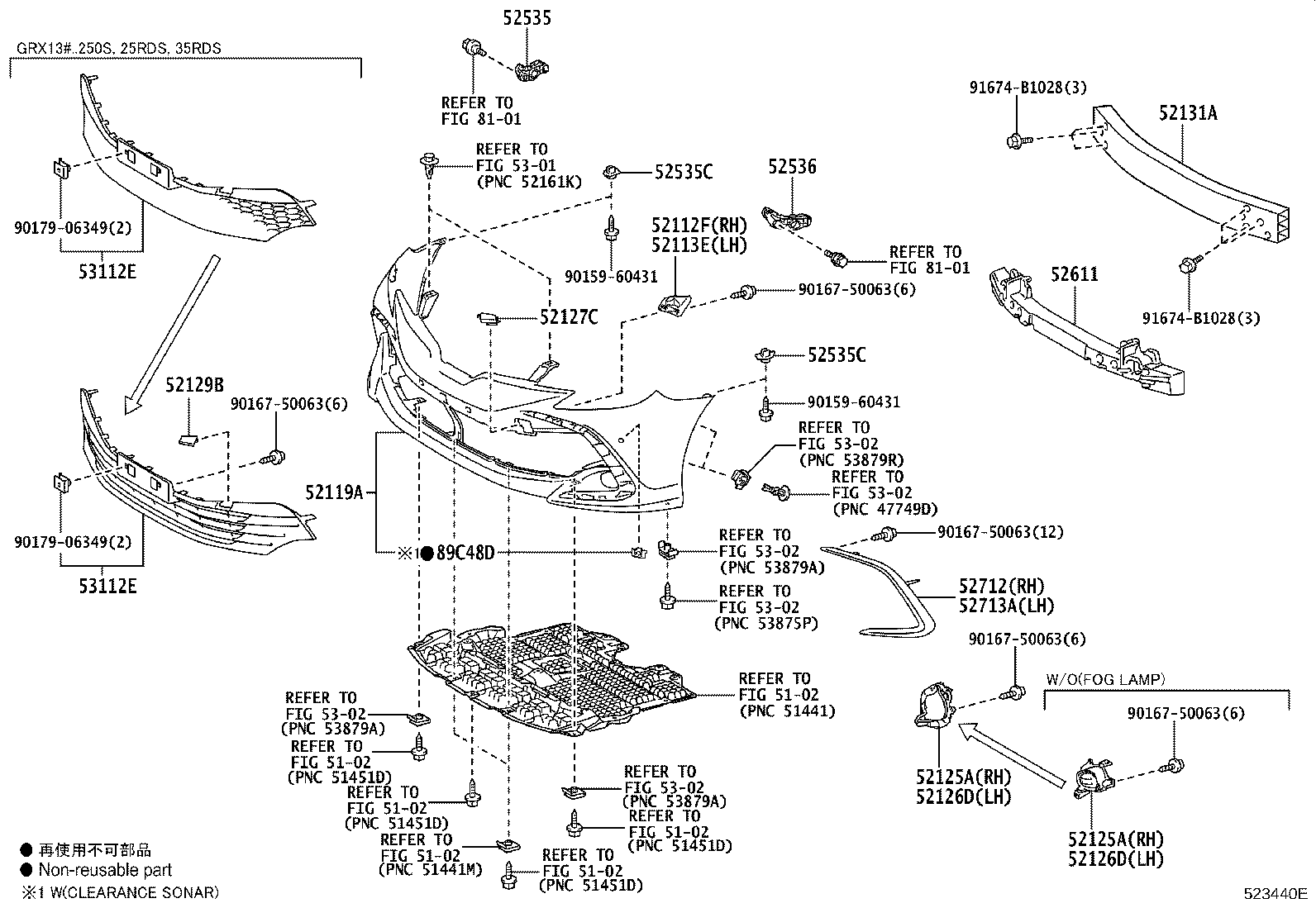

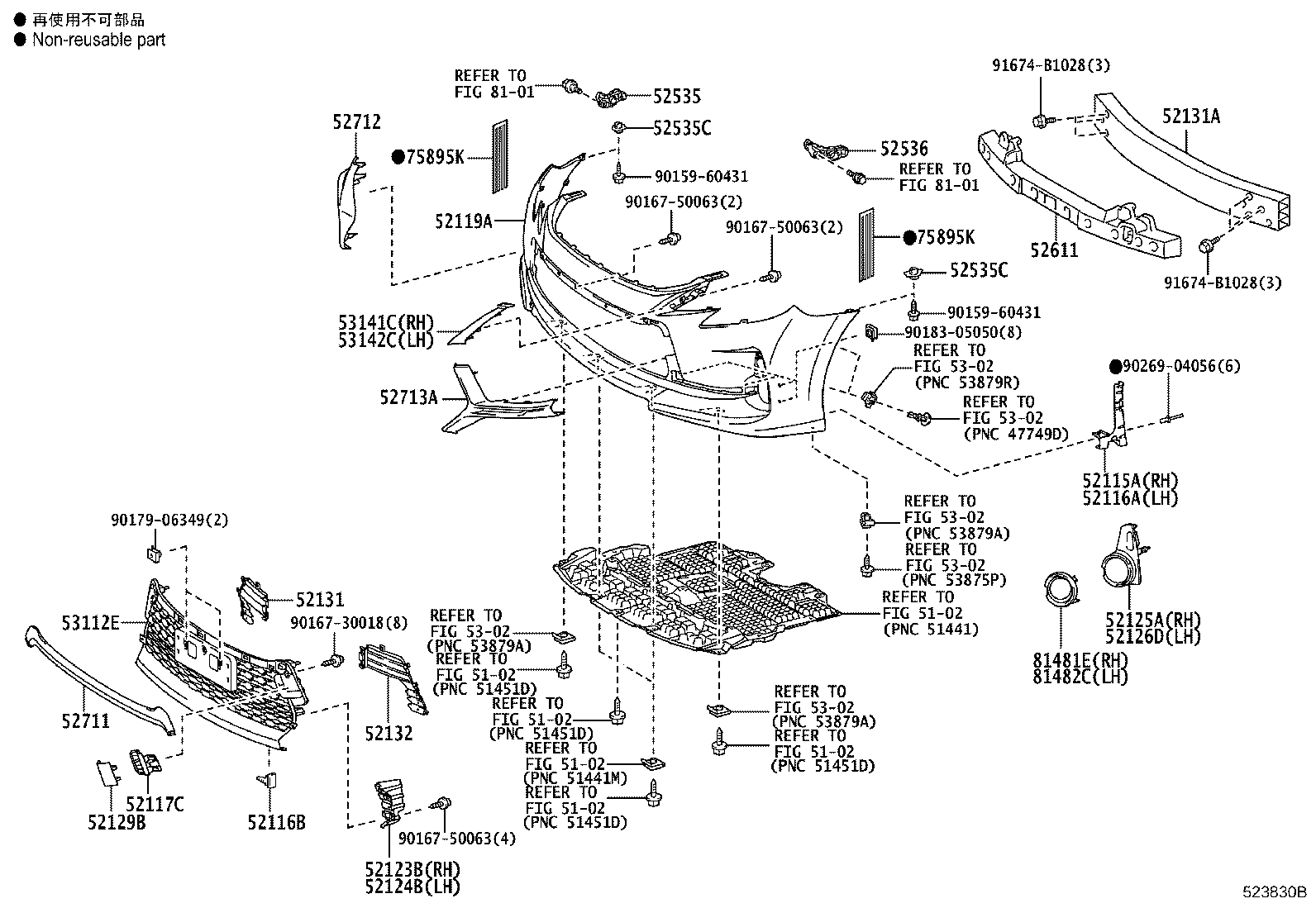

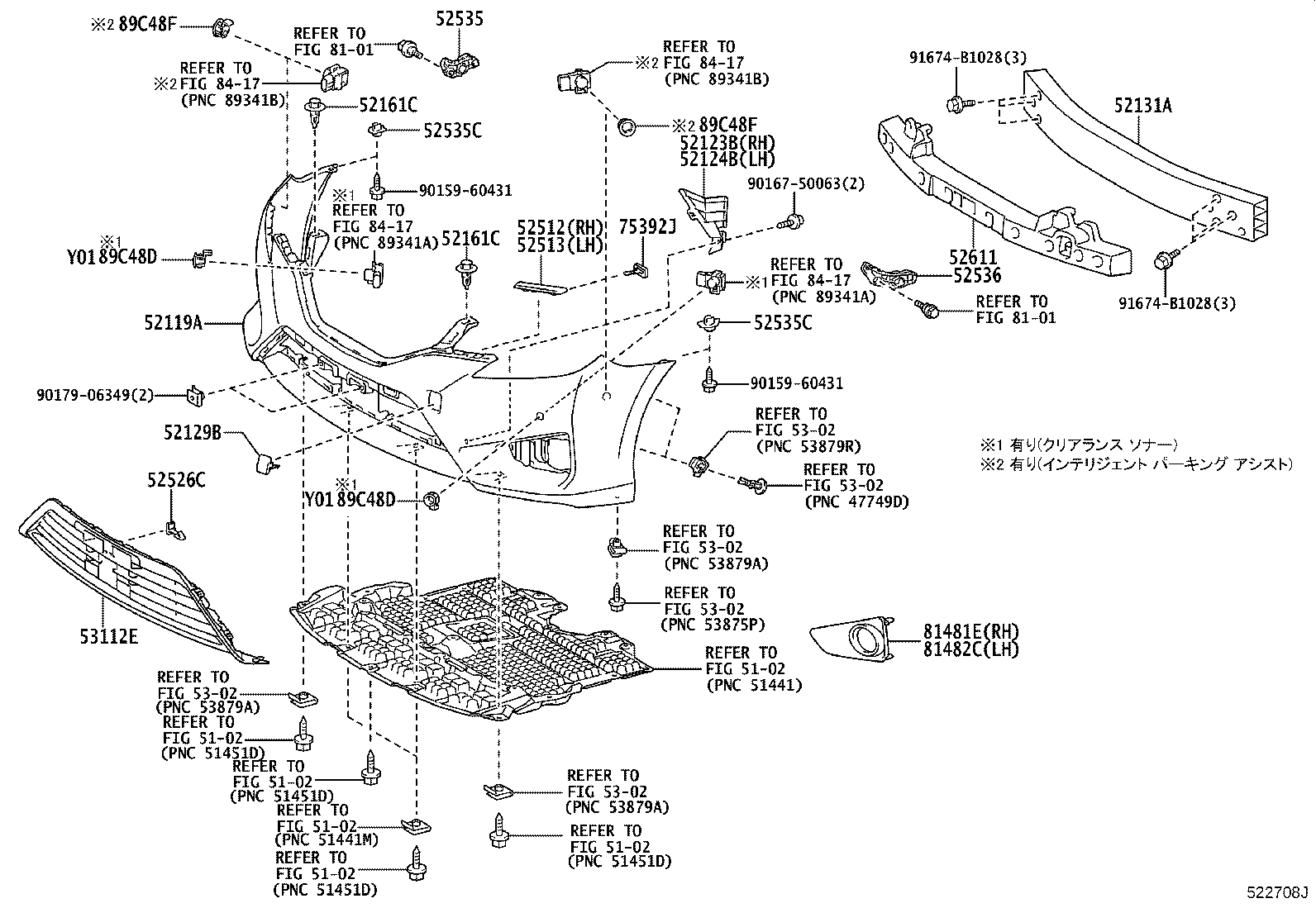

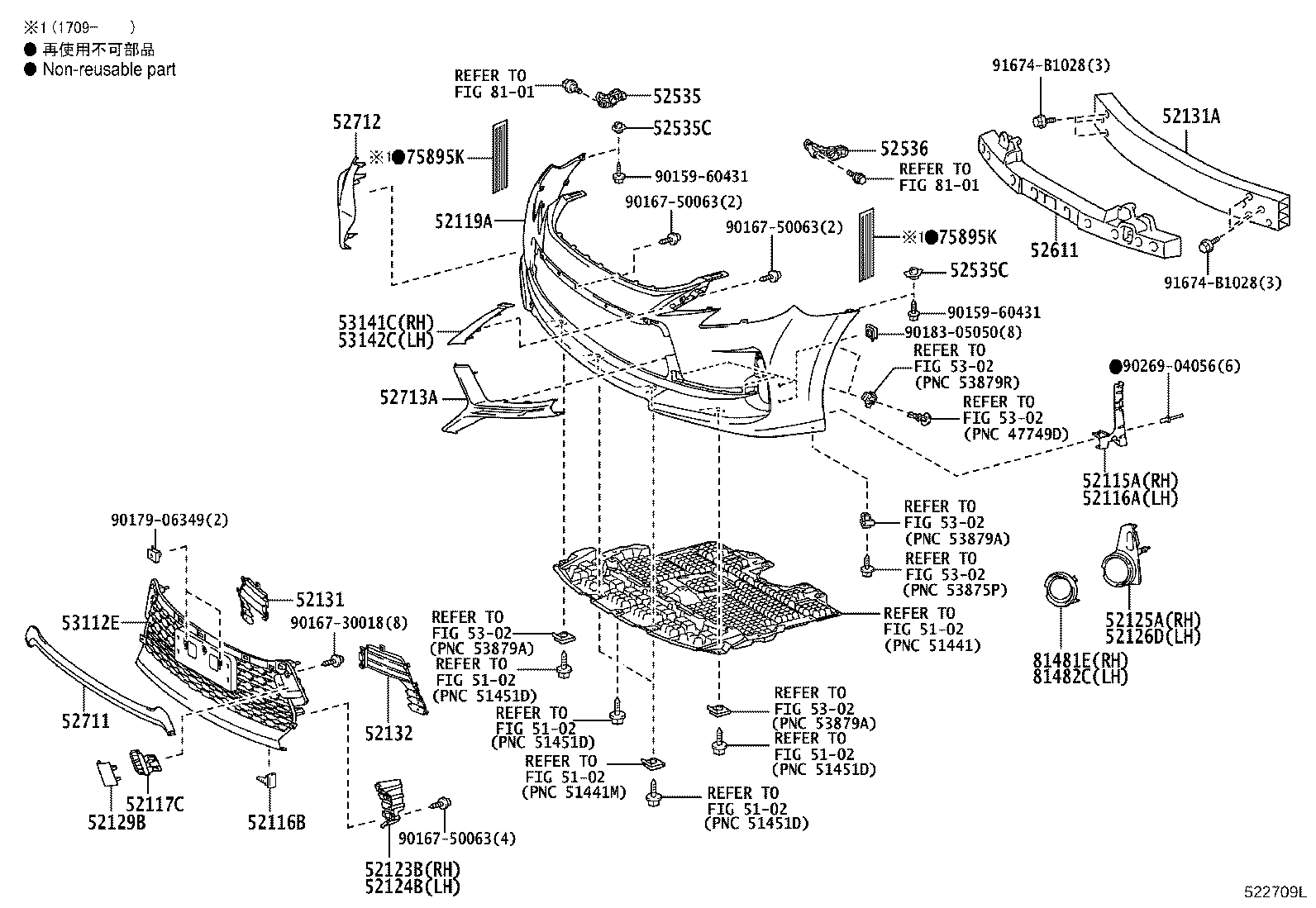

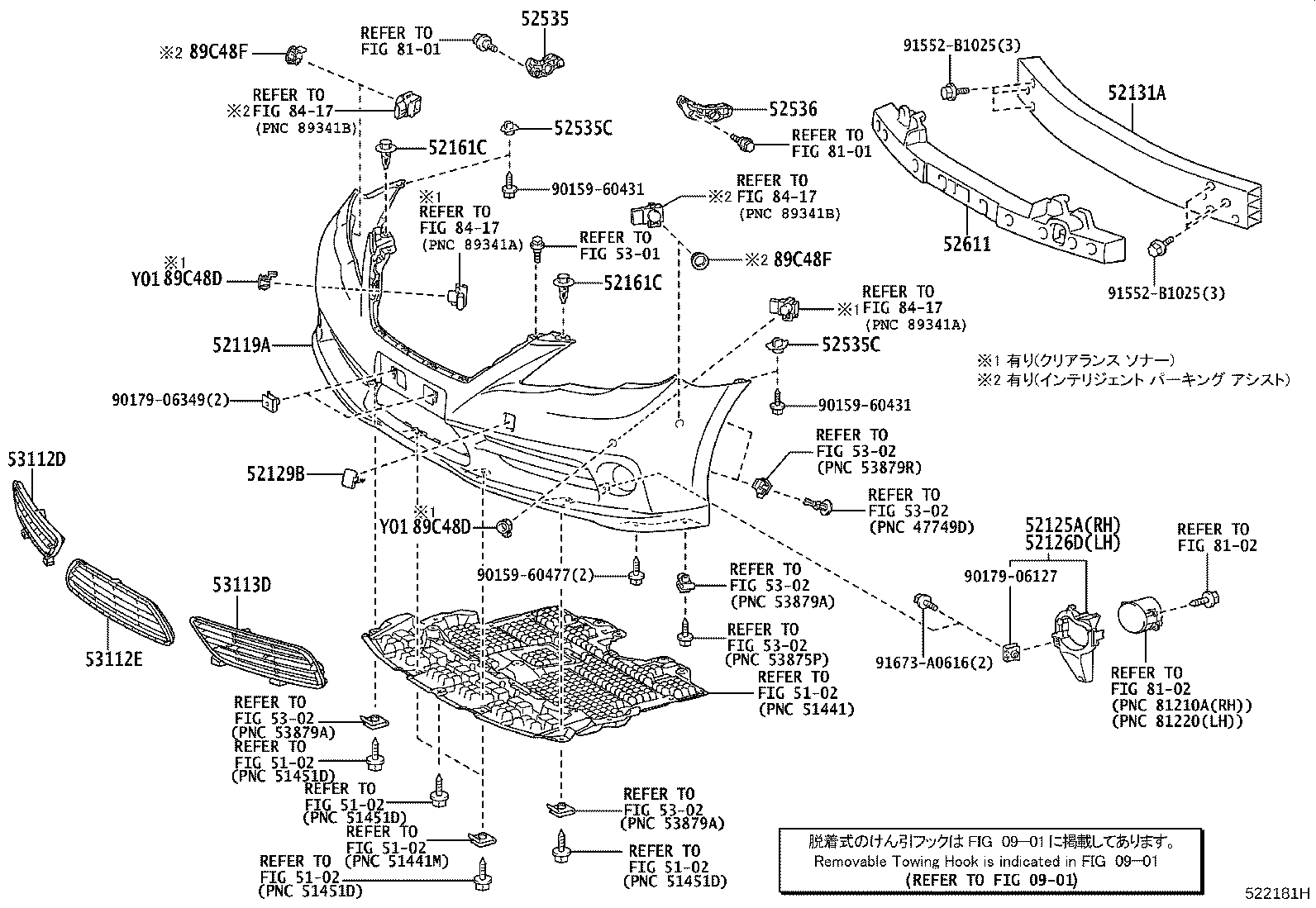

Figure 522180F 522180F 2009-10 → 2012-08 Figure 522181H 522181H 2009-10 → 2012-08 Figure 522707J 522707J 2012-08 → 2016-11 Figure 522708J 522708J 2012-08 → 2016-11 Figure 522709L 522709L 2012-10 → — Figure 523173E 523173E 2015-05 → 2015-10 Figure 523440E 523440E 2016-11 → — Figure 523830B 523830B 2019-03 → —

Part groups

PNCDescription
52112F Extension, Front Bumper, RH
52113E Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52116B Retainer, Front Bumper
52117C Retainer, Front Bumper Extension, NO.2
52119A Cover, Front Bumper
52123B Plate, Front Bumper Reinforcement, RH
52123D Plate, Front Bumper Reinforcement
52124B Plate, Front Bumper Reinforcement, LH
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131 Retainer, Front Bumper Side, RH
52131A Reinforcement, Front Bumper
52132 Retainer, Front Bumper Side, LH
52161C Piece, Front Bumper
52502 Extension Sub-assy, Front Bumper, RH
52503 Extension Sub-assy, Front Bumper, LH
52512 Filler, Front Bumper, RH
52513 Filler, Front Bumper, LH
52526A Retainer, Front Bumper, Lower NO.1
52526C Retainer, Front Bumper, Lower
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52541 Protector, Front Bumper
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53112D Grille, Radiator, Lower RH
53112E Grille, Radiator, Lower NO.1
53113D Grille, Radiator, Lower LH
53141C Garnish, Radiator Grille
53142C Garnish, Radiator Grille, NO.2
53155G Seal, Radiator Grille
75392J Retainer, Outside Moulding
75895K Tape, Moulding, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
