Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

9 part groups · 3 illustrations

Illustrations

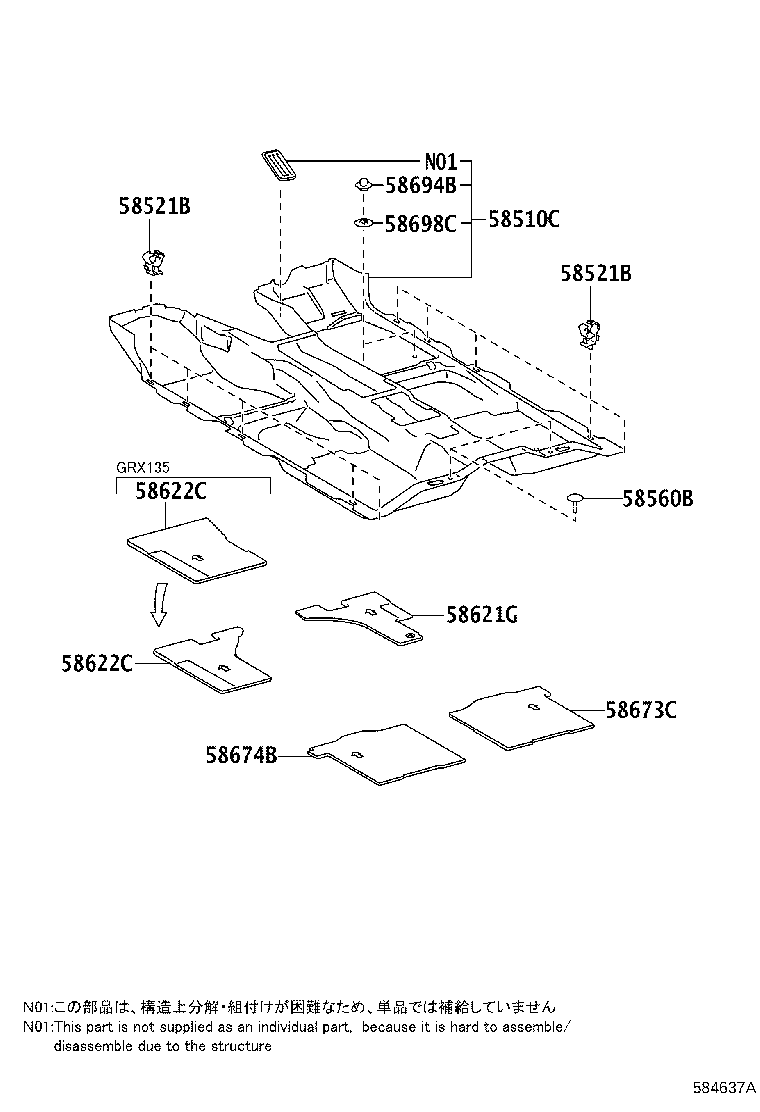

Figure 583721A 583721A 2009-10 → 2012-08 Figure 584637A 584637A 2012-08 → — Figure 586669A 586669A 2019-03 → —

Part groups

PNCDescription
58510C Carpet Assy, Front Floor, Front
58521B Hook, Floor Carpet
58560B Clip(FOR FLOOR CARPET, REAR)
58621G Pad, Front Floor Silencer, RH
58622C Pad, Front Floor Silencer, LH
58673C Pad, Rear Floor Silencer, NO.1
58674B Pad, Rear Floor Silencer, NO.2
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
