Toyota Mark X
2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan
Supported model
Data version 2020-01

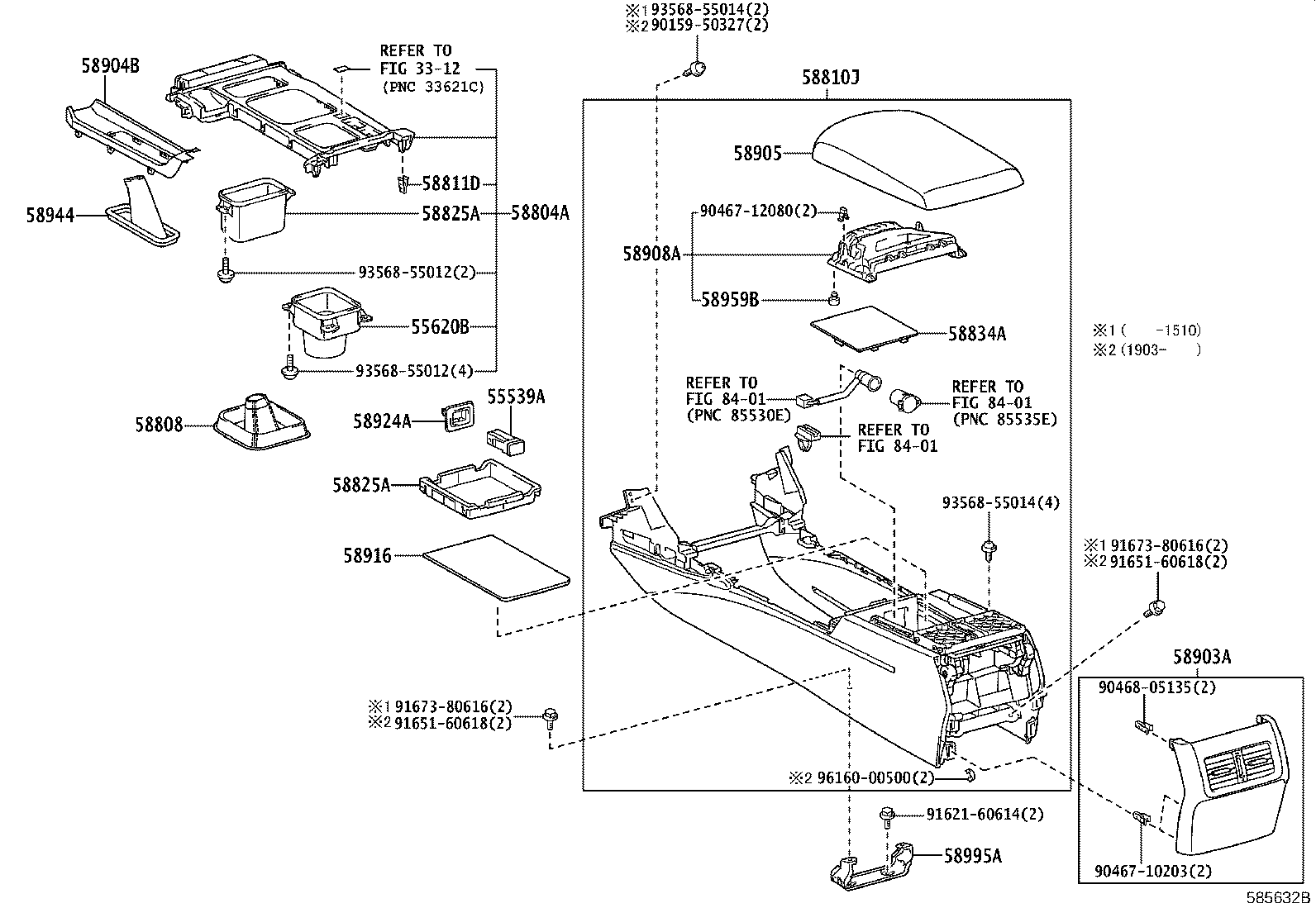

Console Box & Bracket
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55440C | Box Assy, Instrument Panel |
| 55539A | Cover, Spare Switch Hole |
| 55618A | Holder, Console Box Cup |
| 55620B | Holder, Instrument Panel Cup |
| 58804A | Panel Sub-assy, Console, Upper |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58810J | Box Assy, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58825A | Pocket, Console Box |
| 58834A | Cover, Console, Lower |
| 58843 | Bezel, Shifting Hole |
| 58903A | Panel Sub-assy, Console Rear End |
| 58904B | Cover Sub-assy, Parking Brake Hole |
| 58905 | Door Sub-assy, Console Compartment |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58916 | Mat, Box Bottom |
| 58924A | Panel, Console Rear End, NO.2 |
| 58944 | Cover, Parking Brake Hole |
| 58944A | Cover, Console, Rear |
| 58959B | Cushion, Console Compartment Door |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 74133 | Seal, Front Ash Receptacle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
