Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

74 part groups · 9 illustrations

Illustrations

716492J 2009-10 → —

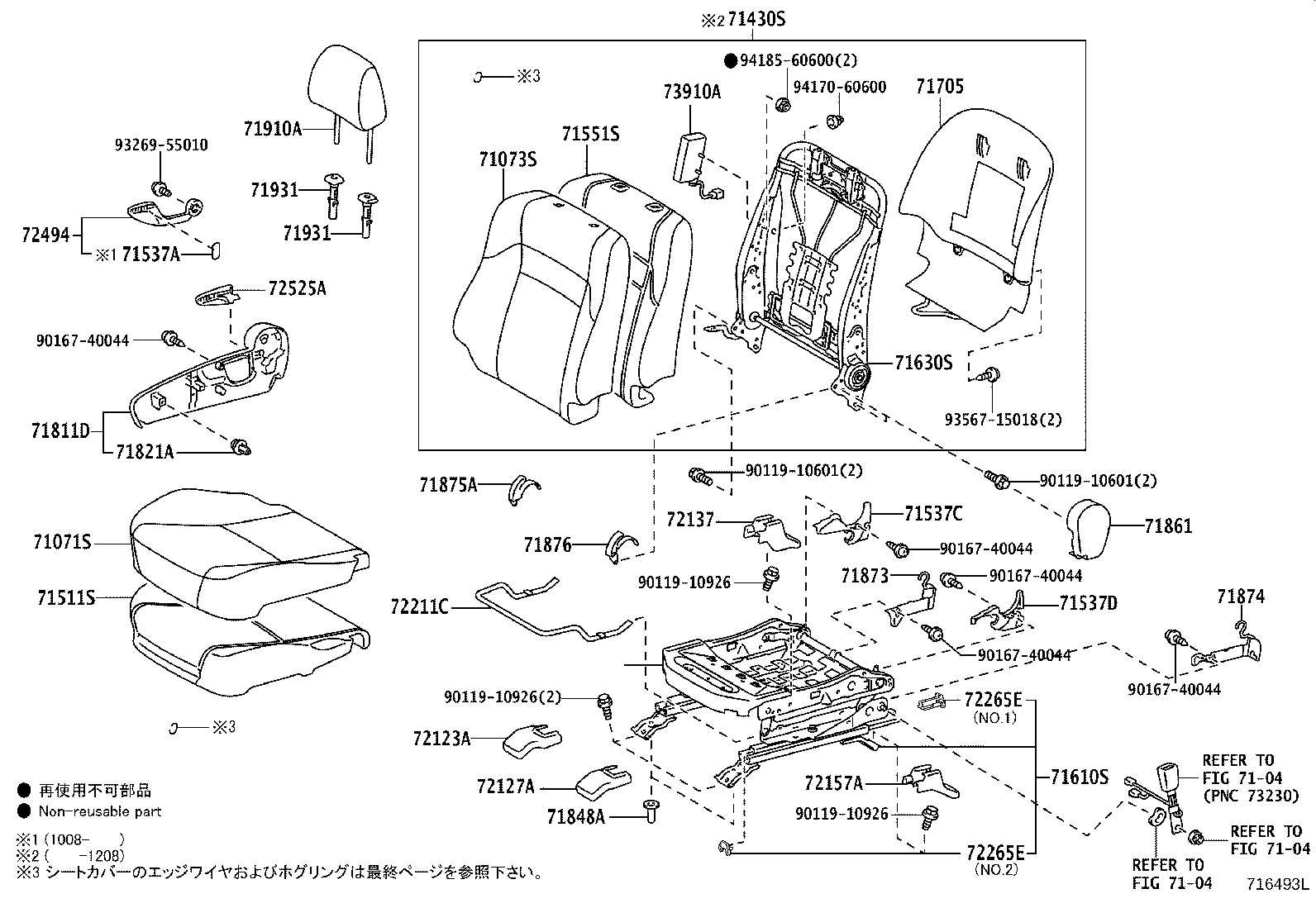

716493L 2009-10 → —

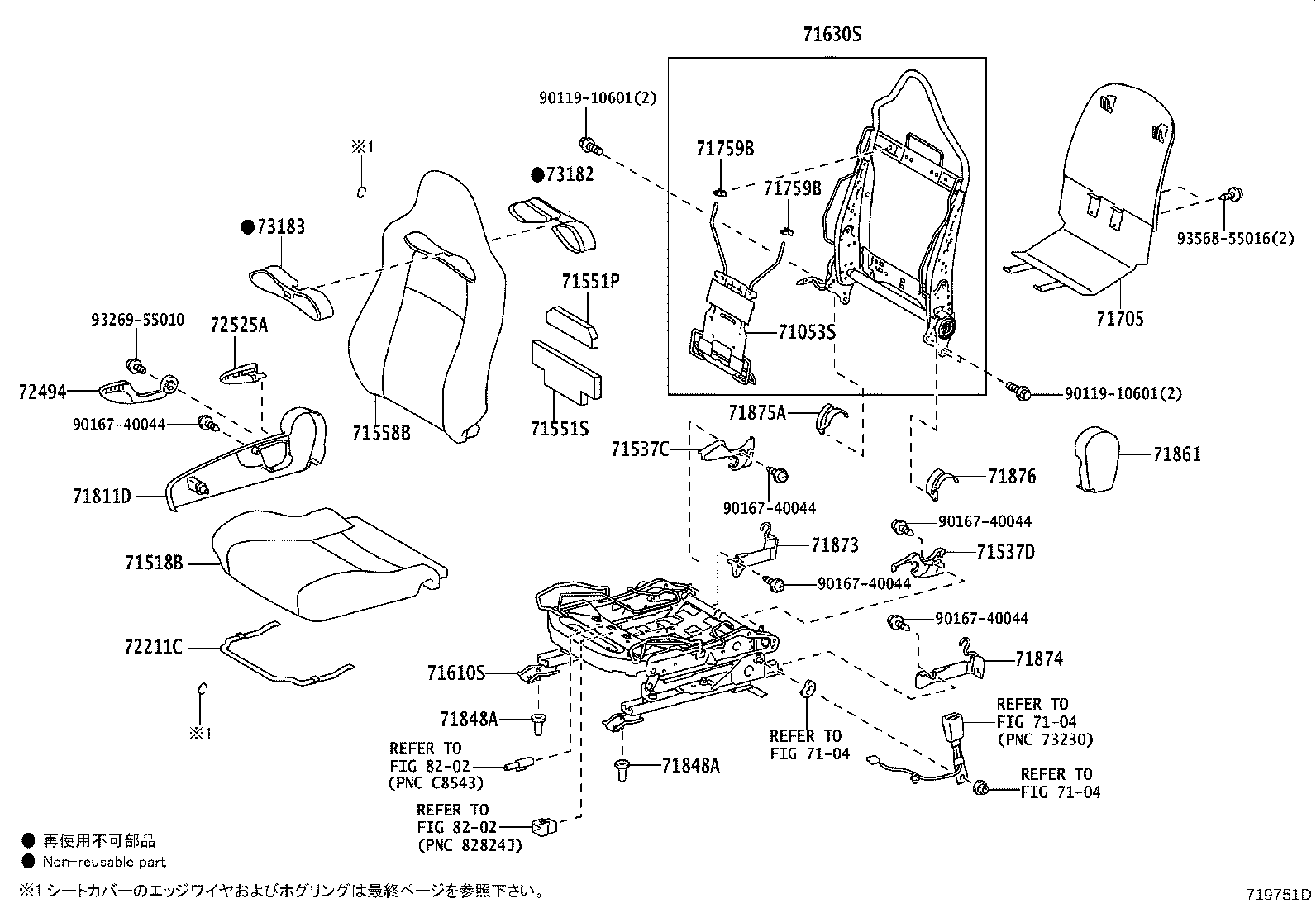

719751D 2015-05 → 2015-10

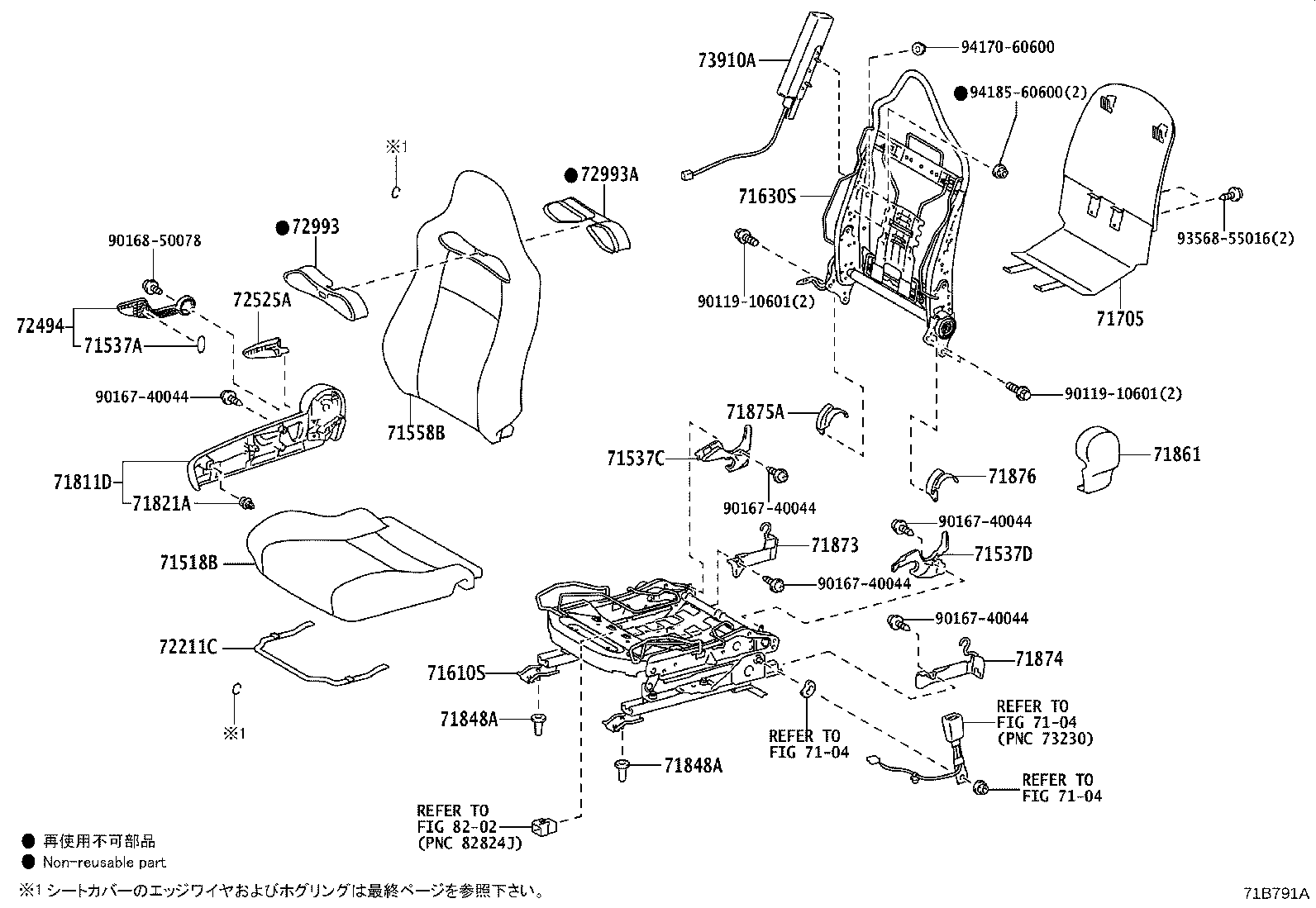

71B791A 2019-03 → —

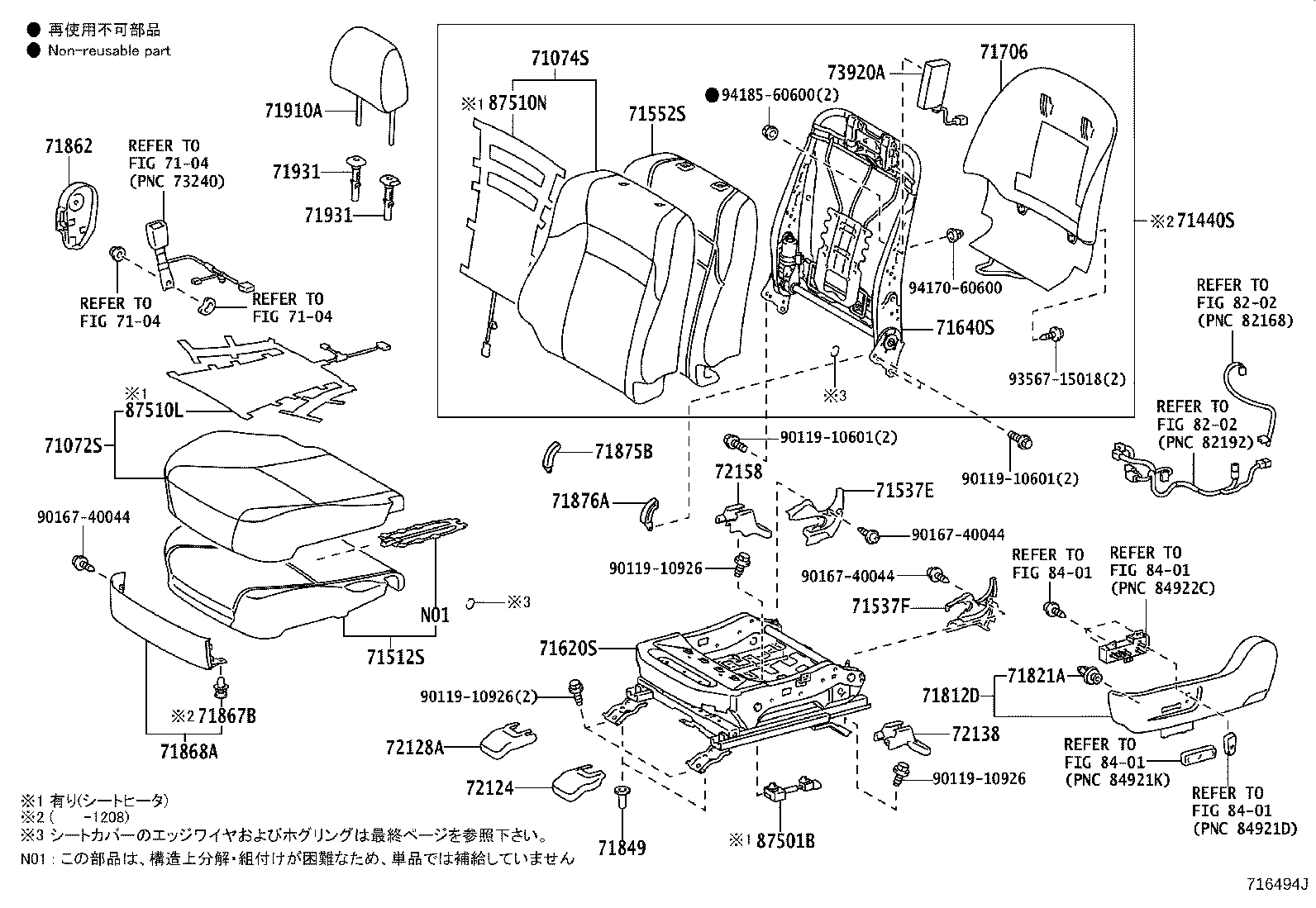

716494J 2009-10 → —

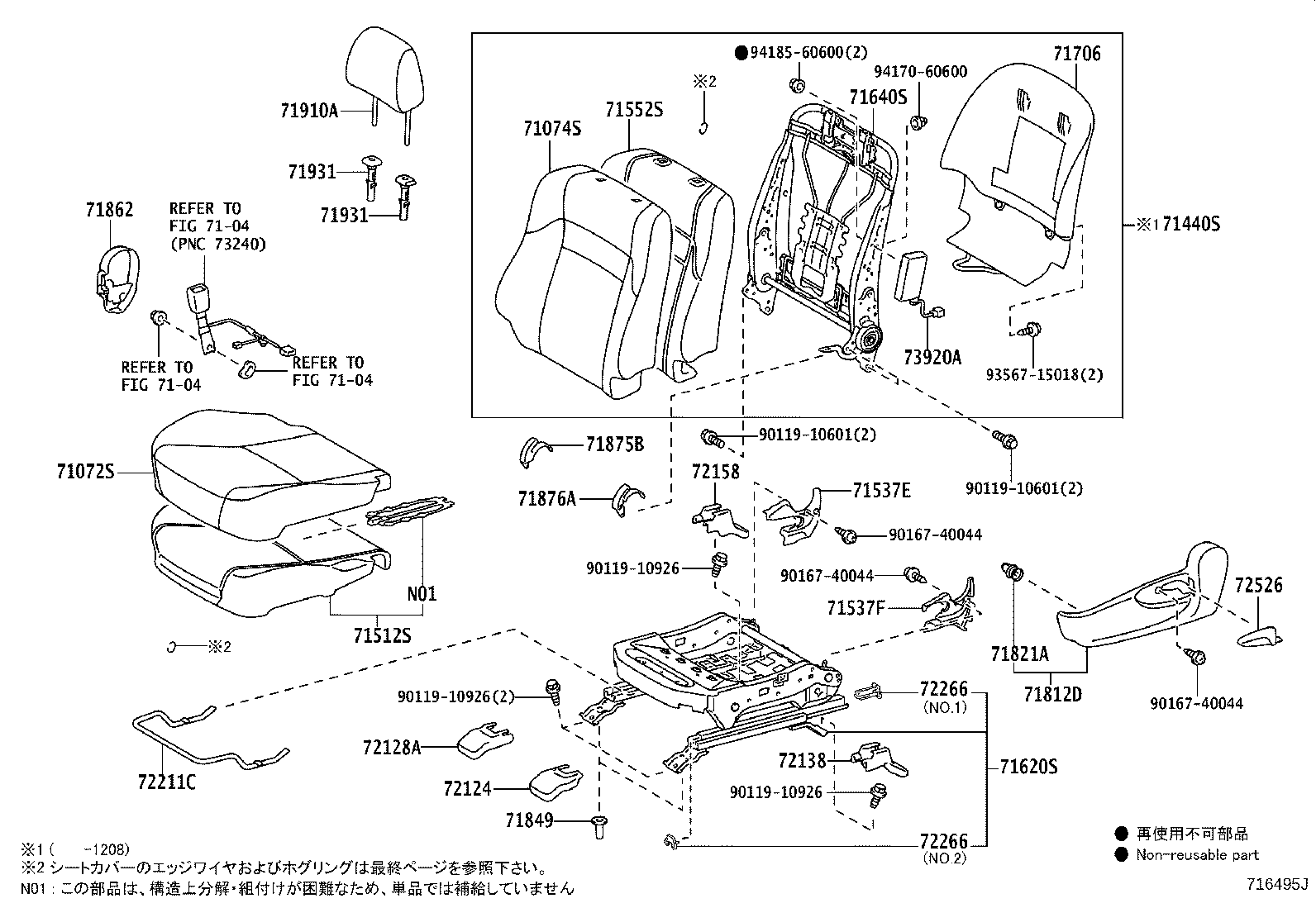

716495J 2009-10 → —

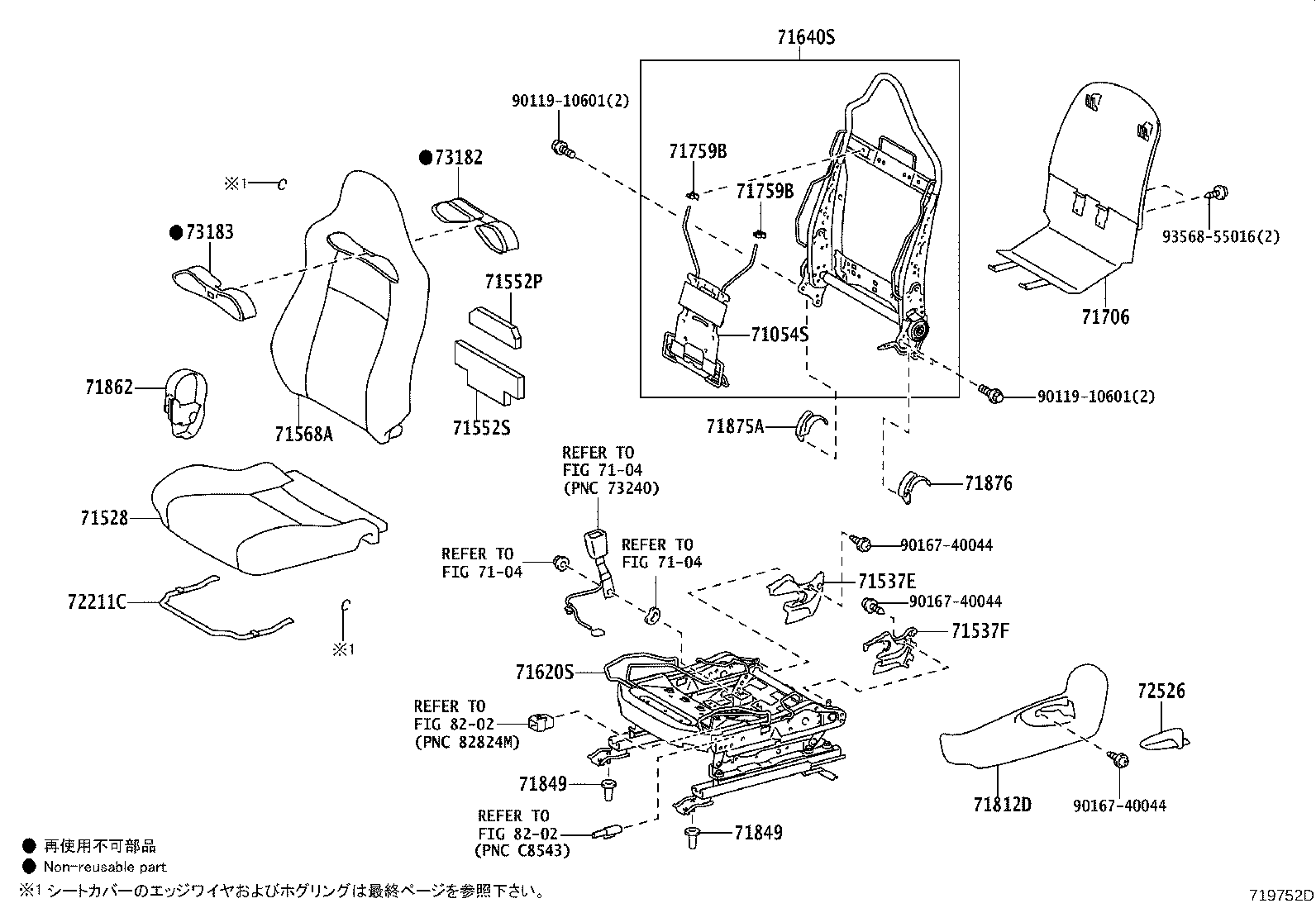

719752D 2015-05 → 2015-10

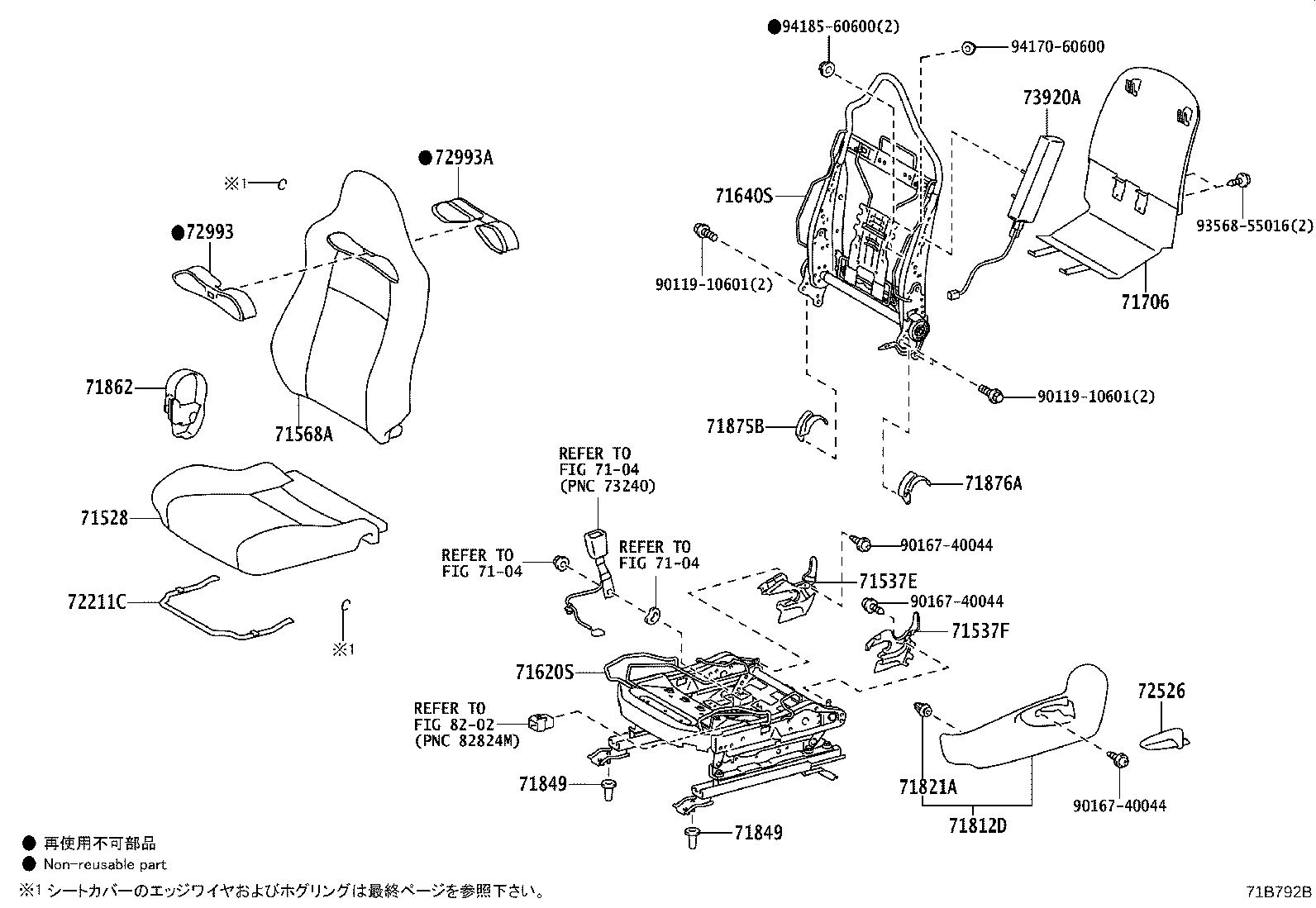

71B792A 2019-03 → —

71B443A 2009-10 → —

Part groups

PNC	Description
71053S	Spring Sub-assy, Front Seatback, RH
71054S	Spring Sub-assy, Front Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71518B	Pad, Front Seat Cushion W/Cover, RH
71528	Pad, Front Seat Cushion W/Cover, LH
71537A	Protector, Front Seat Cushion
71537C	Protector, Front Seat Cushion Edge, RH
71537D	Protector, Front Seat Cushion Edge, LH
71537E	Protector, Front Seat Cushion, NO.1
71537F	Protector, Front Seat Cushion, NO.2
71551P	Pad, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552P	Pad, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71558B	Pad, Front Seatback W/Cover, RH
71568A	Pad, Front Seatback W/Cover, LH
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71759B	Hook, Front Seatback
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71821A	Clip (FOR FRONT SEAT SIDE SHIELD)
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71867B	Clip(FOR FRONT SEAT CUSHION INNER SHIELD)
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71873	Shield, Front Seat Cushion, Lower RH
71874	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72137	Cover, Seat Track, Outer RH
72138	Cover, Seat Track, Outer LH
72157A	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72211C	Handle, Seat Track Adjusting
72265E	Cover, Seat Track Upper Rail, RH
72266	Cover, Seat Track Upper Rail, LH
72494	Handle, Vertical Adjusting, RH
72525A	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72993	Cover, Front Seatback
72993A	Cover, Front Seatback
73182	Guide, Front Seat Lap Belt, Outer
73183	Guide, Front Seat Lap Belt, Inner
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
87501A	Control Sub-assy, Seat Heater, RH
87501B	Control Sub-assy, Seat Heater, LH
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
