Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

34 part groups · 3 illustrations

Illustrations

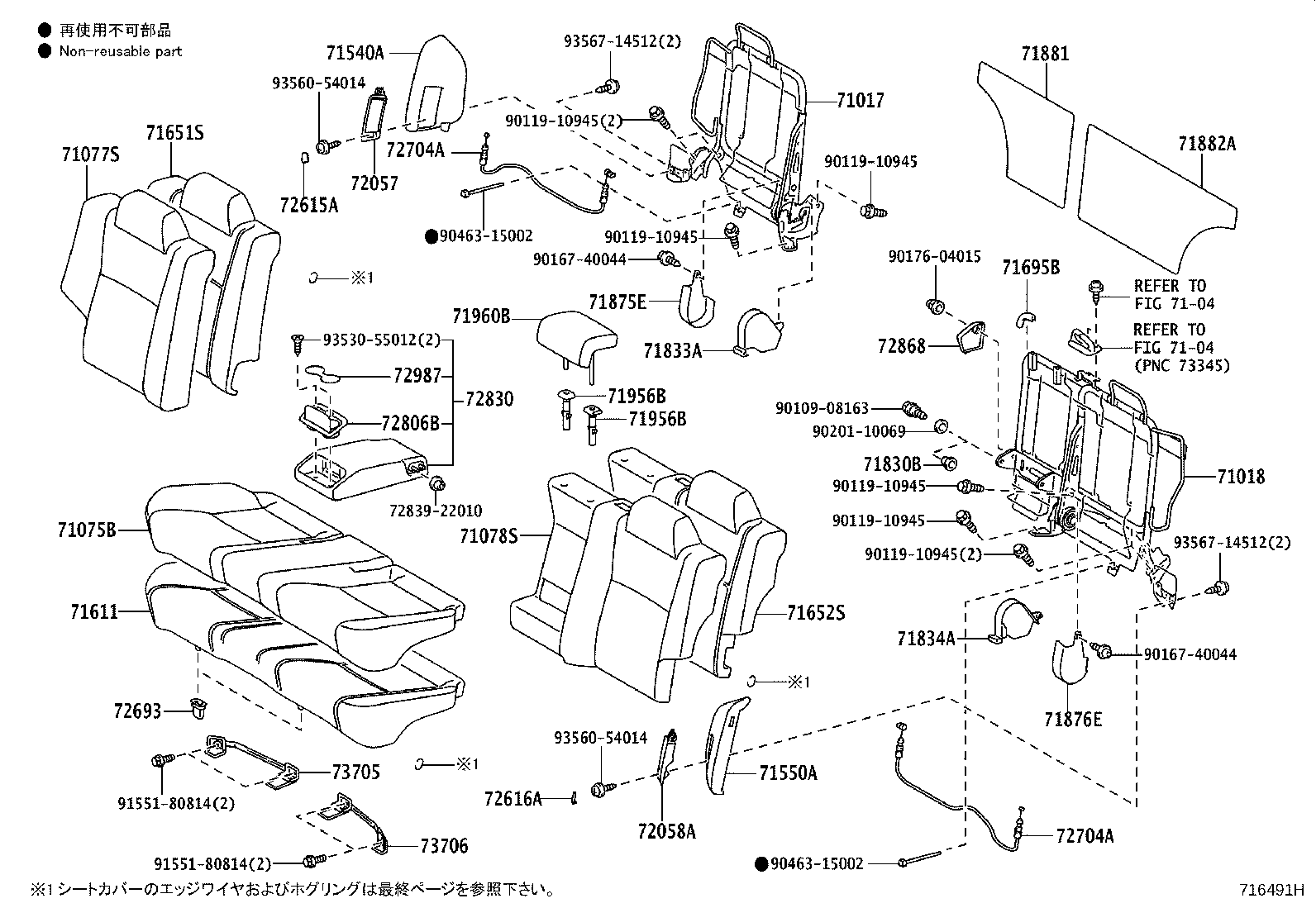

Figure 716490H 716490H 2009-10 → — Figure 716491H 716491H 2009-10 → — Figure 71A721A 71A721A 2009-10 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71540A Back Assy, Rear Side Seat, RH
71550A Back Assy, Rear Side Seat, LH
71611 Pad, Rear Seat Cushion
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71695B Protector, Rear Seat, NO.1 LH
71830B Bush(FOR REAR SEAT ARMREST)
71833A Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71875E Cover, Reclining Adjuster Inside, RH
71876E Cover, Reclining Adjuster Inside, LH
71881 Board, Rear Seatback, RH
71882A Board, Rear Seatback, LH
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72615A Cover, Rear Seatback Lock Striker, RH
72616A Cover, Rear Seatback Lock Striker, LH
72693 Hook, Rear Seat Cushion Lock
72704A Cable, Rear Seat Reclining Control
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72868 Cover, Center Armrest Hinge, RH
72987 Cover, Rear Seat Center Armrest
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
