Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

8 part groups · 2 illustrations

Illustrations

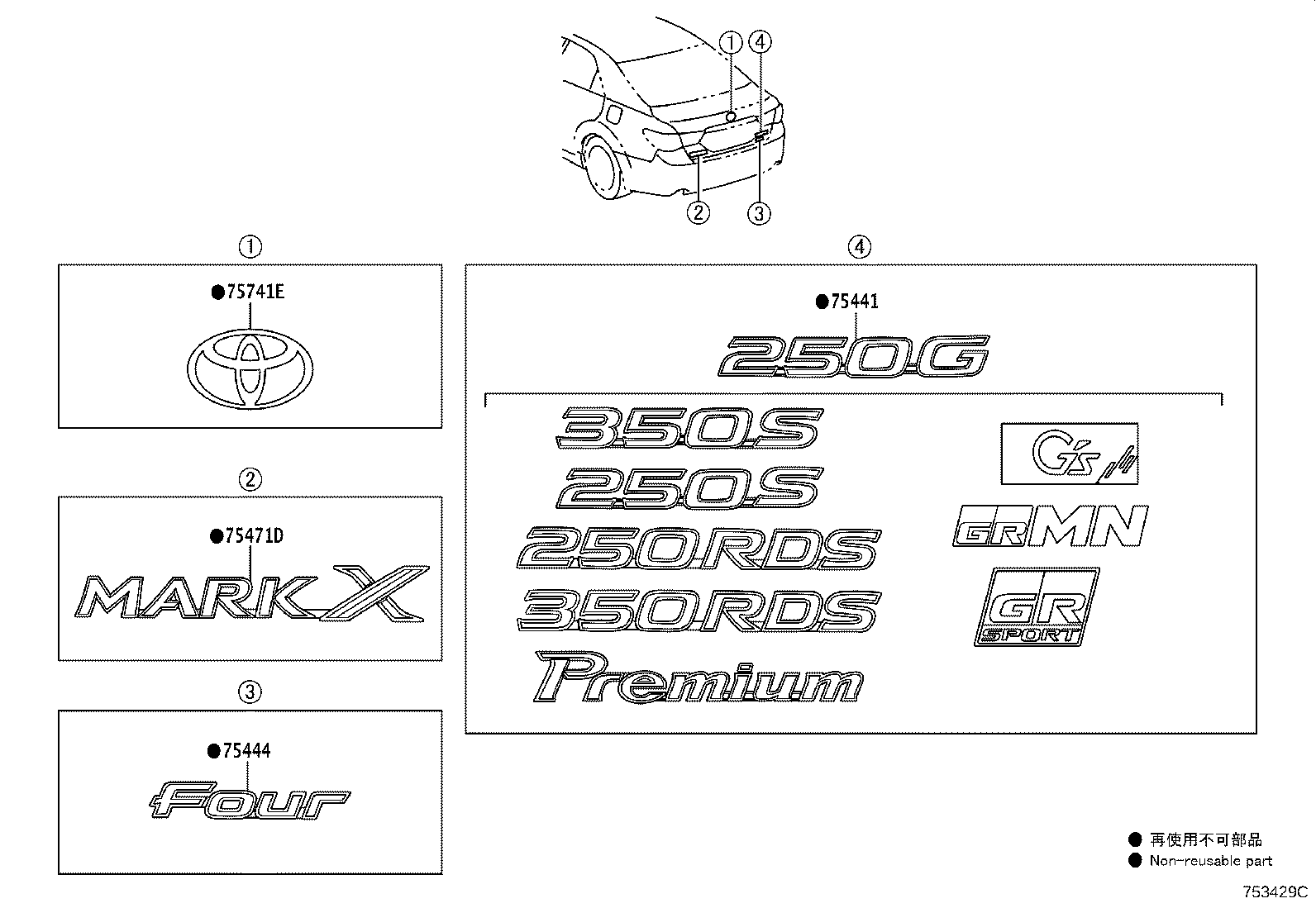

Figure 752268H 752268H 2009-10 → — Figure 753429C 753429C 2009-10 → —

Part groups

PNCDescription
75301A Emblem Sub-assy, Front Bumper
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75362 Plate, Front Fender Name, NO.2
75441 Plate, Rear Name, NO.1
75444 Plate, Luggage Compartment Door, NO.4
75471D Plate, Rear Name
75741E Emblem, Symbol
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
