Toyota Mark X
2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan
Supported model
Data version 2020-01

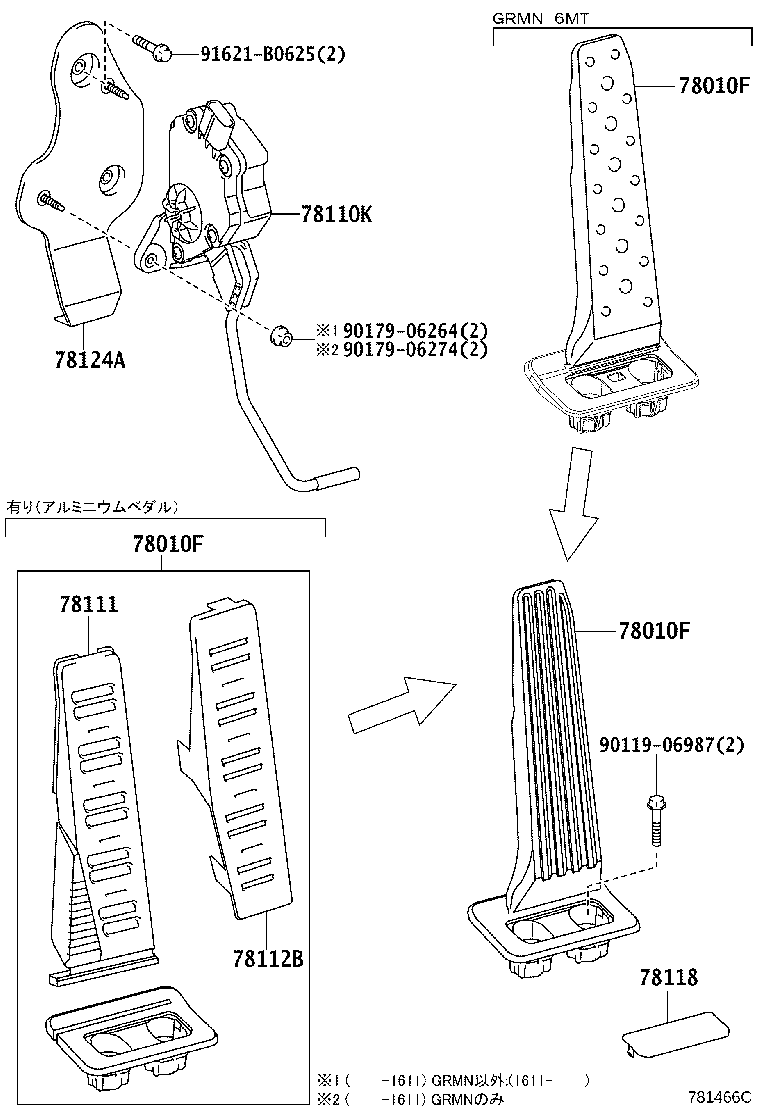

Accelerator Link
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010F | Pedal Assy, Accelerator |
| 78110K | Rod Assy, Accelerator Pedal(W/SENSOR) |
| 78111 | Pedal, Accelerator |
| 78112B | Plate, Accelerator Pedal |
| 78114A | Bracket, Accelerator Pedal Support |
| 78118 | Pad, Accelerator Pedal |
| 78124A | Bracket, Accelerator Pedal Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
