Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

62 part groups · 14 illustrations

Illustrations

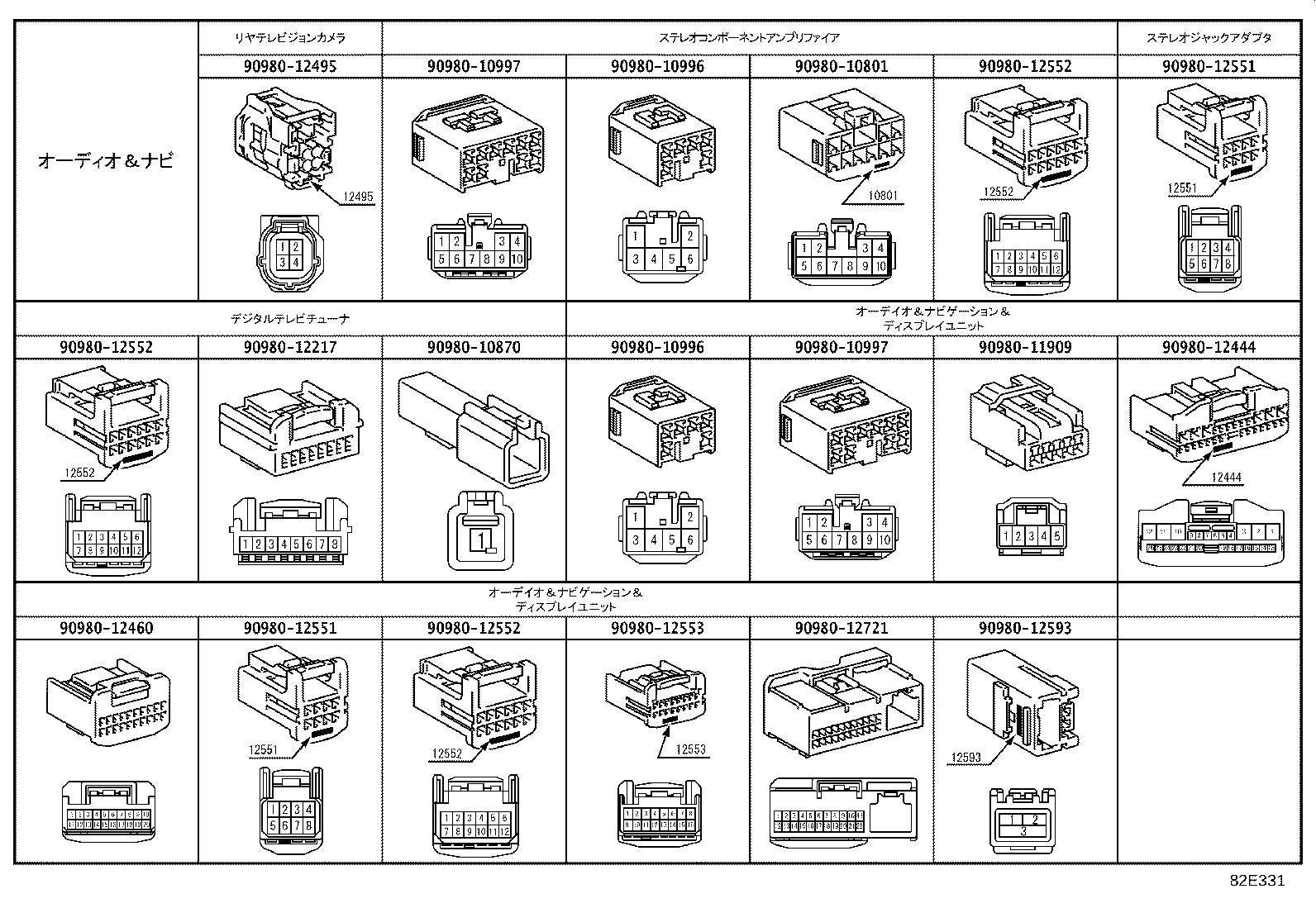

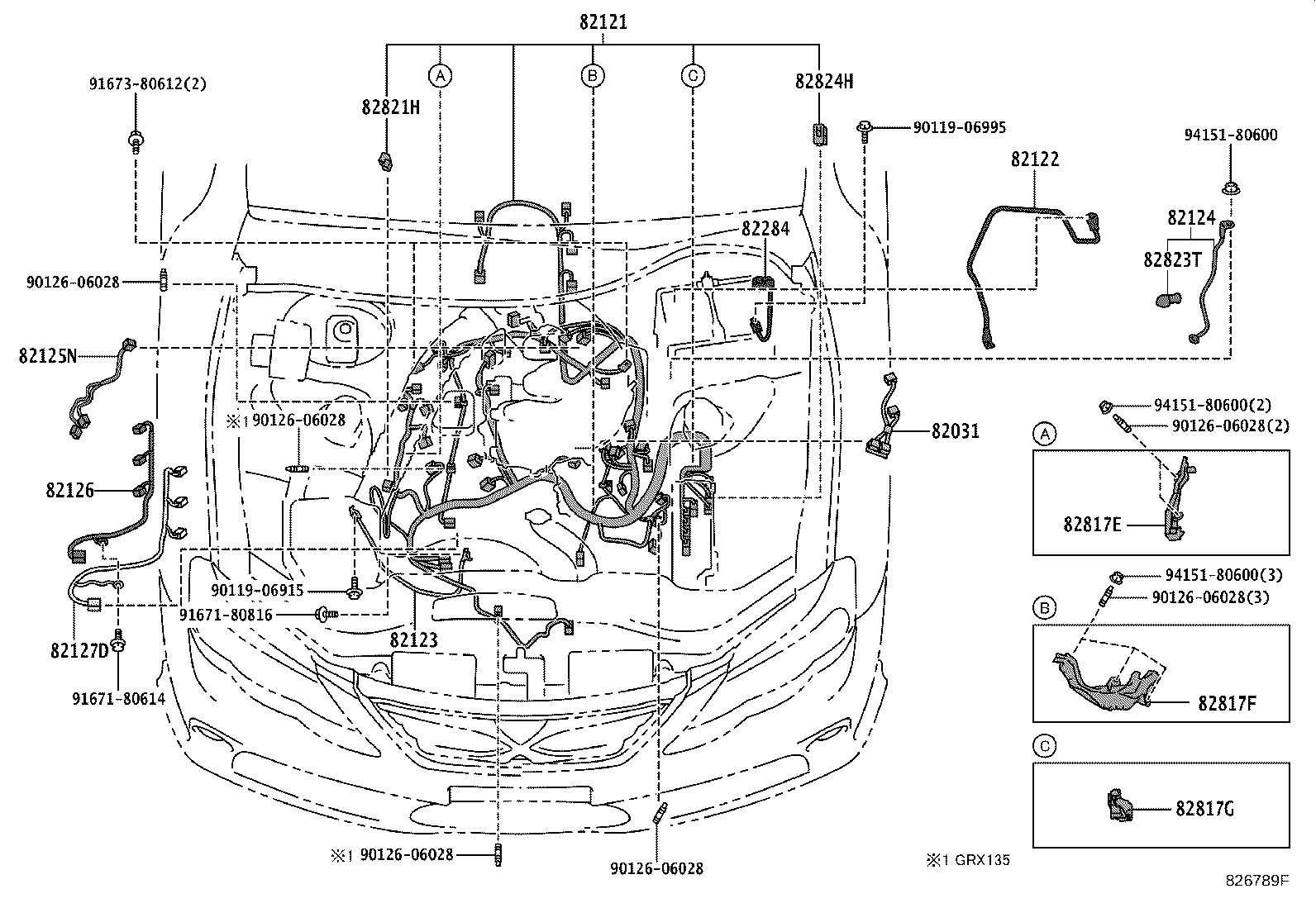

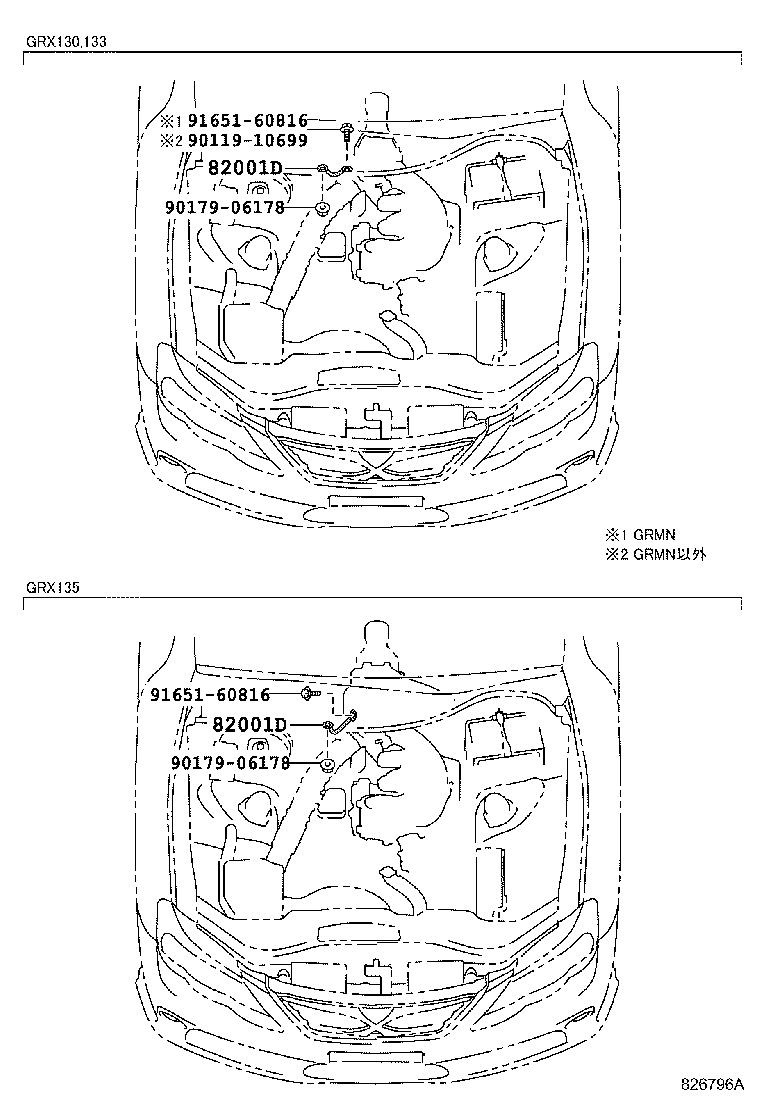

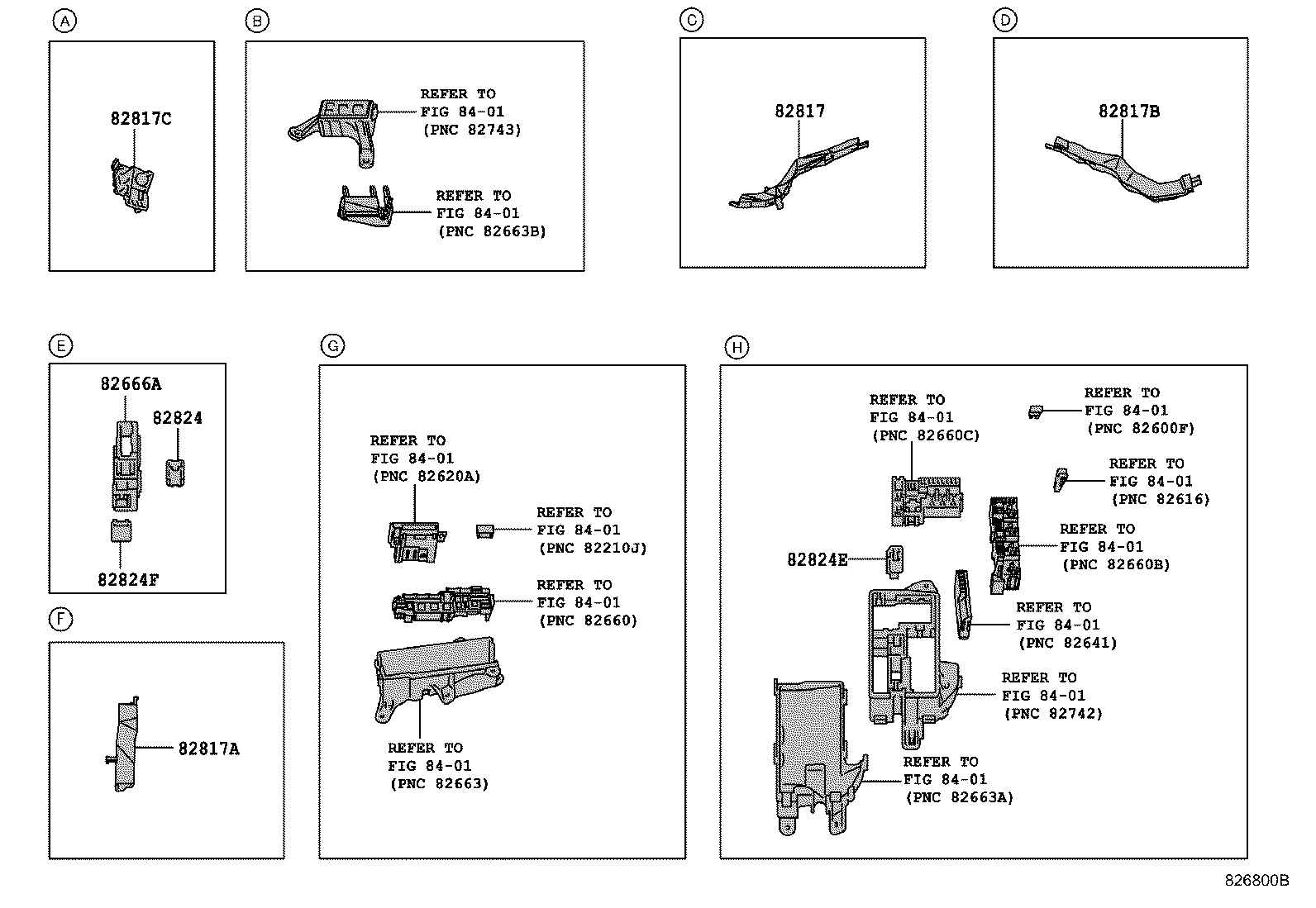

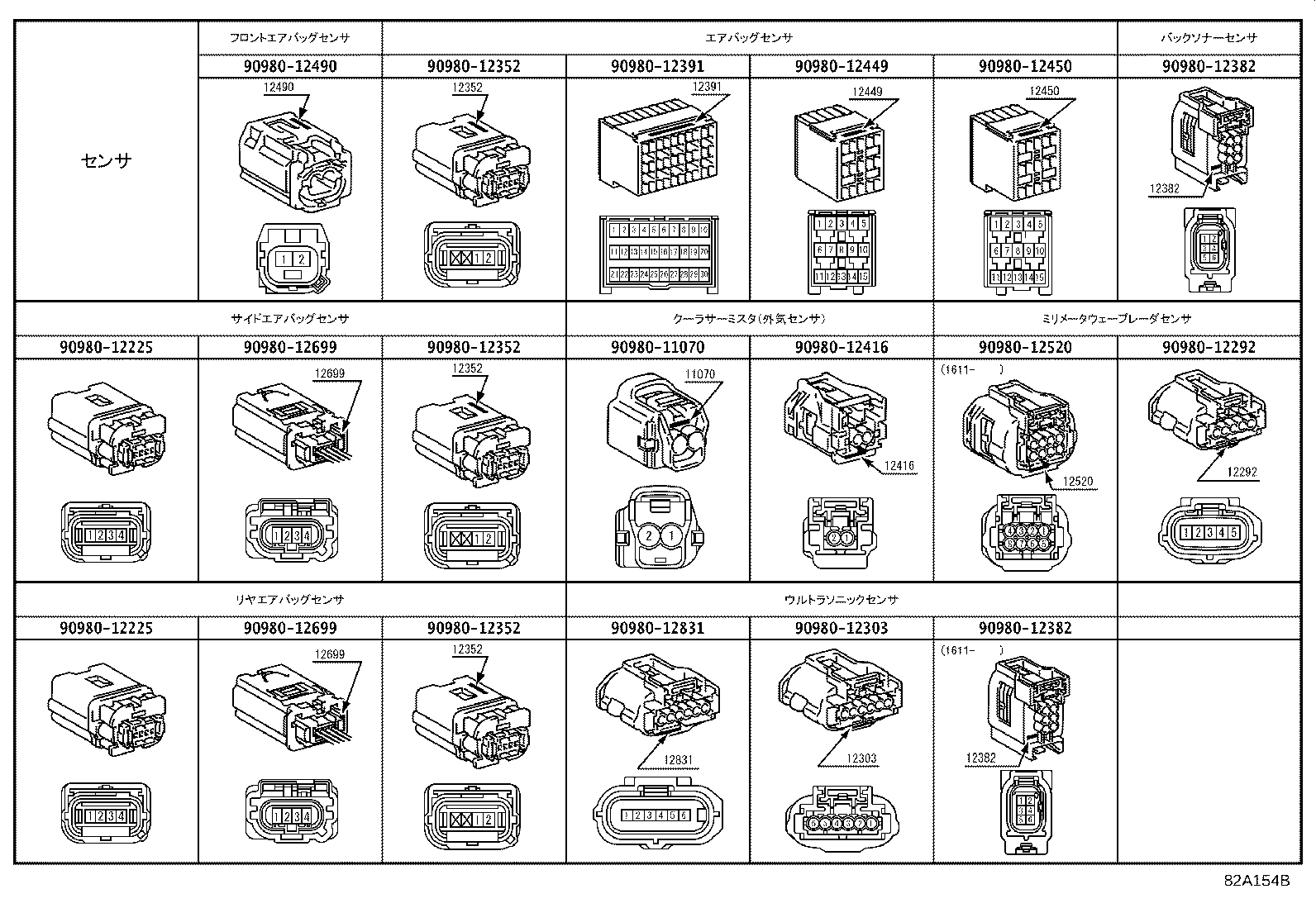

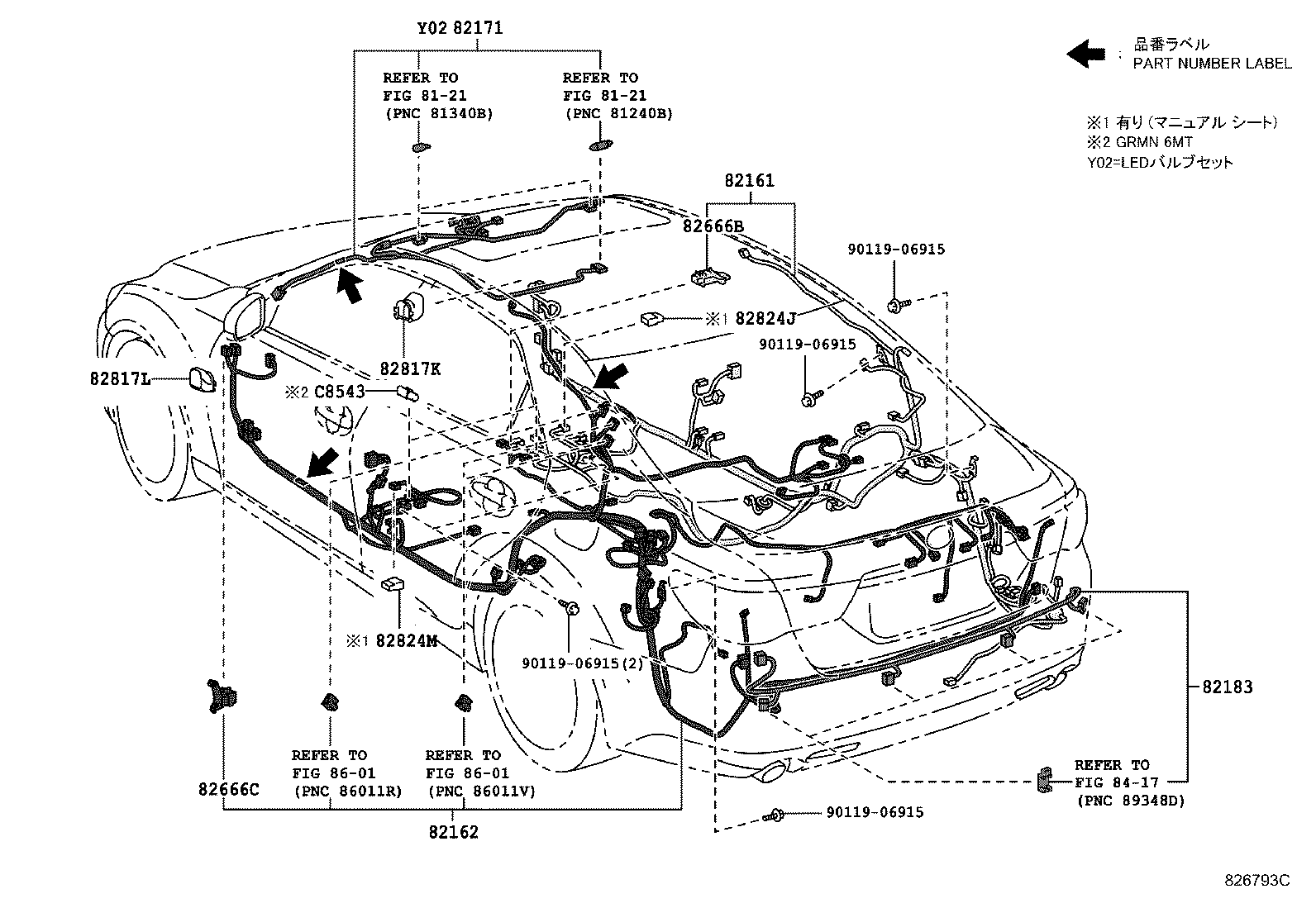

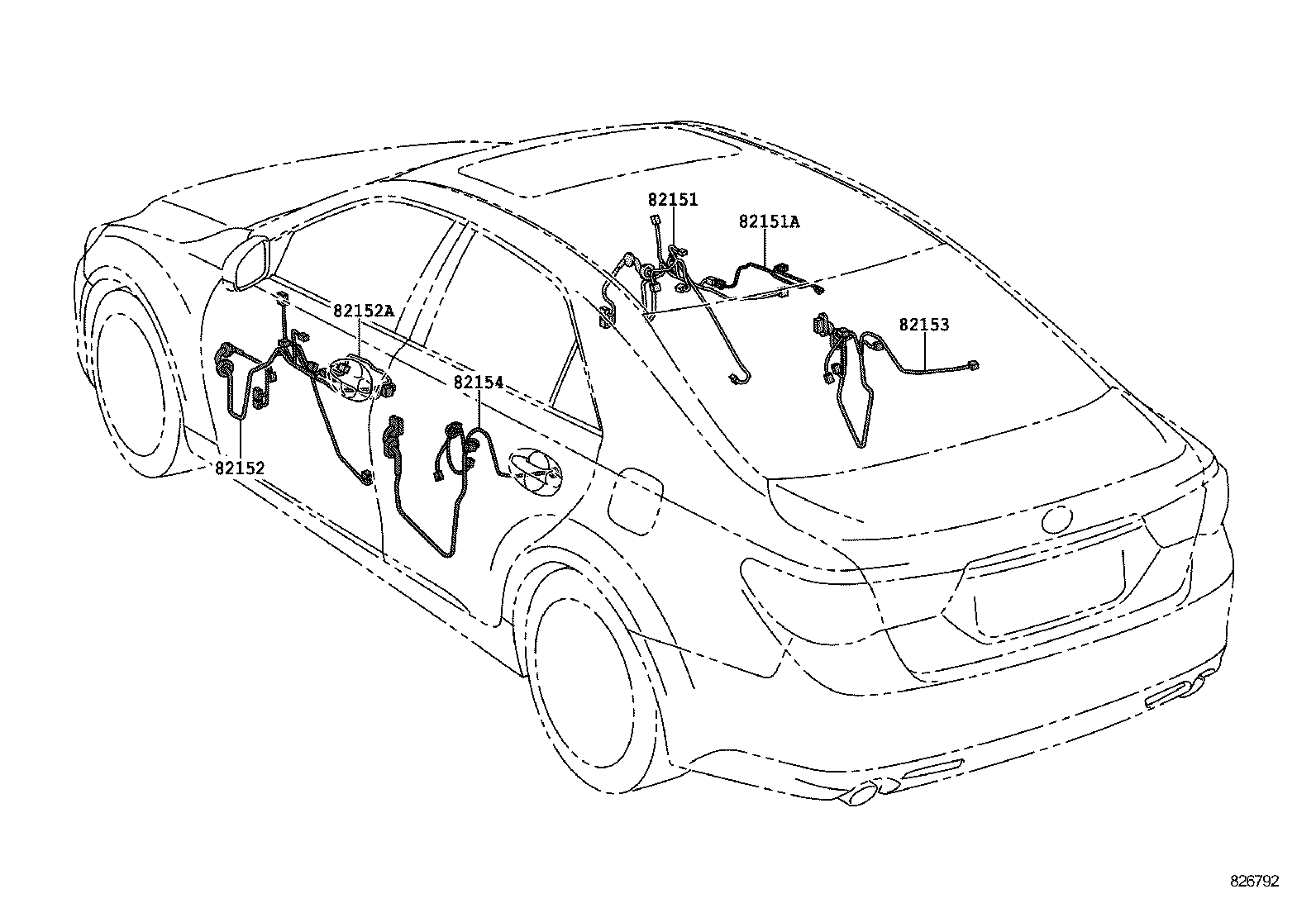

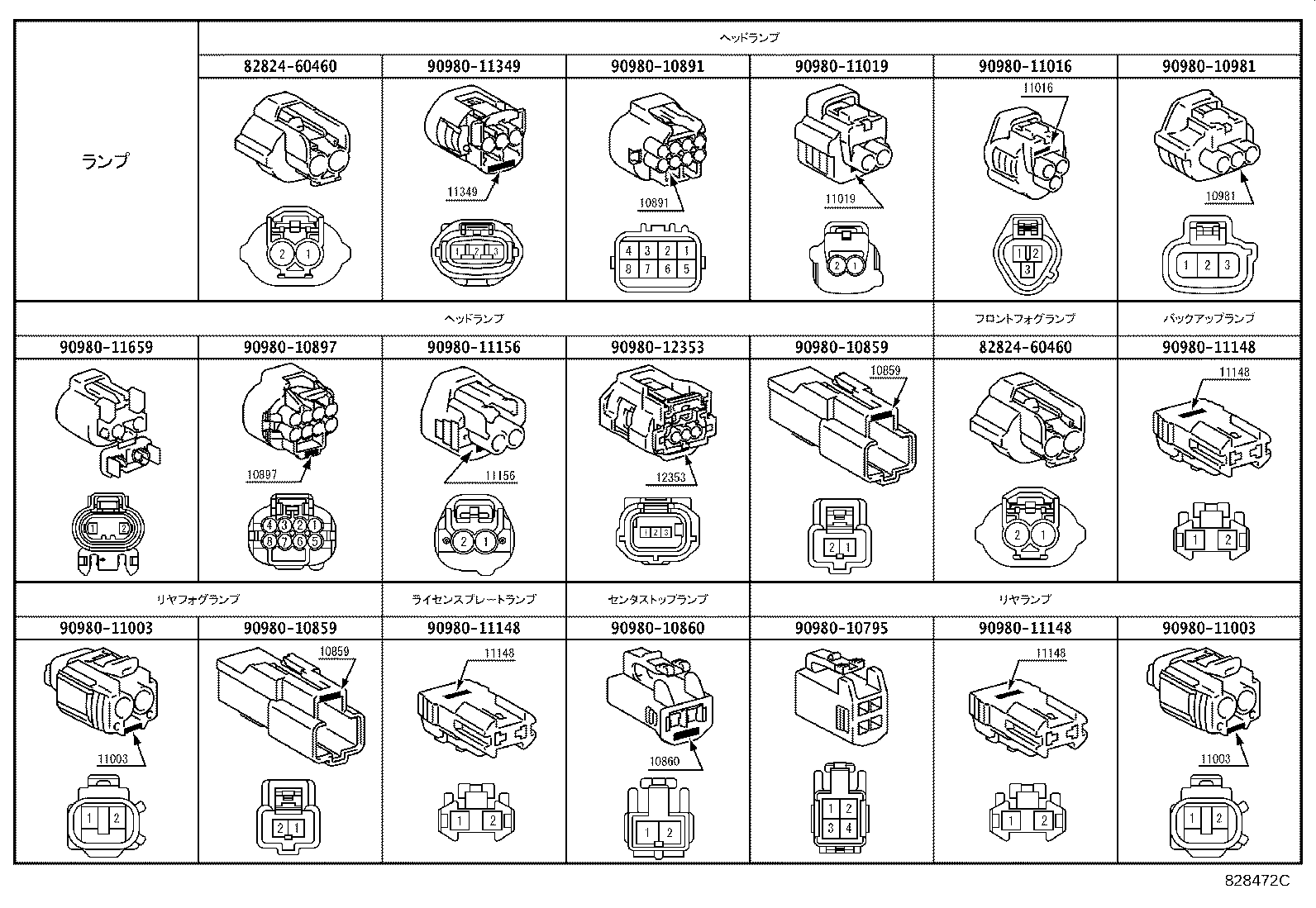

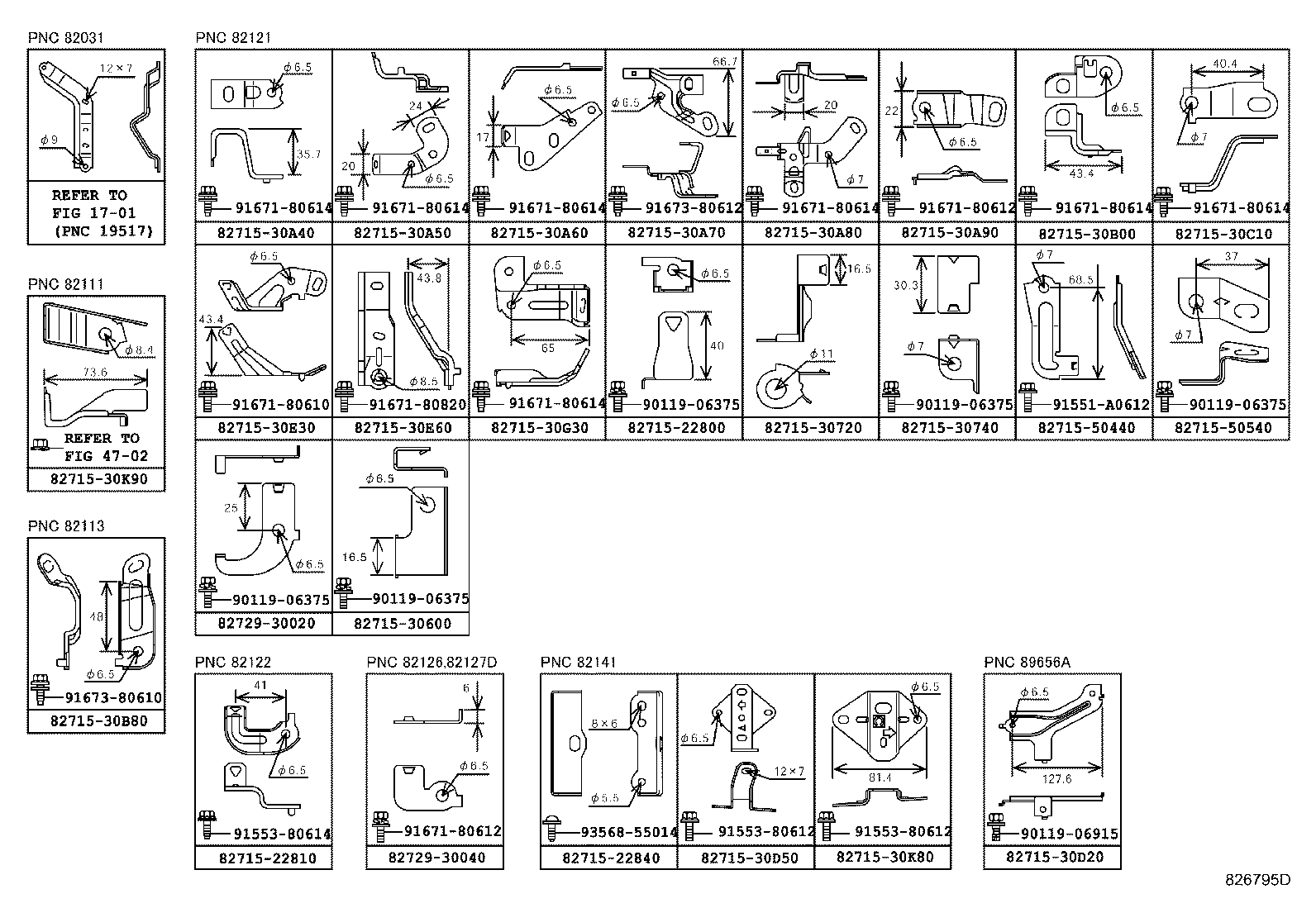

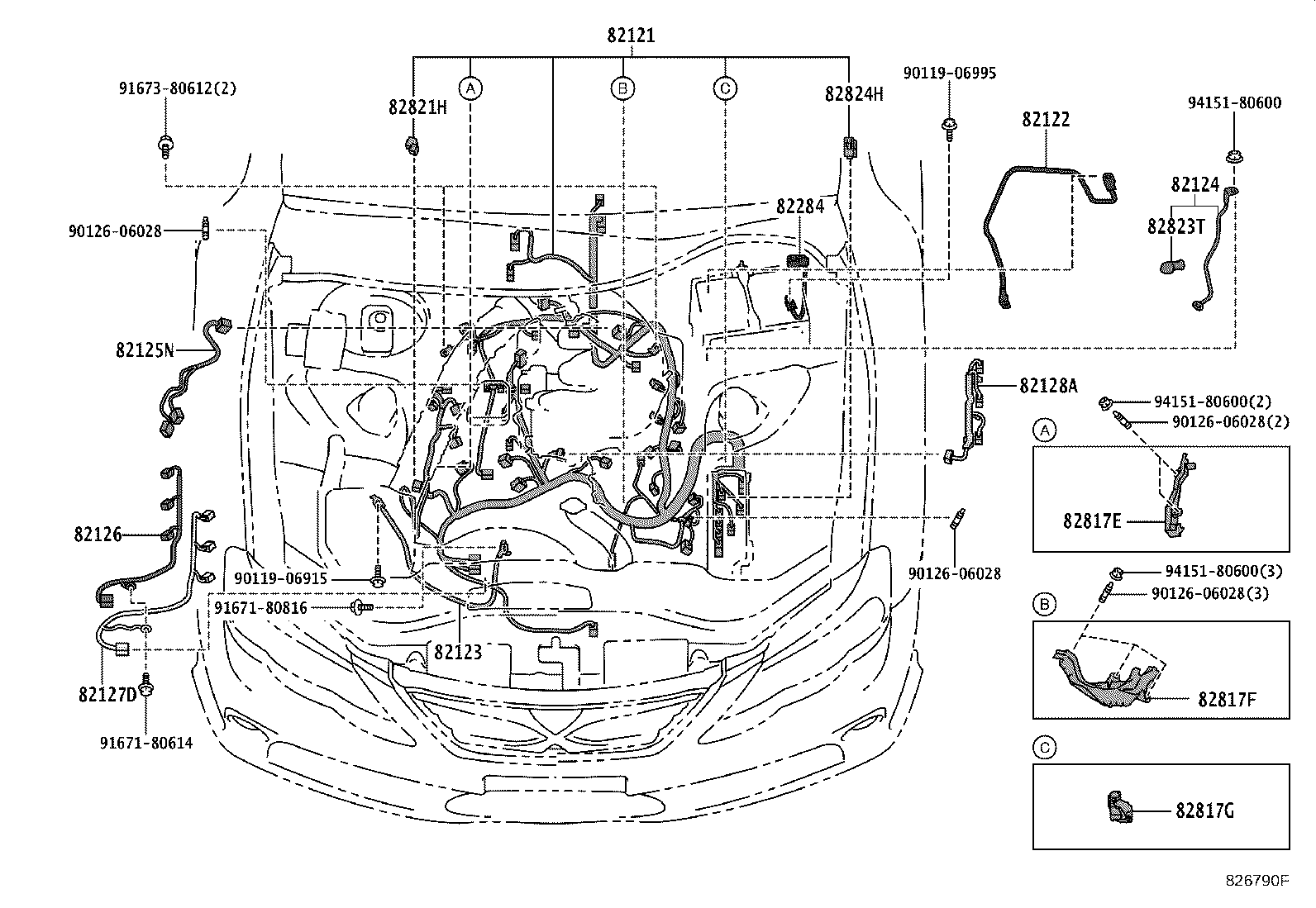

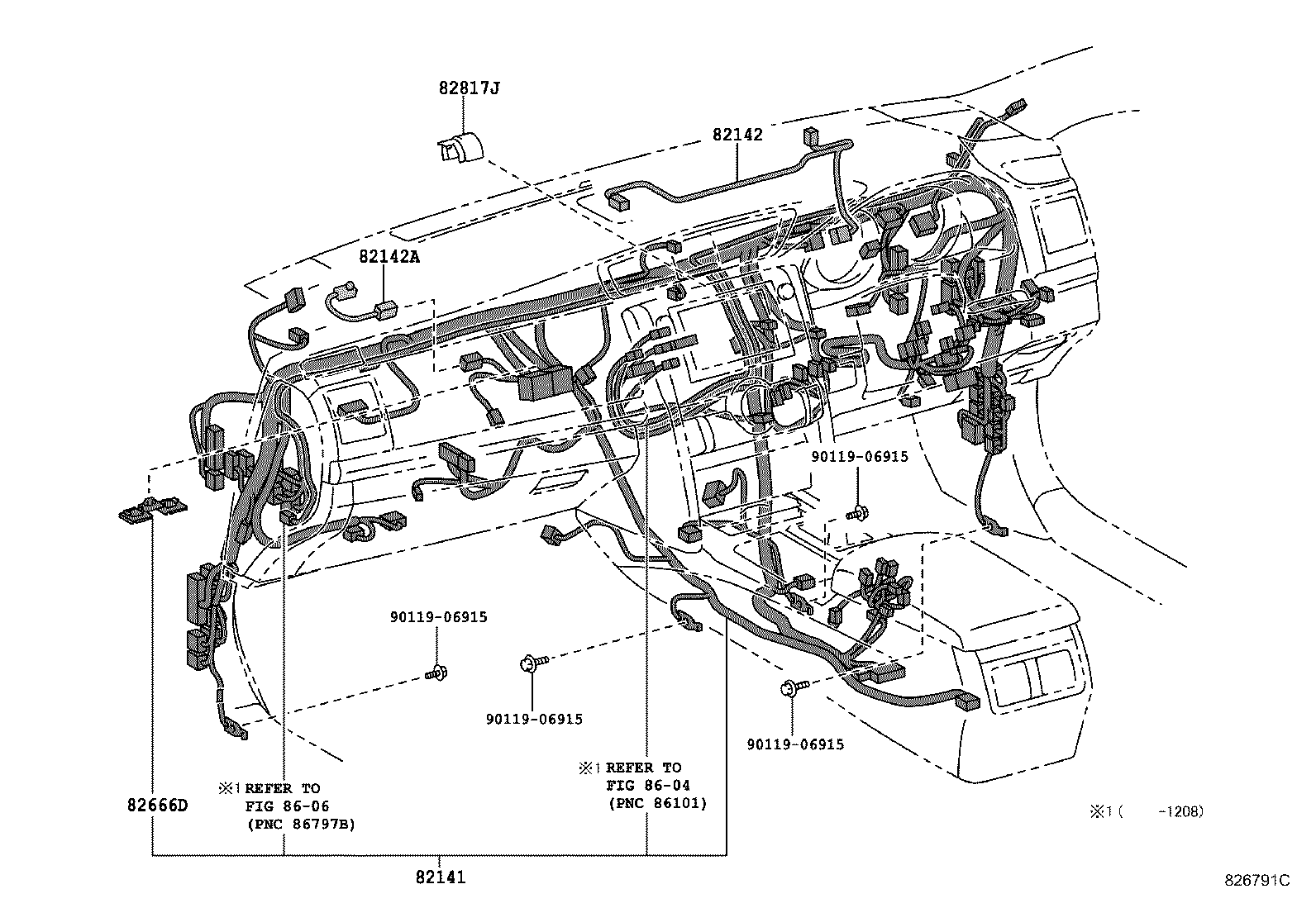

Figure 826788C 826788C 2009-10 → — Figure 826800B 826800B 2009-10 → — Figure 826789F 826789F 2009-10 → — Figure 826790F 826790F 2009-10 → — Figure 826791C 826791C 2009-10 → — Figure 826792 826792 2009-10 → — Figure 826793C 826793C 2009-10 → — Figure 826794 826794 2009-10 → — Figure 826795D 826795D 2009-10 → — Figure 826796A 826796A 2009-10 → — Figure 828472C 828472C 2009-10 → — Figure 828473D 828473D 2009-10 → — Figure 82A154B 82A154B 2009-10 → — Figure 82E331 82E331 2009-10 → —

Part groups

PNCDescription
82001D Cable, Bond, NO.3
82031 Wire Sub-assy, Ignition Coil
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82183 Wire, Luggage Room, NO.3
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82284 Wire, Earth
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824M Connector, Wiring Harness
89656A Wire, Power Steering Earth
C8543 Resistor, Emergency
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
