Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

11 part groups · 2 illustrations

Illustrations

Figure 84B084D

84B084D 2009-10 → —

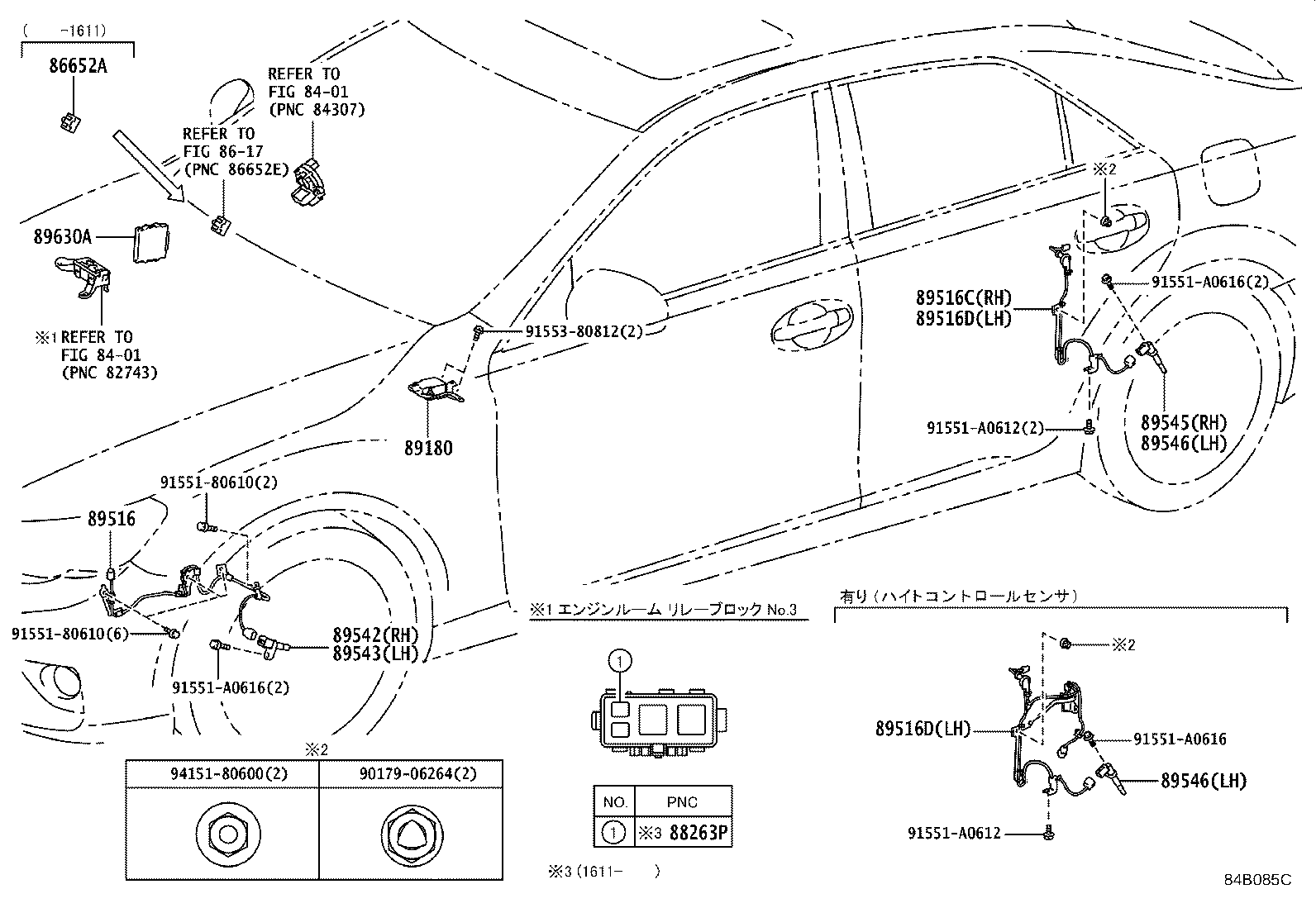

Figure 84B085C

84B085C 2009-10 → —

Part groups

PNC	Description
86652A	Buzzer Assy, Skid Control
88263P	Relay, Stop Lamp Control
89180	Sensor Assy, Yawrate
89516	Wire, Skid Control Sensor
89516C	Wire, Skid Control Sensor, RH
89516D	Wire, Skid Control Sensor, LH
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89630A	Computer Assy, 4WD

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
