Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

6 part groups · 2 illustrations

Illustrations

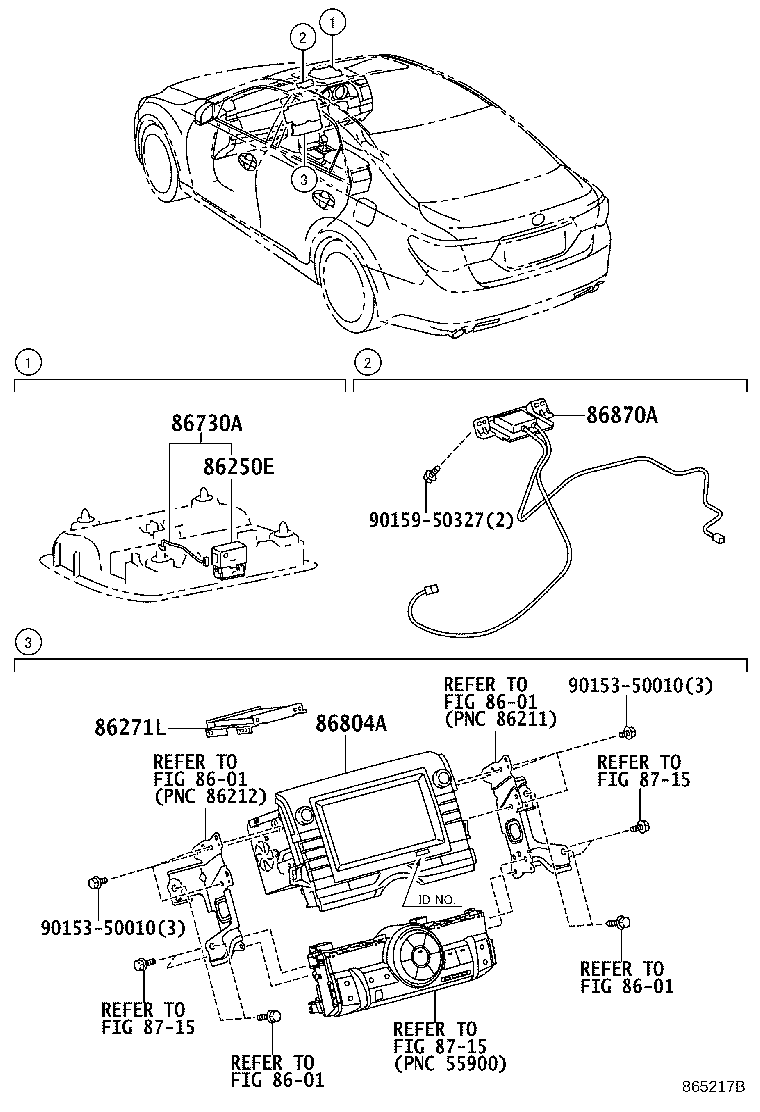

Figure 864058D 864058D 2009-10 → 2012-08 Figure 865217B 865217B 2012-08 → —

Part groups

PNCDescription
86120L Receiver Assy, Navigation
86250E Microphone Assy, Amplifier
86271L Hard Disc
86730A Microphone Assy, Telephone
86804A Sub-assy, Navigation Computer
86870A Antenna Assy, Gps & Vics
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
