Toyota Mark X

2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

8 part groups · 4 illustrations

Illustrations

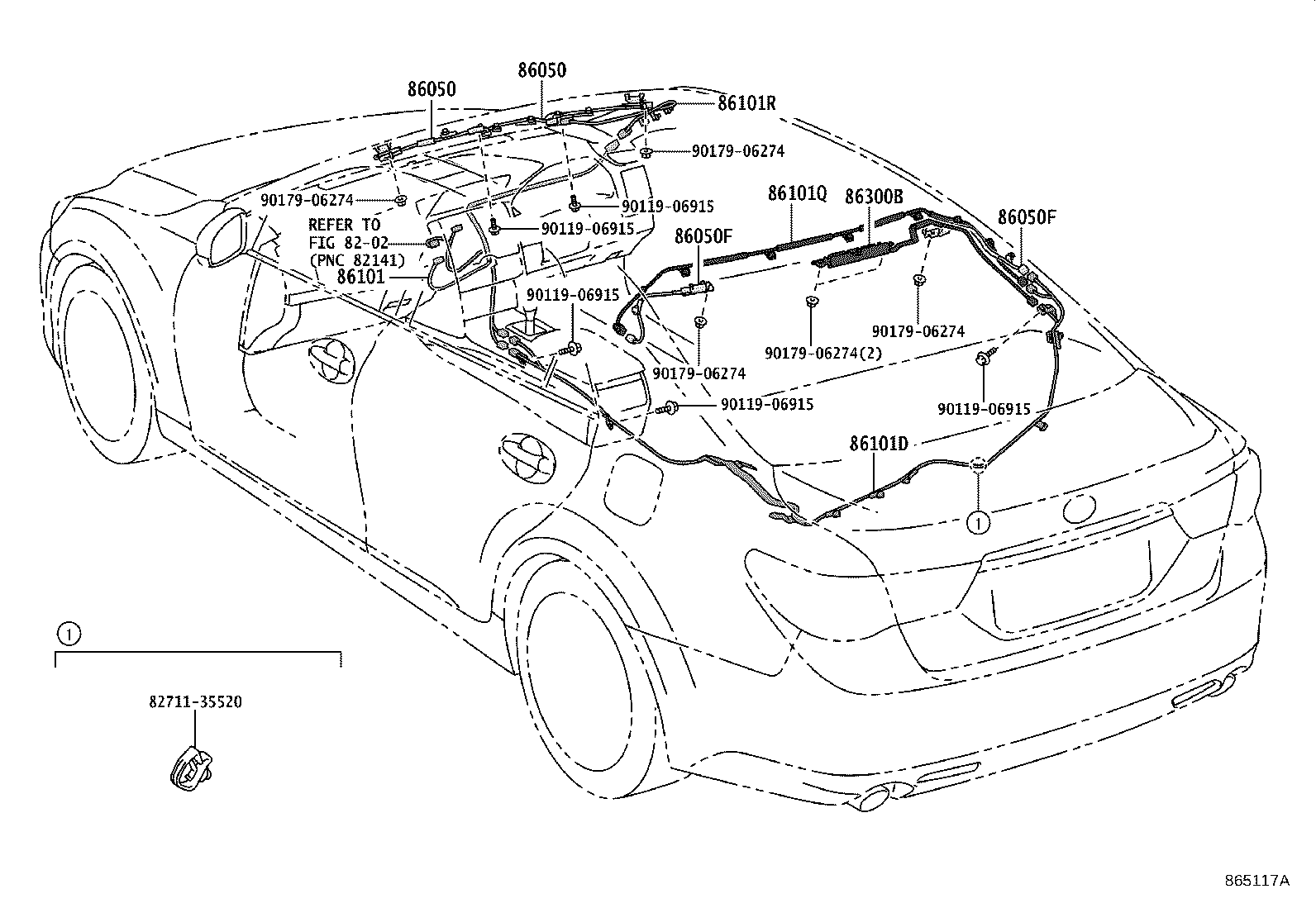

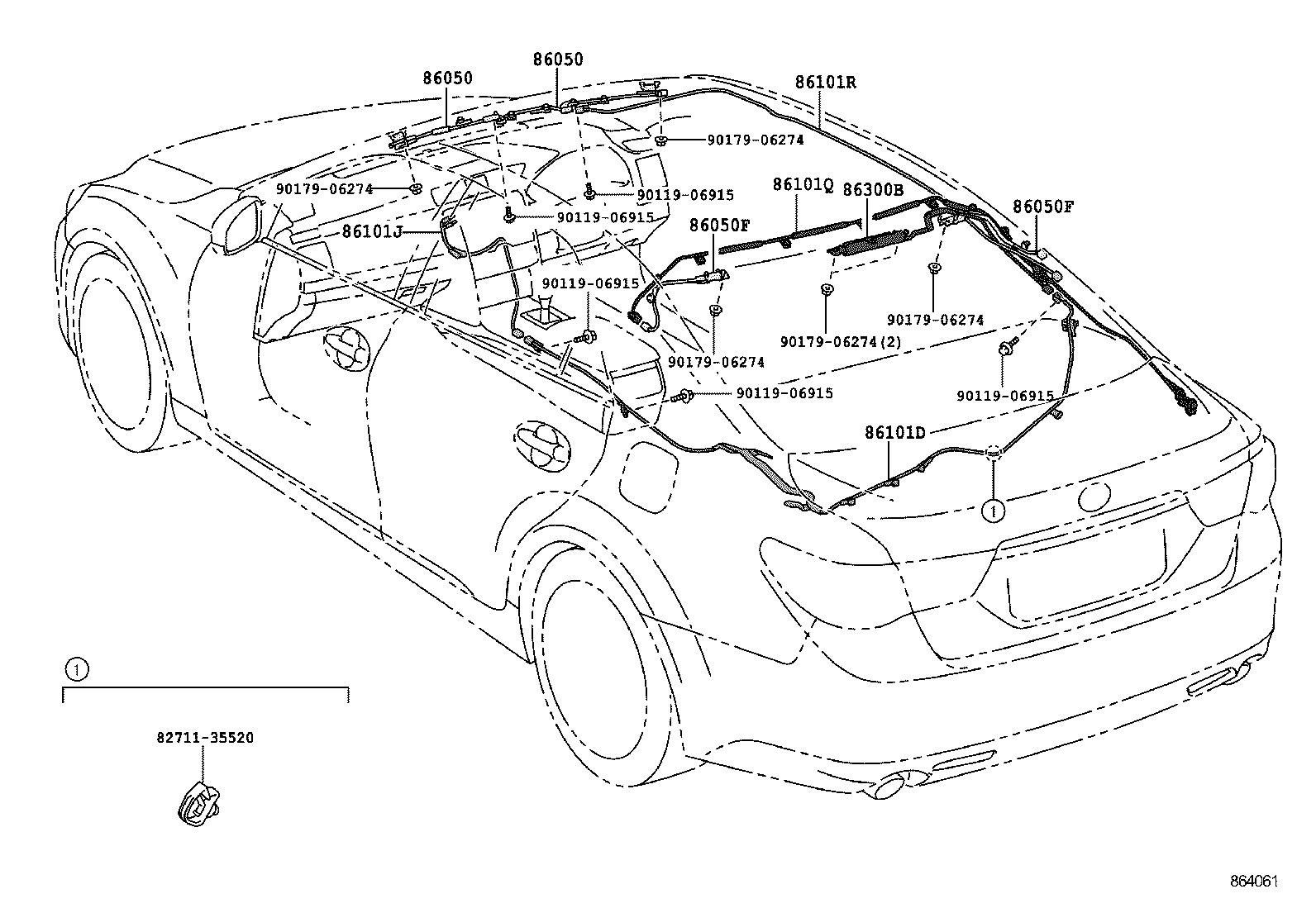

Figure 864060A 864060A 2009-10 → — Figure 864061 864061 2009-10 → 2012-08 Figure 864062 864062 2009-10 → 2012-08 Figure 865117A 865117A 2012-08 → 2016-11

Part groups

PNCDescription
86050 Antenna Assy, Television
86050F Antenna Assy, Television
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86101R Cord Sub-assy, Antenna, NO.5
86300B Antenna Assy, Amplifier, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
