Toyota Mark X
2009-10 → 2019-12 · chassis GRX13# · catalogue 3111B0 · Japan
Supported model
Data version 2020-01

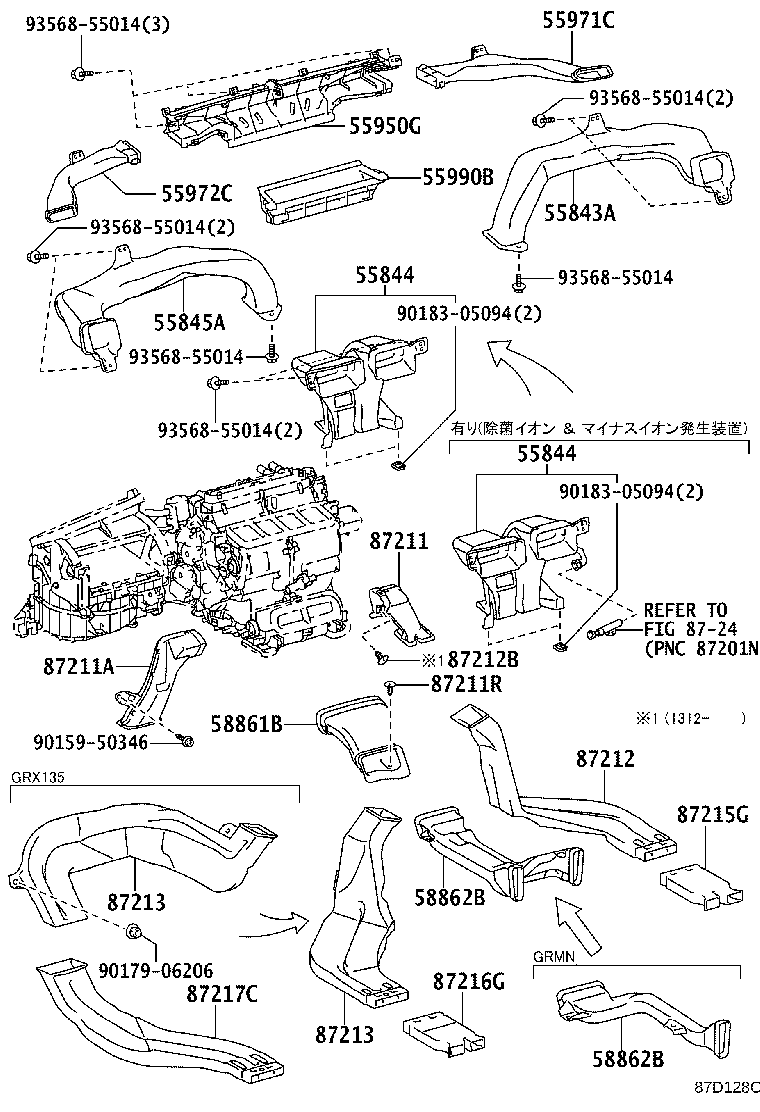

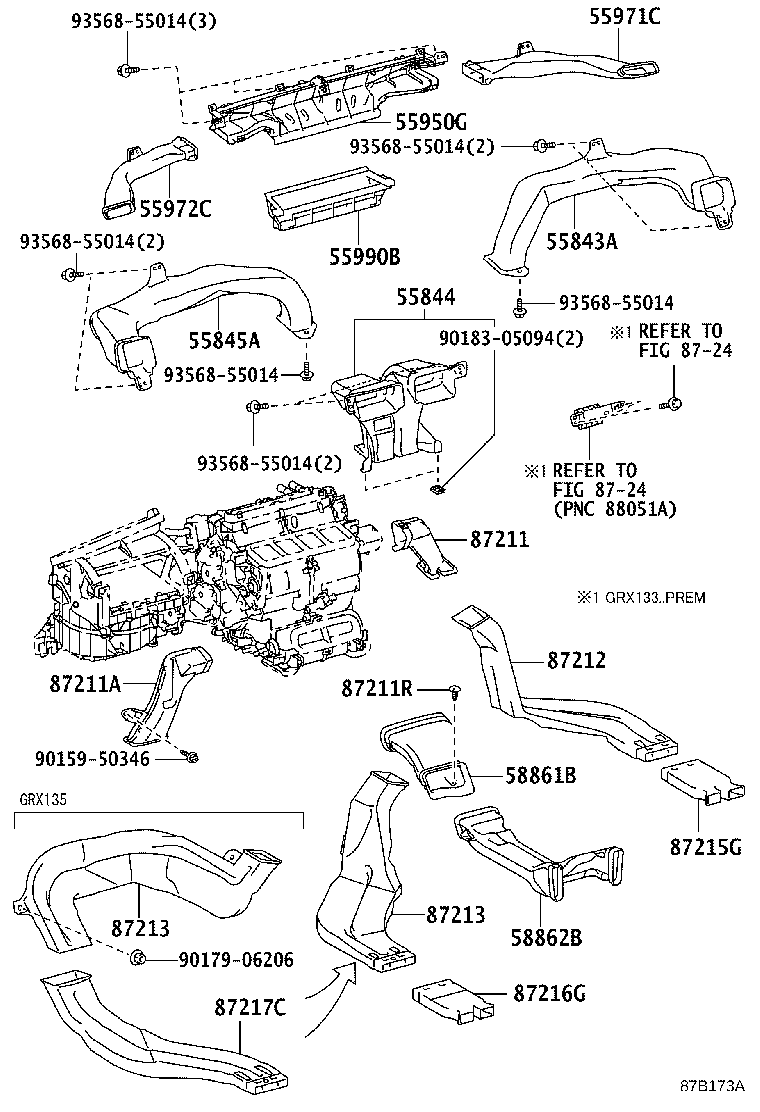

Heating & Air Conditioning - Control & Air Duct
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55900 | Control Assy, Air Conditioner |
| 55902C | Panel Sub-assy, Air Conditioner |
| 55904A | Housing Sub-assy, Heater Control |
| 55921A | Retainer, Heater Control |
| 55942 | Guard, Heater Control |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 55990B | Nozzle Assy, Defroster, Lower |
| 58861B | Duct, Console Box, NO.1 |
| 58862B | Duct, Console Box, NO.2 |
| 86442A | Board, Heater Control Switch |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211R | Clip, Air Duct |
| 87212 | Duct, Air, Rear NO.1 |
| 87212B | Clip, Air Duct |
| 87213 | Duct, Air, Rear NO.2 |
| 87215G | Guide, Air Duct, Rear RH |
| 87216G | Guide, Air Duct, Rear LH |
| 87217C | Duct, Air, Rear NO.5 |

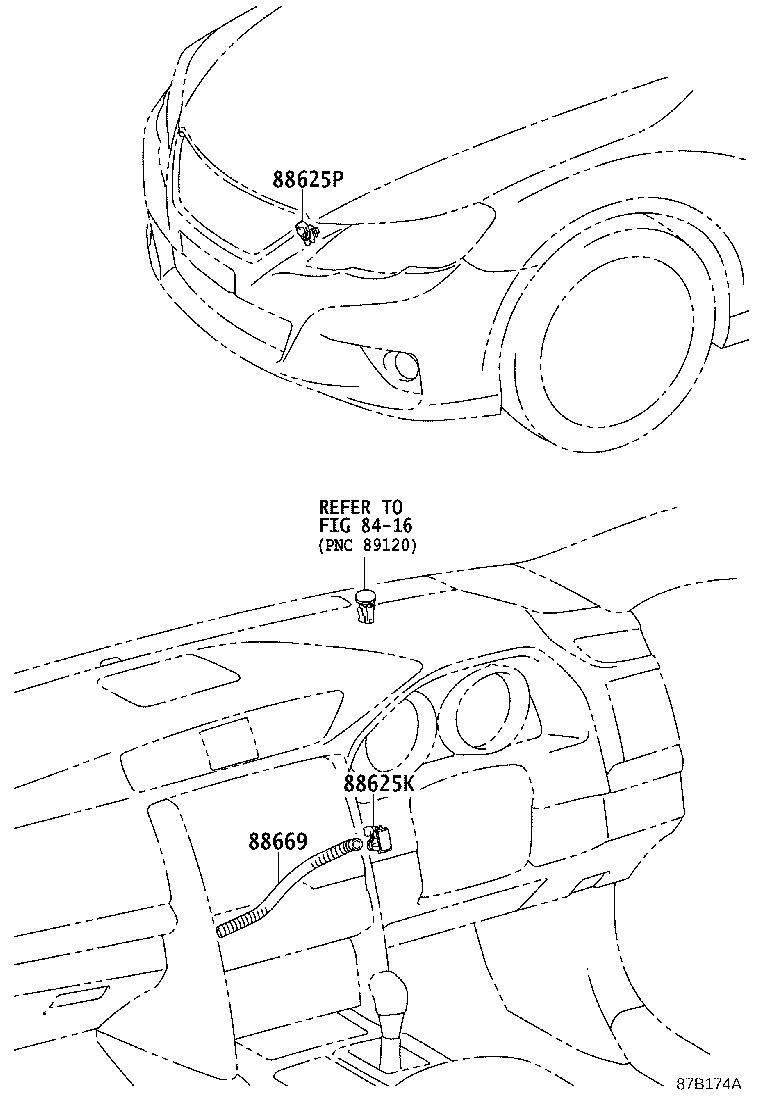

| 88625K | Thermistor, Cooler |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88669 | Hose, Cooler Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
