Toyota Chaser

1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

10 part groups · 7 illustrations

Illustrations

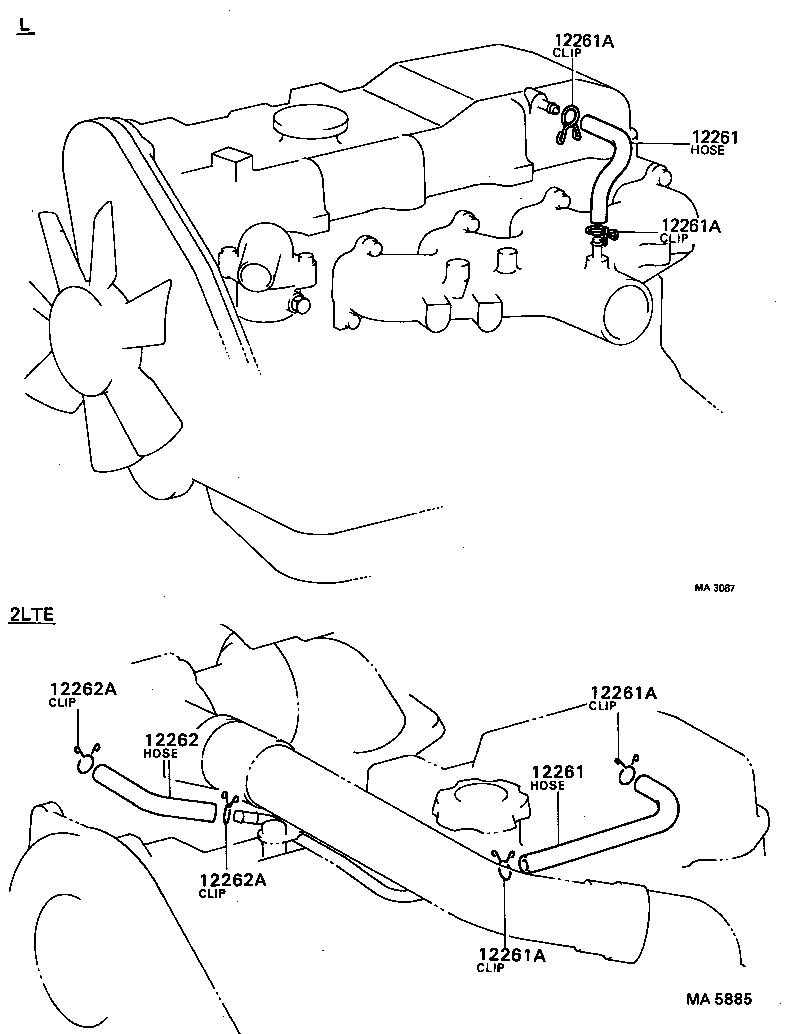

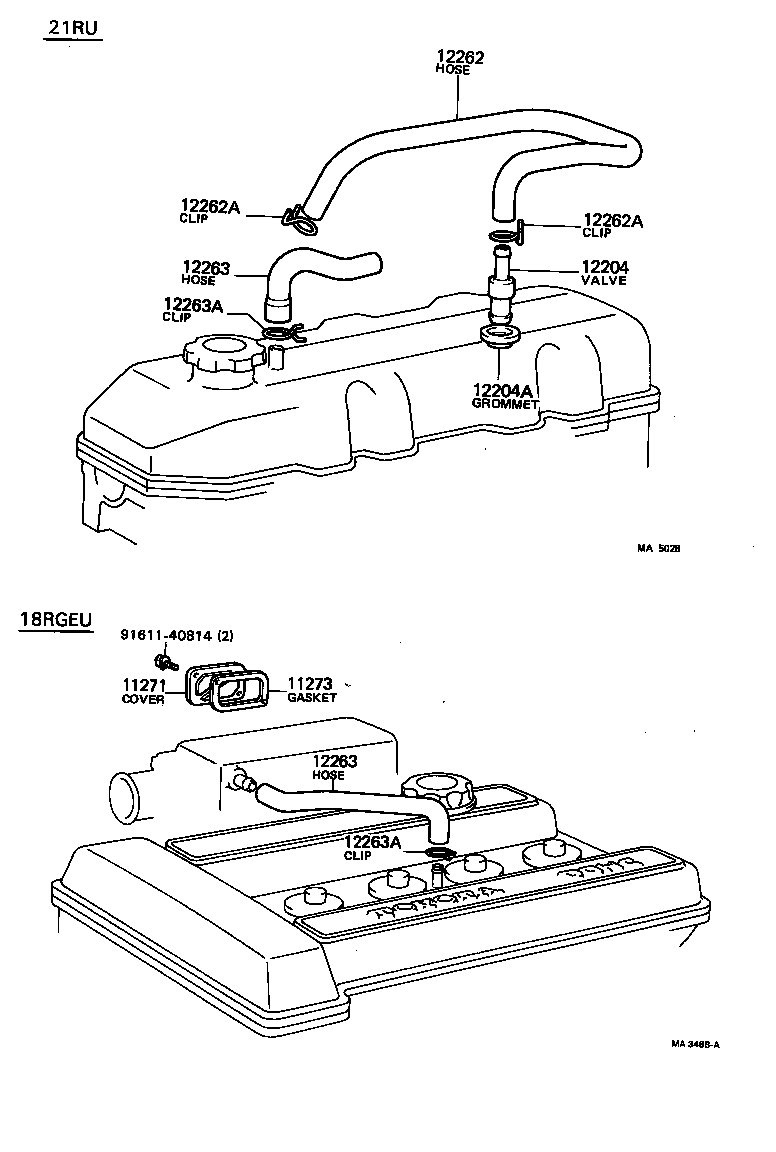

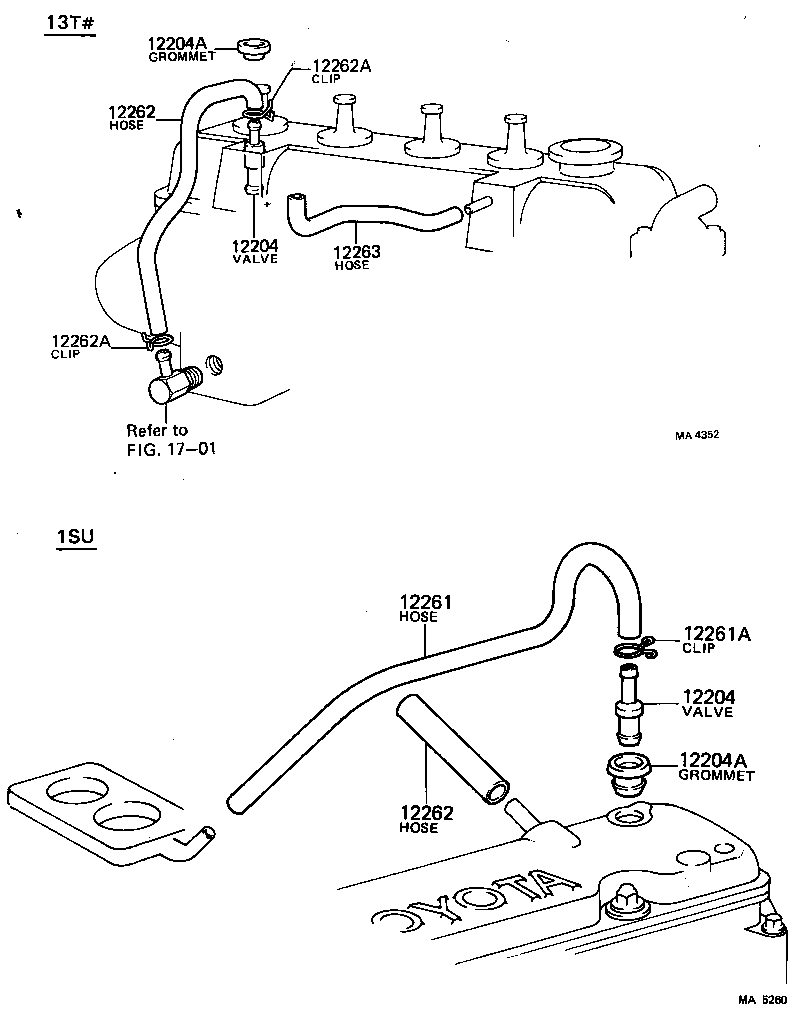

Figure AS0324 AS0324 1980-09 → — Figure AS0364 AS0364 1980-09 → — Figure MA5533A MA5533A 1981-10 → — Figure AS0243B AS0243B 1980-09 → 1982-08 Figure AS0242A AS0242A 1980-09 → — Figure MA6177A MA6177A 1983-02 → — Figure AS0242A AS0242A 1980-09 → —

Part groups

PNCDescription
11271 Cover, Cylinder Block Side
12203 Pipe Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
