Toyota Chaser

1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

9 part groups · 7 illustrations

Illustrations

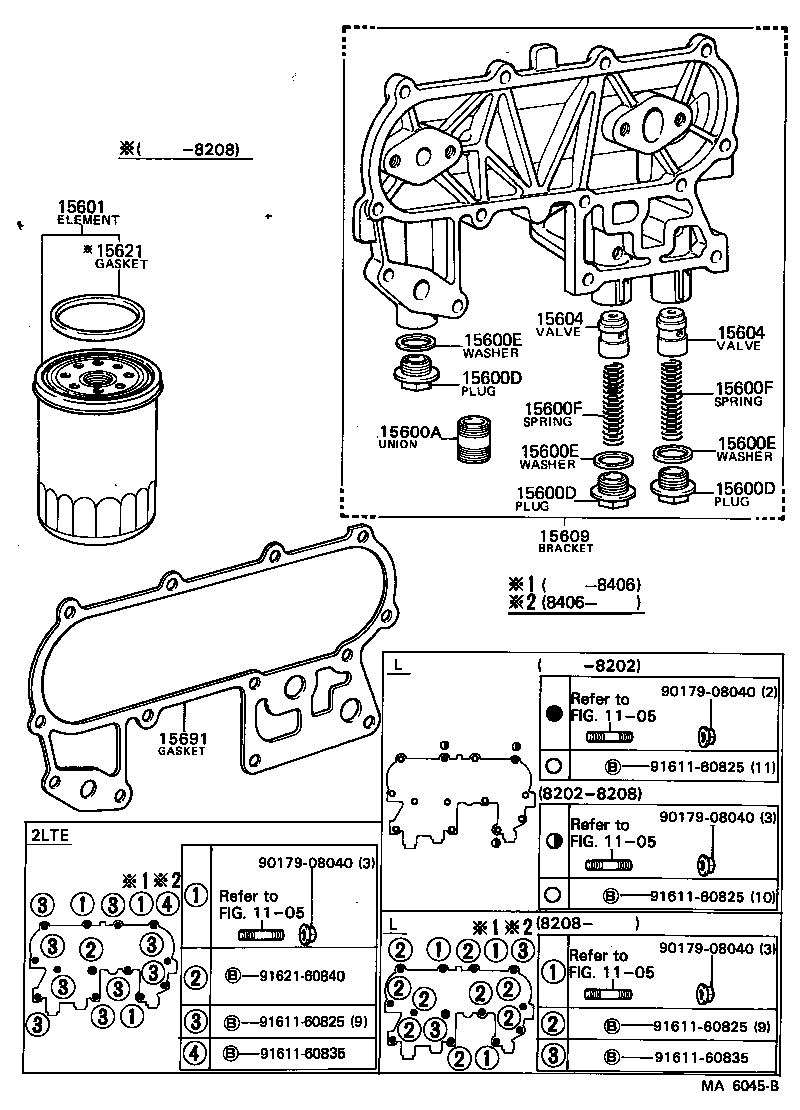

Figure MA5032B MA5032B 1980-09 → — Figure MA6045B MA6045B 1980-09 → — Figure MA5032B MA5032B 1980-09 → — Figure MA5032B MA5032B 1980-09 → — Figure MA5032B MA5032B 1980-09 → — Figure MA6182 MA6182 1983-02 → — Figure MA5032B MA5032B 1980-09 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15621 Gasket, Oil Filter Body
15691 Gasket, Oil Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
