Toyota Chaser
1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan
Discontinued model
Data version 1985-03
Manifold
77 part groups · 12 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15407A | Bolt, Union(FOR TURBO OIL INLET PIPE) |
| 15407B | Gasket(FOR TURBO OIL INLET PIPE) |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15473 | Gasket, Turbo Oil Outlet, NO.2 |
| 15474 | Pipe, Turbo Oil Outlet |
| 15474A | Hose, Turbo Oil Outlet |
| 15474B | Clamp OR Clip(FOR TURBO OIL OUTLET HOSE) |
| 15475 | Deflector, Oil |
| 16194 | Bolt, Stud(FOR WATER OUTLET SETTING) |
| 16265 | Hose, Intake Manifold Water |
| 16265A | Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER) |
| 16305 | Outlet Sub-assy, Water By-pass |
| 16347 | Gasket, Water By-pass |
| 16353 | Flange, Water By-pass |
| 17021A | Bolt, Stud(FOR BEARING HOUSING) |
| 17025A | Bolt, Stud(FOR TURBINE HOUSING) |
| 17110A | Union, Vacuum Hose |
| 17110B | Union(FOR VENTILATION HOSE TO MANIFOLD) |

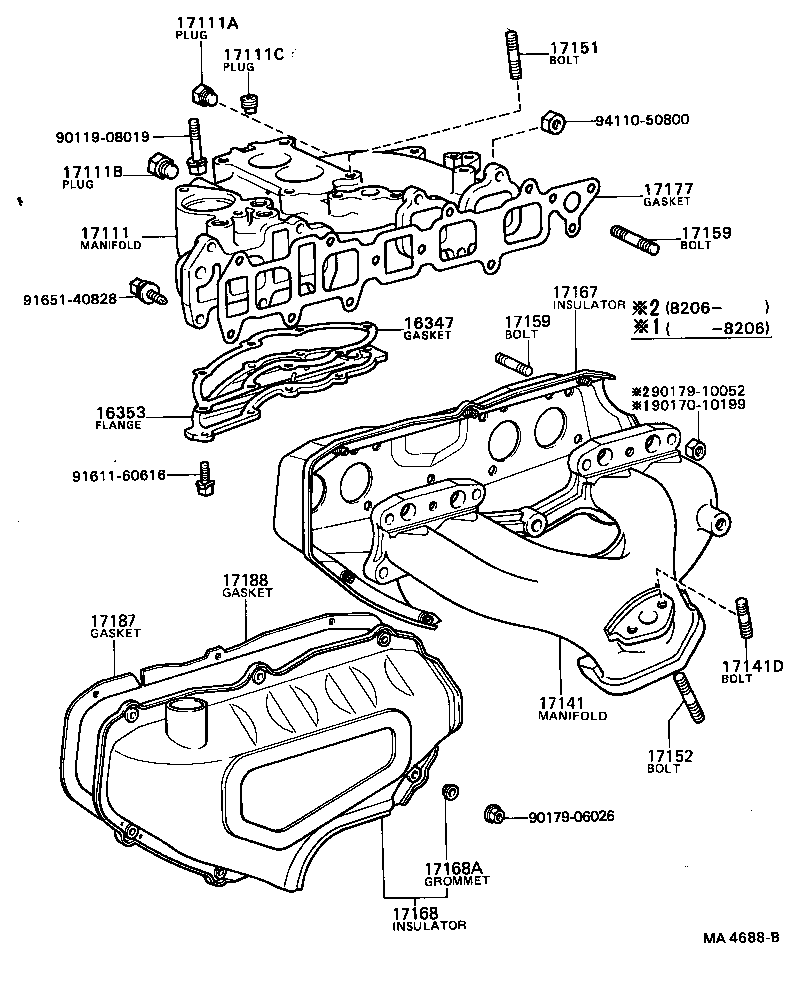

| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111B | Plug, NO.2 |
| 17111C | Plug, NO.3 |
| 17111G | Union(FOR INTAKE MANIFOLD WATER) |
| 17111H | Union(FOR INTAKE MANIFOLD WATER) |
| 17111V | Pin, Straight(FOR INTAKE MANIFOLD SETTING) |
| 17114A | Flange, Intake |
| 17114B | Gasket, Intake Flange |
| 17118 | Stay, Manifold |
| 17118A | Bolt, Stud(FOR MANIFOLD STAY) |
| 17119 | Stay, Manifold, NO.2 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17126 | Stay, Surge Tank, NO.2 |

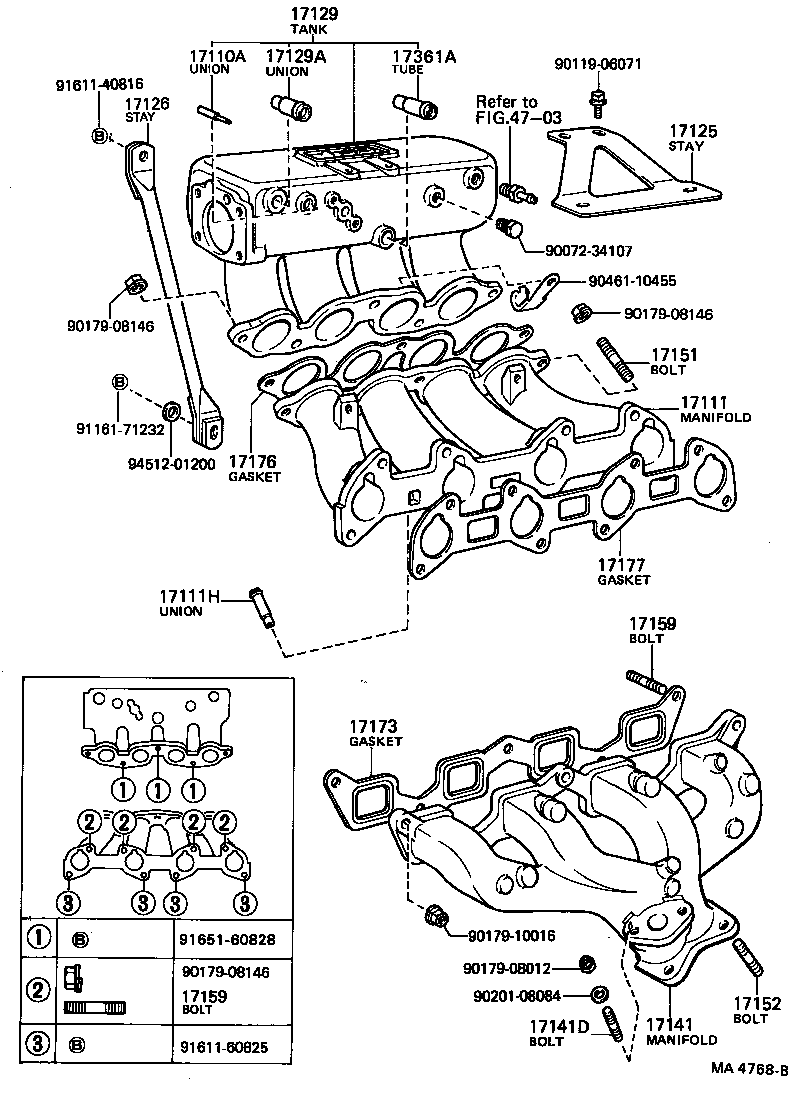

| 17129 | Tank, Intake Air Surge |
| 17129A | Union, NO.1 |
| 17129B | Plug |
| 17129D | Union, NO.2 |
| 17129E | Union, NO.3 |
| 17129F | Plug, Intake Manifold Suction Hole |
| 17129G | Tube, Egr Inlet |
| 17129H | Union, NO.4 |
| 17129J | Plug, Tight(FOR INTAKE AIR SURGE TANK) |
| 17129M | Bolt, Stud(FOR COLD START INJECTOR) |

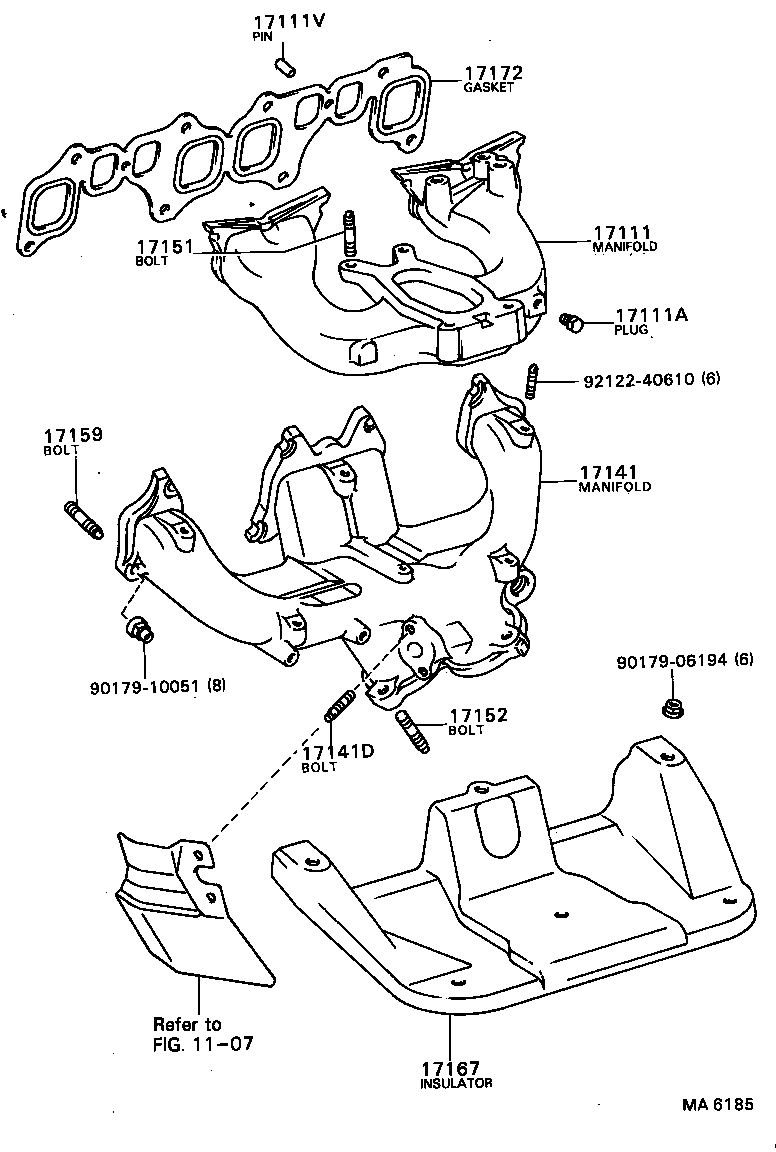

| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17141G | Bolt, Stud(FOR TURBOCHARGER) |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17151A | Bolt, Stud(FOR MANIFOLD TO VENTURI) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17168A | Grommet(FOR EXHAUST MANIFOLD HEAT INSULATOR) |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17179A | Gasket, Intake Manifold, NO.2 |
| 17187 | Gasket, Heat Insulator, NO.1 |
| 17188 | Gasket, Heat Insulator, NO.2 |

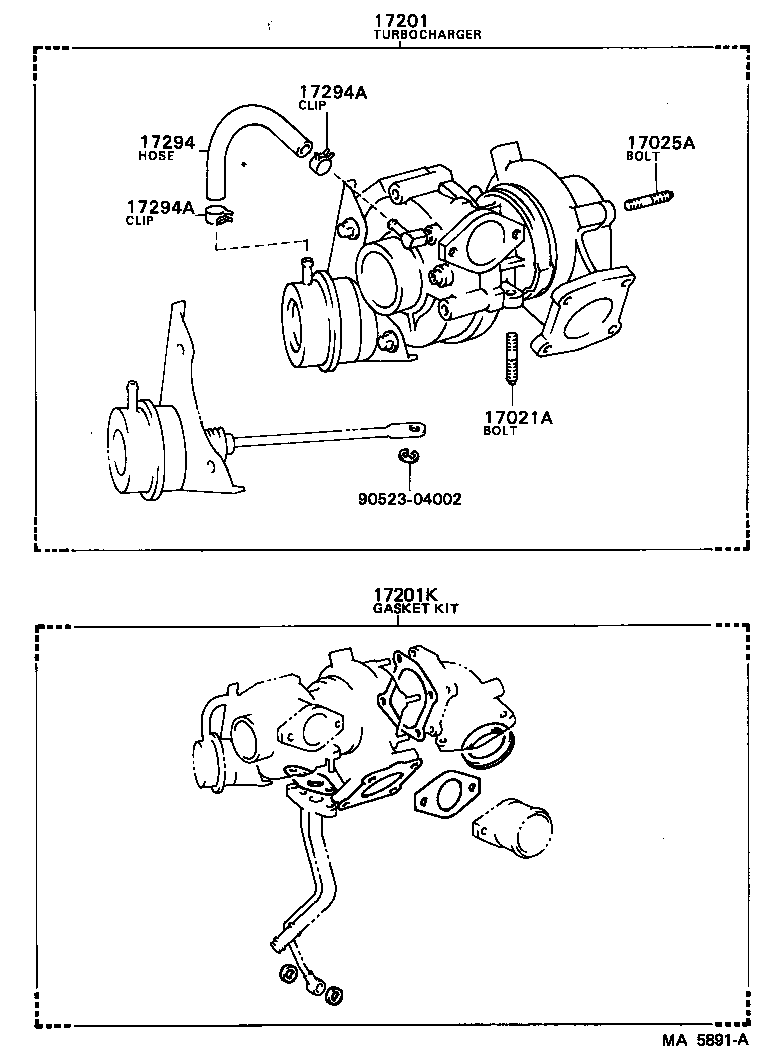

| 17201 | Turbocharger Sub-assy |
| 17201K | Gasket Kit, Turbocharger |
| 17271 | Insulator, Turbo, NO.1 |
| 17272 | Insulator, Turbo, NO.2 |
| 17274 | Elbow, Compressor Inlet |
| 17275 | Elbow, Compressor Outlet |
| 17276 | Gasket, Compressor Inlet |
| 17277 | Gasket, Compressor Outlet |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17291 | Elbow, Turbine Outlet |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17300 | Valve Assy, Intake Air Control |
| 17344B | Union(FOR AIR HOSE) |
| 17361A | Tube, Air(FOR EFI) |
