Toyota Chaser

1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

63 part groups · 13 illustrations

Illustrations

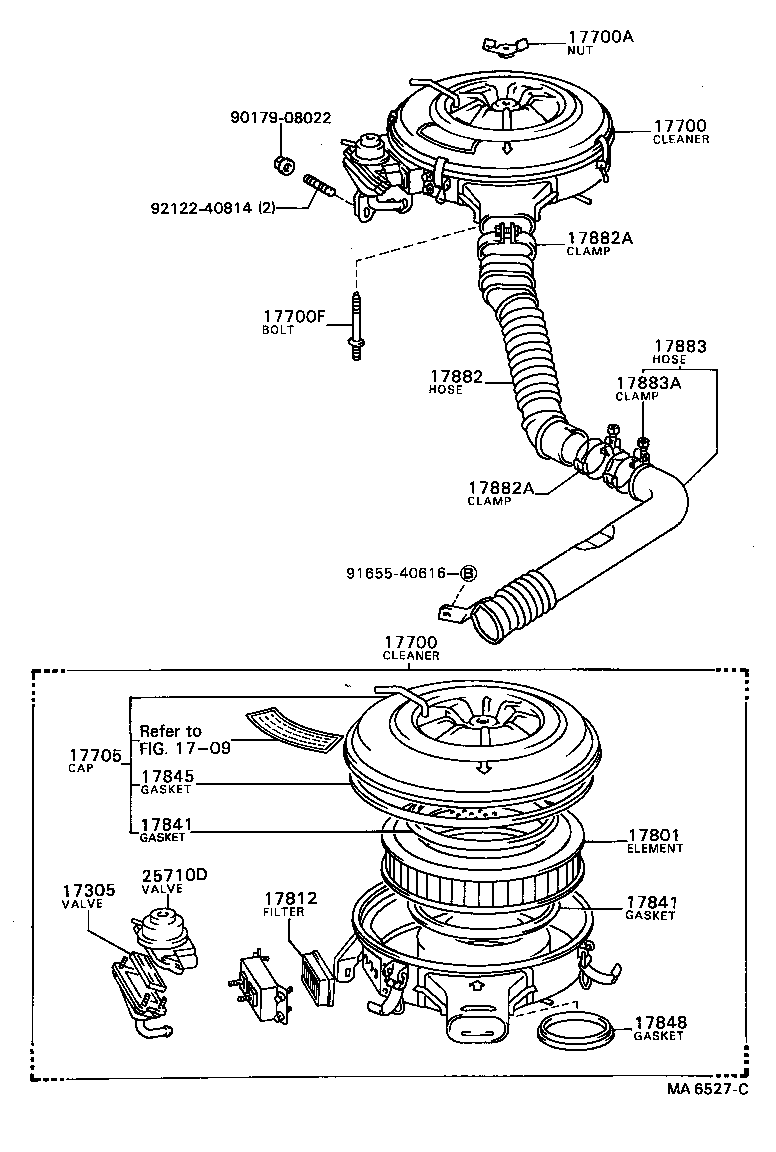

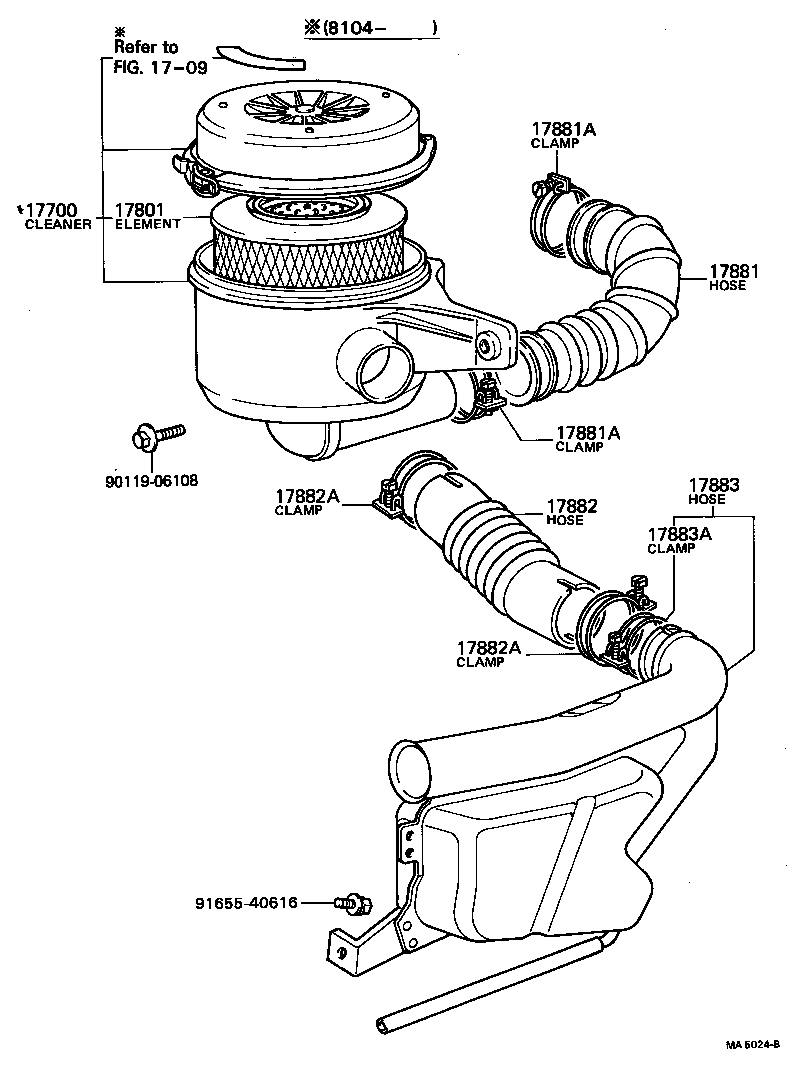

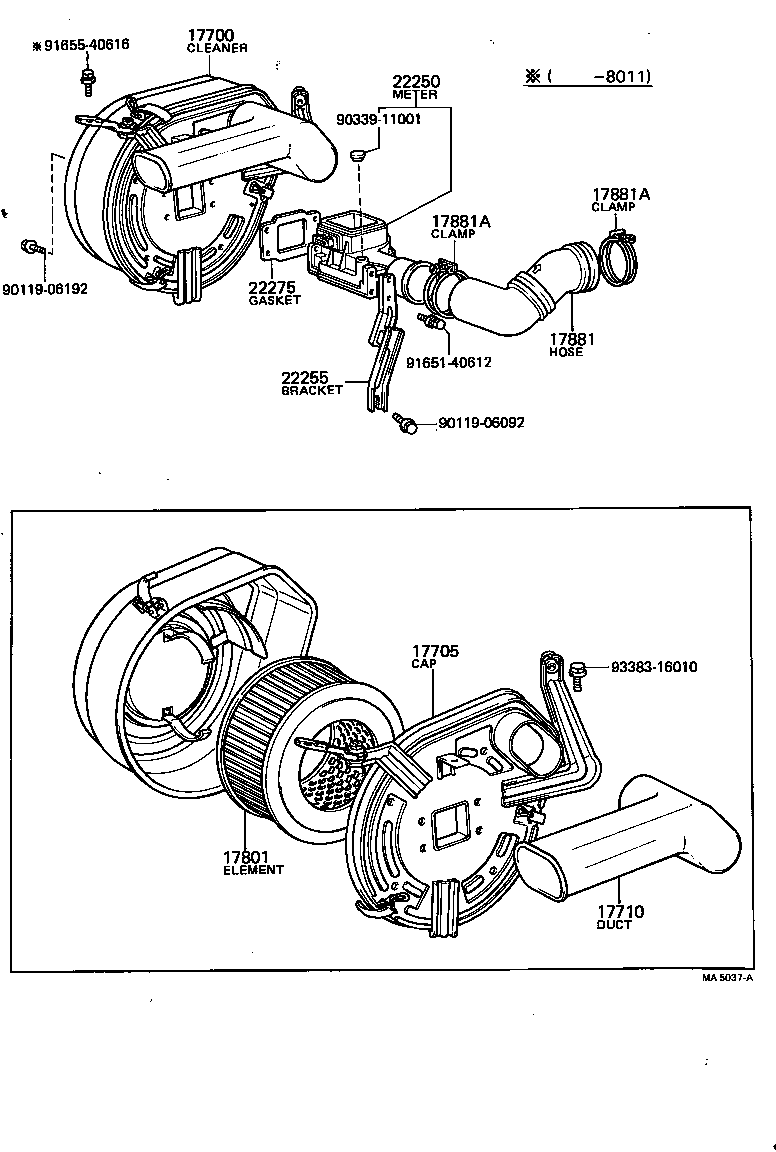

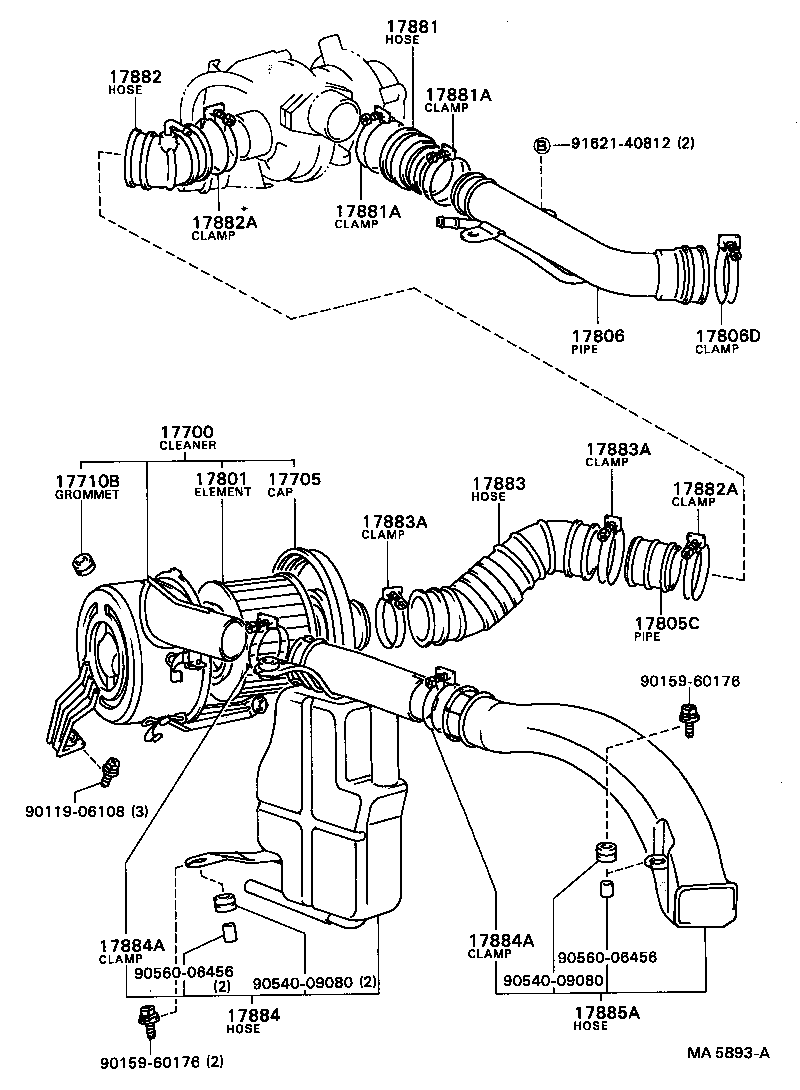

Figure MA4488A MA4488A 1980-09 → 1981-12 Figure MA5919 MA5919 1981-12 → — Figure MA6039A MA6039A 1982-08 → — Figure MA5024B MA5024B 1980-09 → 1982-08 Figure MA5892A MA5892A 1982-08 → — Figure MA5893A MA5893A 1982-08 → — Figure MA5537D MA5537D 1981-10 → — Figure MA5540A MA5540A 1981-10 → — Figure MA5033B MA5033B 1980-09 → 1982-08 Figure MA5037A MA5037A 1980-09 → 1982-08 Figure MA5940B MA5940B 1982-08 → — Figure MA6527C MA6527C 1983-02 → — Figure MA4964B MA4964B 1980-09 → 1982-08

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17305 Valve Sub-assy, Reed
17670C Valve Assy, Air By-pass
17670D Hose, Air, NO.1(FOR AIR BY-PASS VALVE)
17670E Hose, Air, NO.2(FOR AIR BY-PASS VALVE)
17670F Hose, Air, NO.3(FOR AIR BY-PASS VALVE)
17670G Clip(FOR AIR HOSE NO.1)
17670H Clip(FOR AIR HOSE NO.2)
17670J Clip(FOR AIR HOSE NO.3)
17670M Hose, Air, NO.4(FOR AIR BY-PASS VALVE)
17670N Clip(FOR AIR HOSE NO.4)
17680D Valve Assy, Mixture Control
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700T Bolt, Stud(FOR AIR CLEANER)
17700V Bush(FOR AIR CLEANER)
17700W Spacer(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17710 Duct Sub-assy, Air Cleaner Inlet, NO.1
17710B Grommet
17728 Valve, Thermostatic
17728A Bush
17729 Gasket, Thermostat Valve
17749 Support, Thermostat Valve
17757 Guide, Air Cleaner Outlet
17786 Clamp, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17801A Prefilter
17805C Pipe Sub-assy, Air Cleaner, NO.1
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806D Clamp(FOR AIR CLEANER PIPE)
17812 Filter, Air Cleaner, NO.2
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17853 Insulator, Air Cleaner Bracket
17856 Gasket, Air Intake Flange
17861 Connector, Intake Air
17861C Cap(FOR INTAKE AIR CONNECTOR)
17875 Pipe, Intake Air Connector
17876 Flange, Air Intake
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17885A Hose, Air Cleaner, NO.5
17908 Filter Sub-assy, Air Suction
17991 Case, Air Suction Filter
22231 Hose, Throttle Body
22231A Clamp OR Clip(FOR THROTTLE BODY HOSE)
22250 Meter Assy, Intake Air Flow
22255 Bracket, Air Flow Meter
22275 Gasket, Air Flow Meter
23285B Valve, Check, NO.1
25710D Valve Assy, Air Switching
25717 Gasket, Air Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
