Toyota Chaser

1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

22 part groups · 5 illustrations

Illustrations

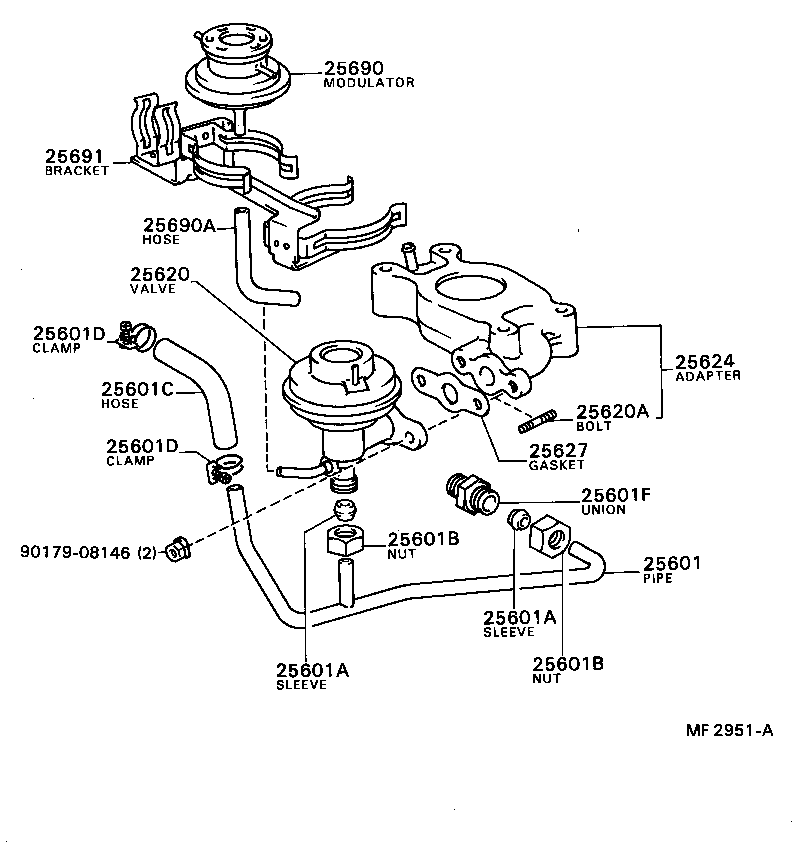

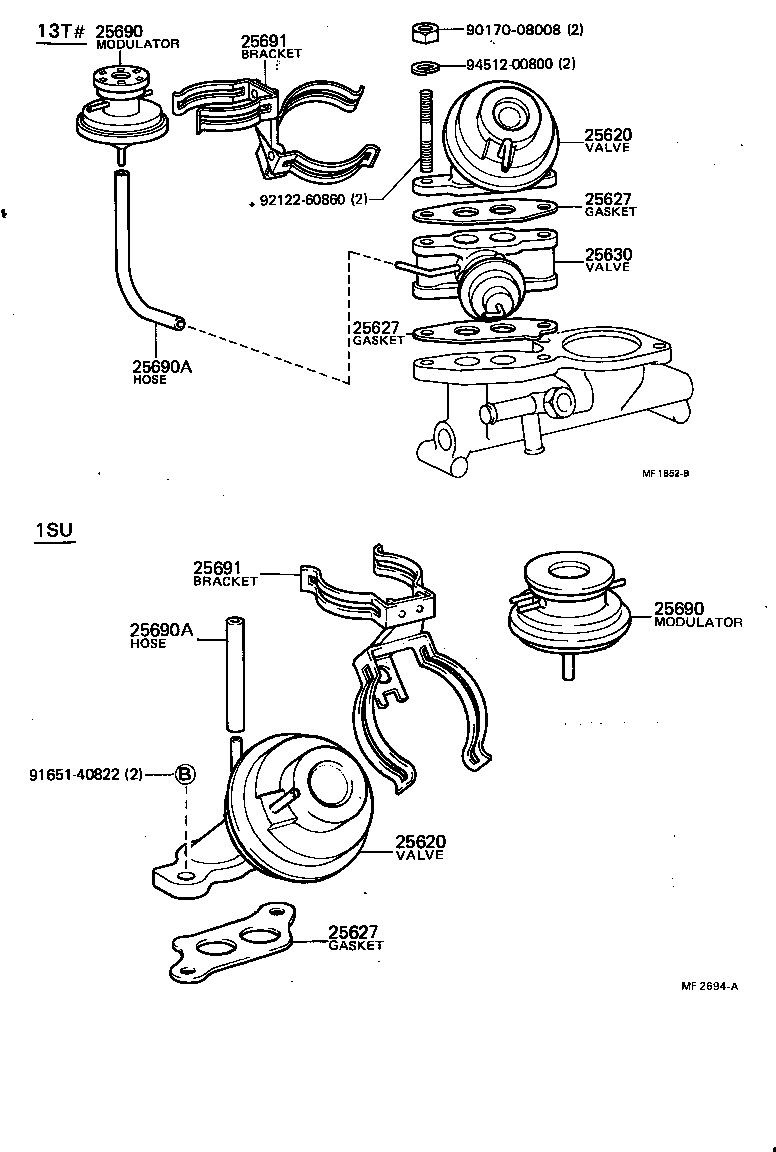

Figure AS0326A AS0326A 1980-09 → — Figure AS0326A AS0326A 1980-09 → — Figure AS0248C AS0248C 1980-09 → — Figure MF2951A MF2951A 1983-02 → — Figure AS0248C AS0248C 1980-09 → —

Part groups

PNCDescription
22235 Inlet, Auxiliary Air
25601 Pipe Sub-assy, Egr, NO.1
25601A Sleeve, Ball, Egr Pipe, NO.1
25601B Nut, Union, Egr Pipe, NO.1
25601C Hose(FOR EGR PIPE, NO.1)
25601D Clip OR Clamp(FOR EGR PIPE, NO.1)
25601F Union(FOR EGR PIPE, NO.1)
25617 Plate, Egr Hole Cover
25618A Bolt, Stud(FOR EGR INLET)
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25624 Adapter, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25630 Valve Assy, Egr, NO.2
25681 Cooler, Egr, NO.1
25682 Cooler, Egr, NO.2
25685 Gasket, Egr Cooler, NO.1
25686 Gasket, Egr Cooler, NO.2
25690 Modulator Assy, Egr Vacuum
25690A Hose(FOR EGR VACUUM MODULATOR)
25691 Bracket, Egr Vacuum Modulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
