Toyota Chaser

1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 2 illustrations

Illustrations

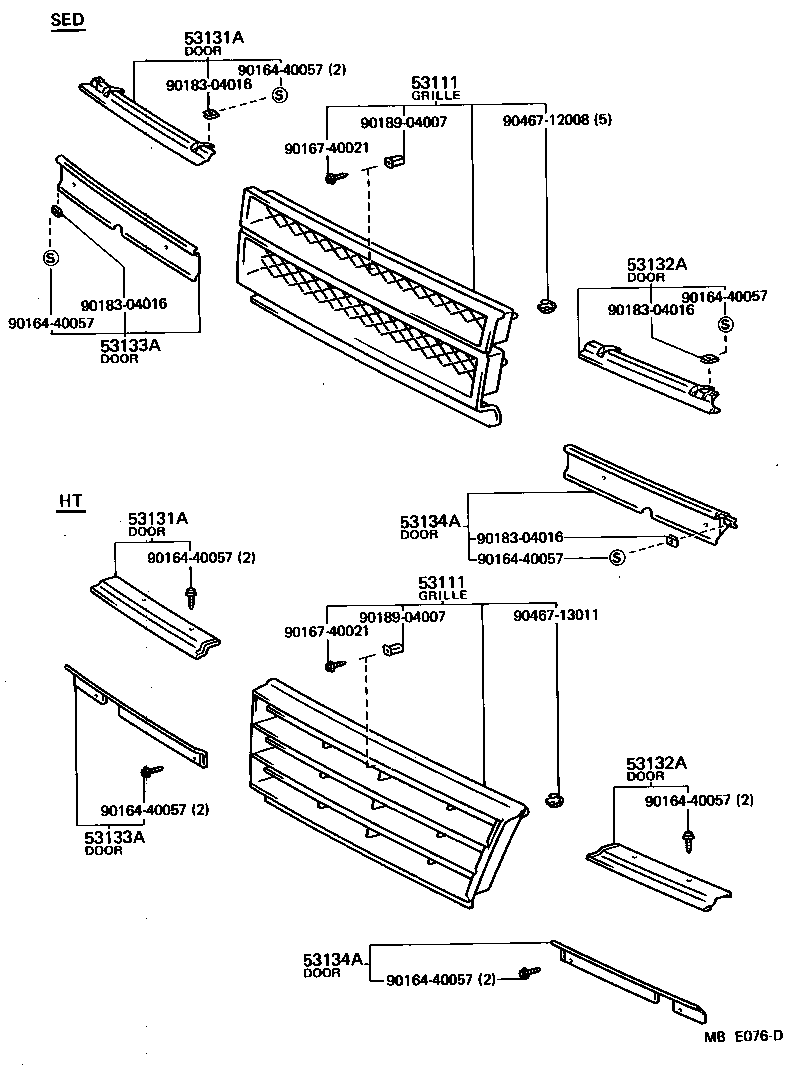

Figure MBC100B MBC100B 1980-09 → 1982-08 Figure MBE076D MBE076D 1982-08 → —

Part groups

PNCDescription
53111 Grille, Radiator
53111C Moulding, Radiator Grille, Upper
53111G Moulding, Radiator Grille, Lower
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
53133A Door, Headlamp, Lower RH
53134A Door, Headlamp, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
