Toyota Chaser
1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan
Discontinued model
Data version 1985-03

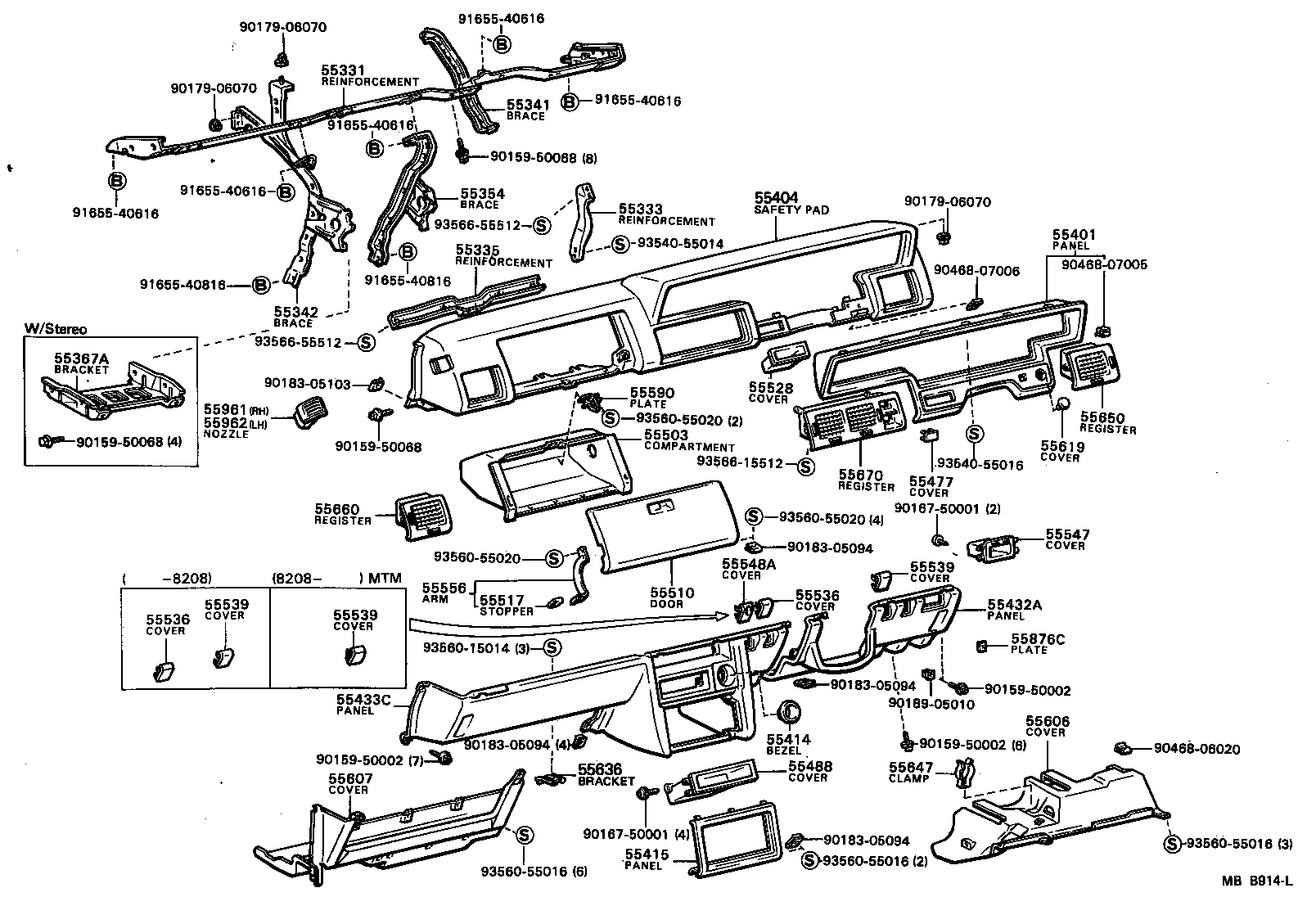

Instrument Panel & Glove Compartment
48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55331 | Reinforcement, Instrument Panel |
| 55333 | Reinforcement, Instrument Panel, NO.3 |
| 55335 | Reinforcement, Instrument Panel, Upper |
| 55341 | Brace, Instrument Panel, NO.1 |
| 55342 | Brace, Instrument Panel, NO.2 |
| 55354 | Brace, Instrument Panel TO Floor |
| 55367A | Bracket, Stereo Mounting |
| 55378A | Bracket, Glove Compartment Door Lock Mounting |
| 55401 | Panel Sub-assy, Instrument Cluster Finish |
| 55404 | Safety Pad Sub-assy, Instrument Panel, Upper |
| 55414 | Bezel, Cigar Lighter Hole |
| 55415 | Panel, Instrument Cluster Finish, Center |
| 55423 | Panel, Stereo Player Finish |
| 55423A | Panel, Radio Tuner Finish |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55434A | Panel, Instrument Finish, Lower Sub |
| 55447A | Base, Lpg Switch Hole |
| 55453 | Cover, Radio Tuner Opening |
| 55477 | Cover, Overdrive Knob Hole |
| 55488 | Cover, Stereo Opening |
| 55503 | Compartment Sub-assy, Glove |
| 55510 | Door Assy, Glove Compartment |
| 55517 | Stopper, Glove Compartment Door Arm |
| 55524 | Cover, Switch Bace Hole |
| 55527B | Cover, Diesel Throttle Knob Hole |
| 55528 | Cover, Auto Drive Opening |
| 55536 | Cover, Rear Window Wiper Switch Hole |
| 55537 | Cover, Rear Window Defogger Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55548 | Cover, Fuel Lid Opener Opening |
| 55548A | Cover, Instrument Panel Hole |
| 55556 | Arm, Glove Compartment Door Check |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55619 | Cover, Switch Hole |
| 55632 | Support, Instrument Panel Under Tray, NO.1 |
| 55636 | Bracket, Instrument Panel Under Cover, NO.1 |
| 55647 | Clamp, Instrument Panel Under Cover |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55876C | Plate,Side Ventilator Control Name, NO.2 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
