Toyota Chaser

1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Ventilator

3 part groups · 2 illustrations

Illustrations

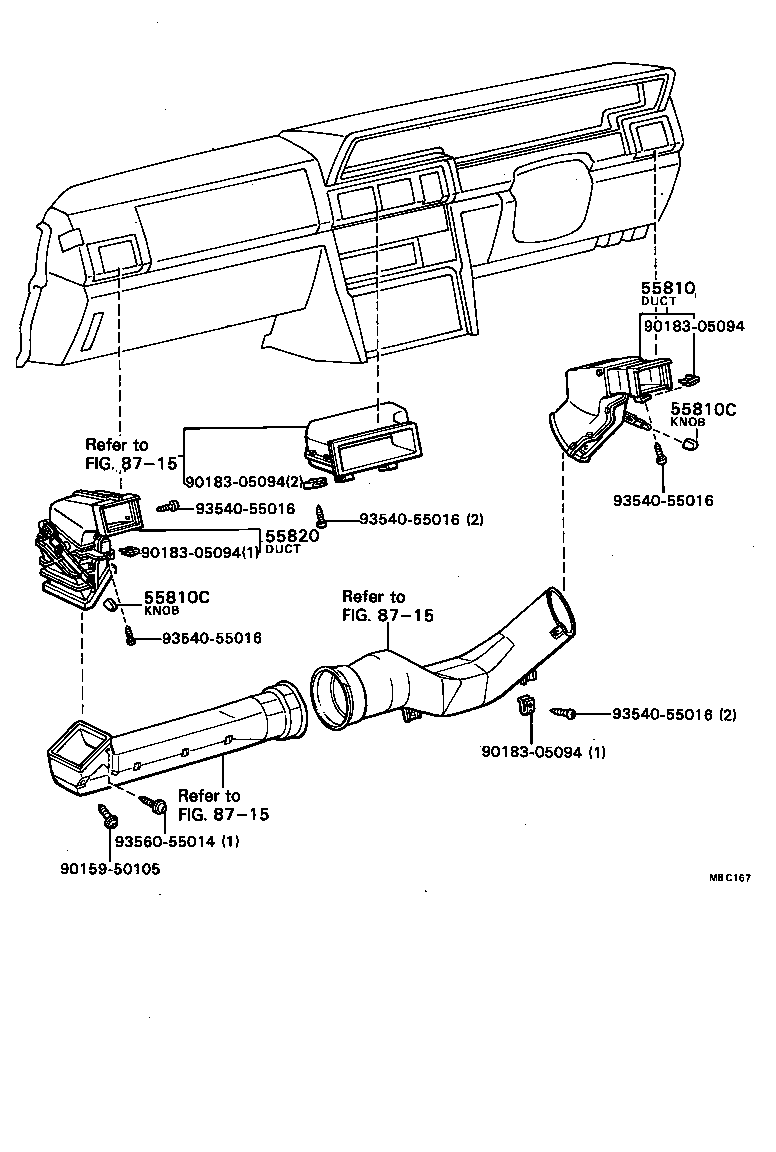

Figure MBB918B MBB918B 1980-09 → — Figure MBC167 MBC167 1980-09 → —

Part groups

PNCDescription
55810 Duct Assy, Side Ventilator, RH
55810C Knob Sub-assy, Control(FOR VENTILATOR DUCT)
55820 Duct Assy, Side Ventilator, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
