Toyota Chaser
1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan
Discontinued model
Data version 1985-03

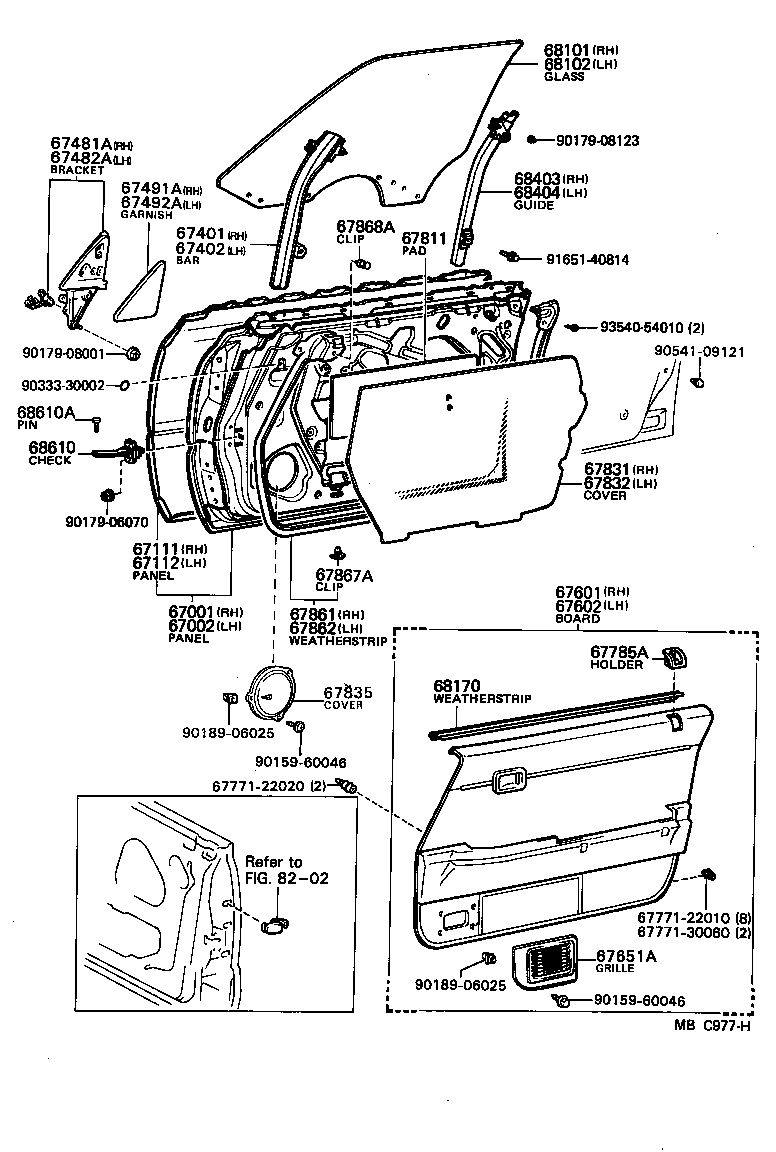

Front Door Panel & Glass
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67139 | Lining, Door Outside Panel Reinforcement |
| 67401 | Bar Sub-assy, Front Door Window, Front RH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402 | Bar Sub-assy, Front Door Window, Front LH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67481A | Seal, Front Door Front Lower Frame, RH |
| 67482A | Seal, Front Door Front Lower Frame, LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67651A | Grille, Speaker Door |
| 67785A | Holder, Door Locking Button Collar(FOR FRONT DOOR) |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67835 | Cover, Front Door Speaker Hole |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867A | Clip, Door Weatherstrip(FOR FRONT DOOR) |
| 67868A | Clip, Door Glass Weatherstrip(FOR FRONT DOOR) |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141 | Run, Front Door Glass |
| 68143 | Run, Front Door Glass, Lower |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68403 | Guide Sub-assy, Front Door Window, Rear RH |
| 68404 | Guide Sub-assy, Front Door Window, Rear LH |
| 68610 | Check Assy, Front Door |
| 68610A | Pin(FOR FRONT DOOR CHECK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
