Toyota Chaser

1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

21 part groups · 2 illustrations

Illustrations

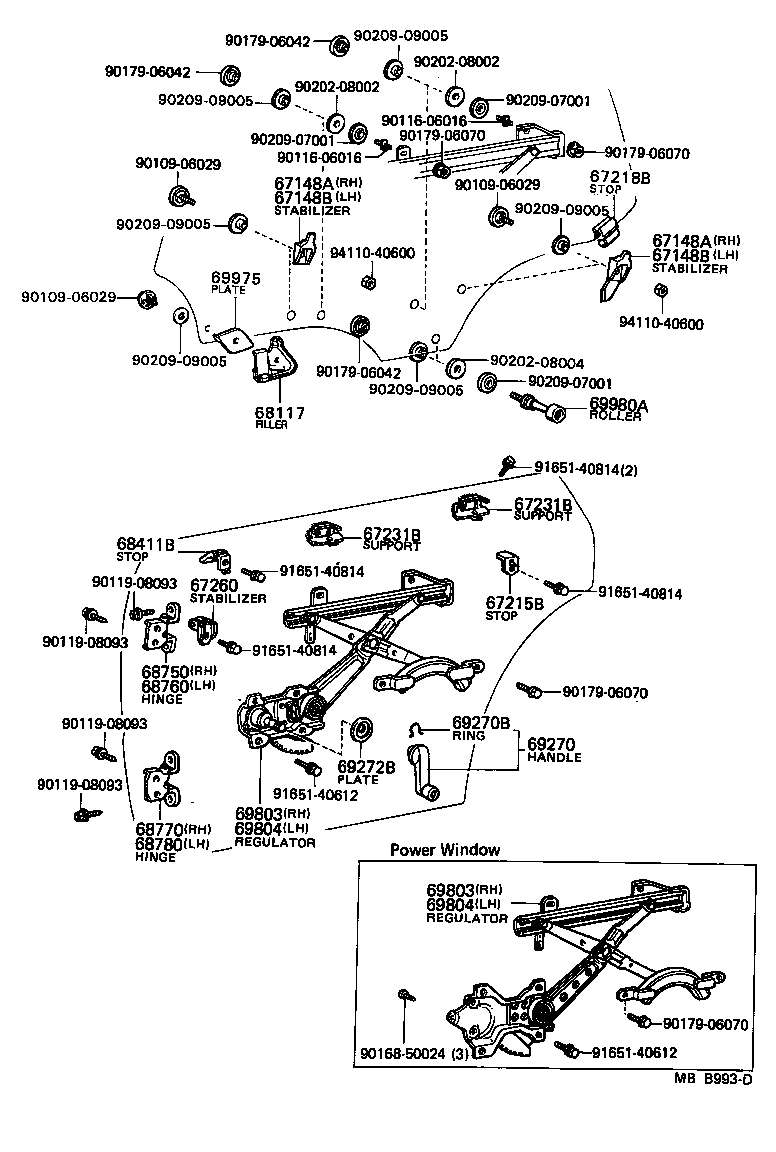

Figure MBB992C MBB992C 1980-09 → — Figure MBB993D MBB993D 1980-09 → —

Part groups

PNCDescription
67148A Stabilizer, Rear Door Glass Male, RH
67148B Stabilizer, Rear Door Glass Male, LH
67215B Stop, Rear Door Window, Upper
67218B Stop, Rear Door Window, Lower Rear
67231B Support, Rear Door Trim
67260 Stabilizer, Rear Door Glass
68117 Plate, Door Glass
68411B Stop, Rear Door Window Glass
68750 Hinge Assy, Rear Door, Upper RH
68760 Hinge Assy, Rear Door, Upper LH
68770 Hinge Assy, Rear Door, Lower RH
68780 Hinge Assy, Rear Door, Lower LH
69270 Handle Assy, Rear Door Window Regulator
69270B Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69272B Plate, Rear Door Regulator Inside Handle
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
69903 Channel Sub-assy, Rear Door Glass, RH
69904 Channel Sub-assy, Rear Door Glass, LH
69975 Filler, Rear Door Glass Bracket
69980A Roller Assy, Rear Door Glass Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
