Toyota Chaser
1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan
Discontinued model
Data version 1985-03

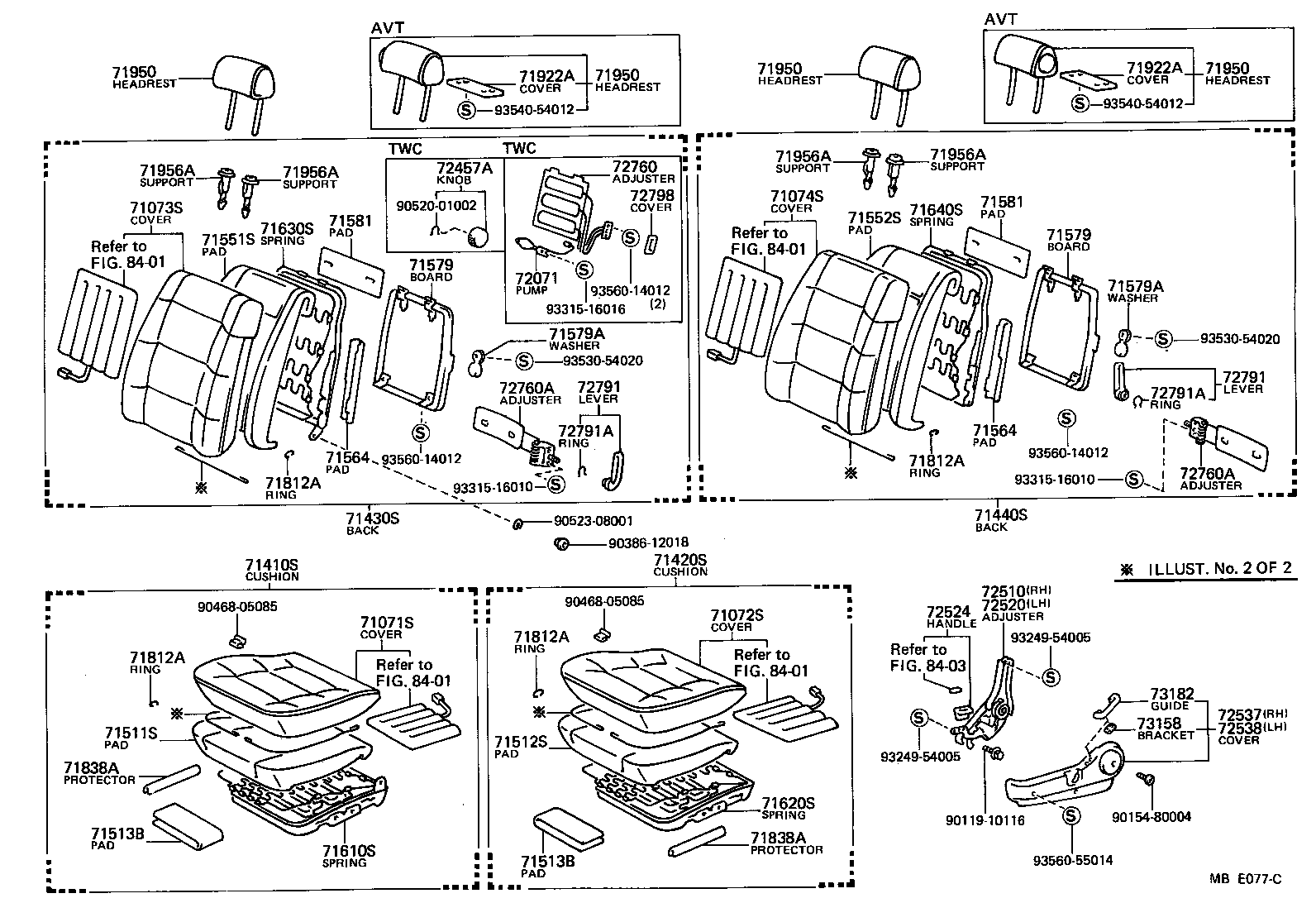

Front Seat & Seat Track
40 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71513B | Pad, Front Seat Cushion, B |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71564 | Pad, Front Seatback, Side |
| 71579 | Board, Front Seatback |
| 71579A | Washer, Front Seatback Board Setting |
| 71581 | Pad, Front Seatback Silencer |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812A | Ring, Hog, Small (FOR FRONT SEAT) |
| 71812D | Shield, Front Seat Cushion, LH |
| 71838A | Protector, Front Seat Cushion Edge |
| 71922A | Cover, Front Seat Headrest Under |
| 71950 | Headrest Assy, Front Seat |
| 71956A | Support, Front Seat Headrest |
| 72071 | Pump Sub-assy, Lumber Support |
| 72457A | Knob, Seat Adjuster |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72524 | Handle, Reclining Adjuster Release |
| 72760 | Adjuster Assy, Lumbar Support, RH |
| 72760A | Adjuster Assy, Lumbar Support |
| 72791 | Lever, Lumbar Support |
| 72791A | Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER) |
| 72798 | Cover, Lumbar Support Switch |
| 73158 | Bracket, Seat Belt Guide Set |
| 73182 | Guide, Front Seat Lap Belt, Outer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
