Toyota Chaser

1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

40 part groups · 7 illustrations

Illustrations

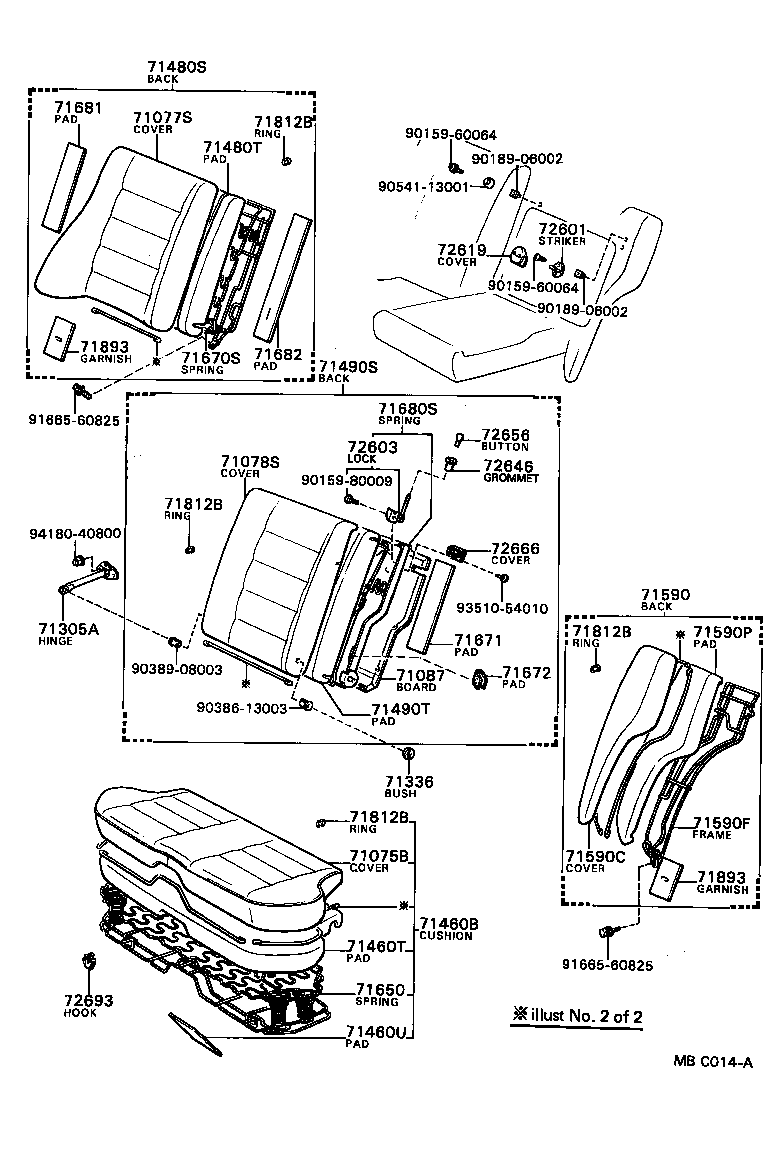

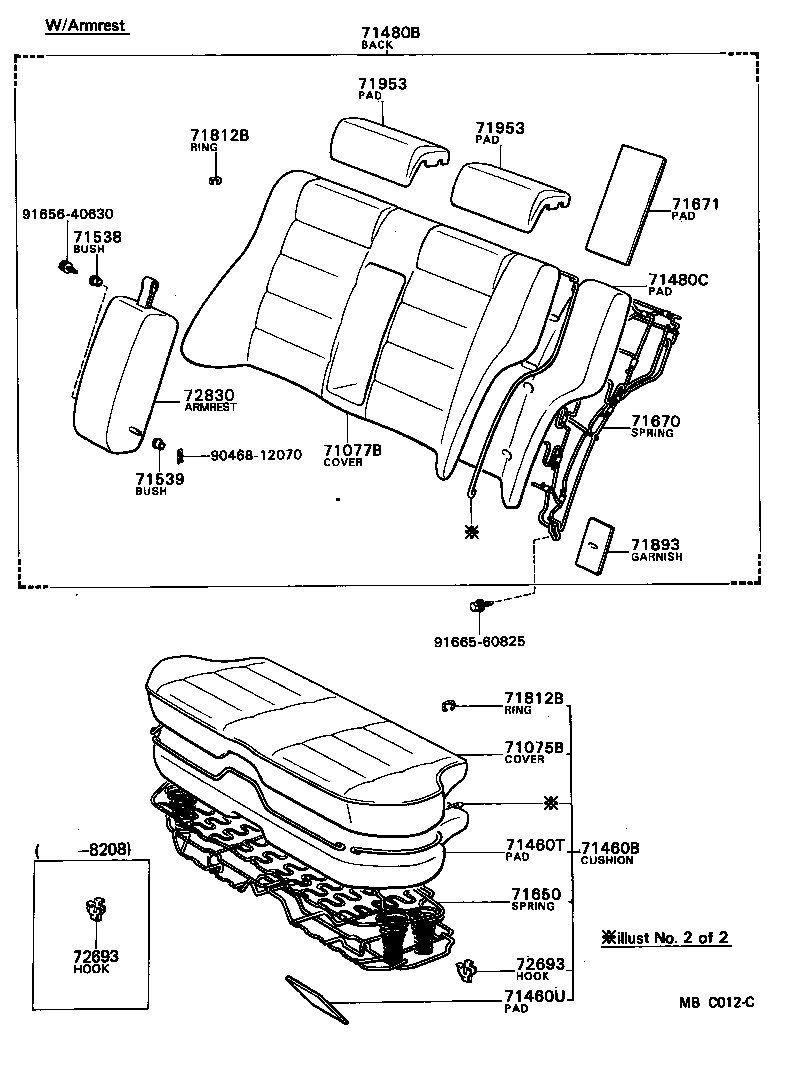

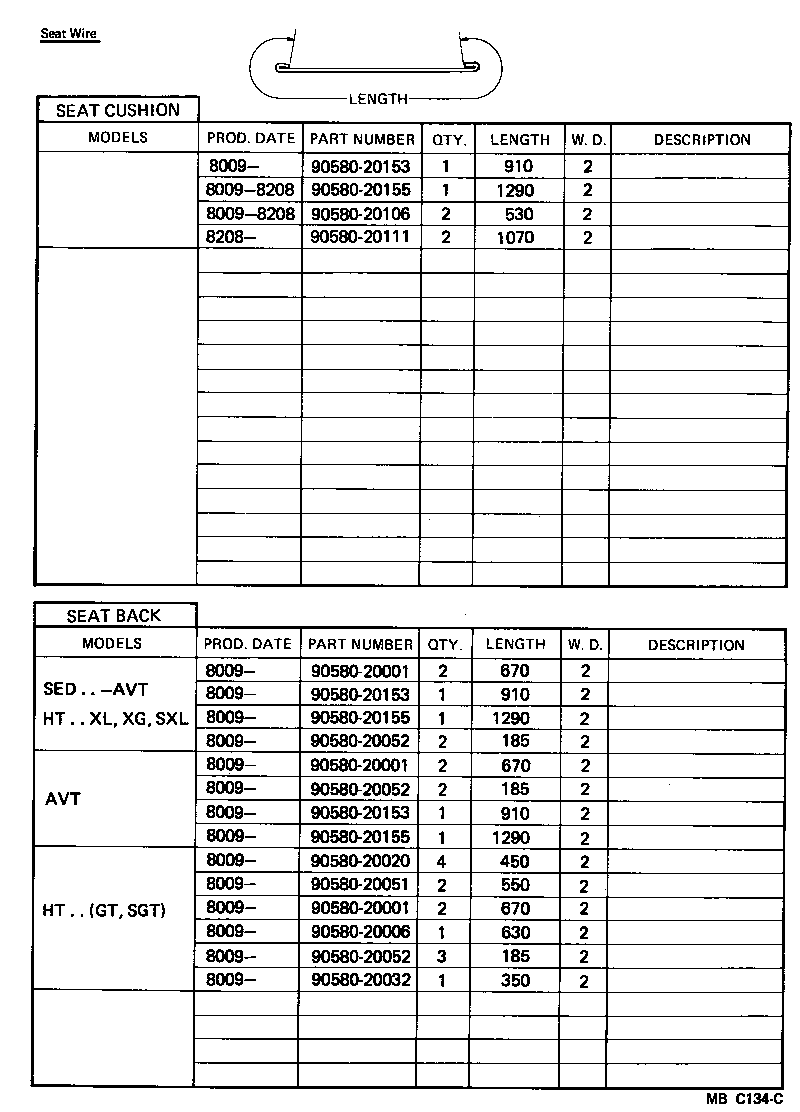

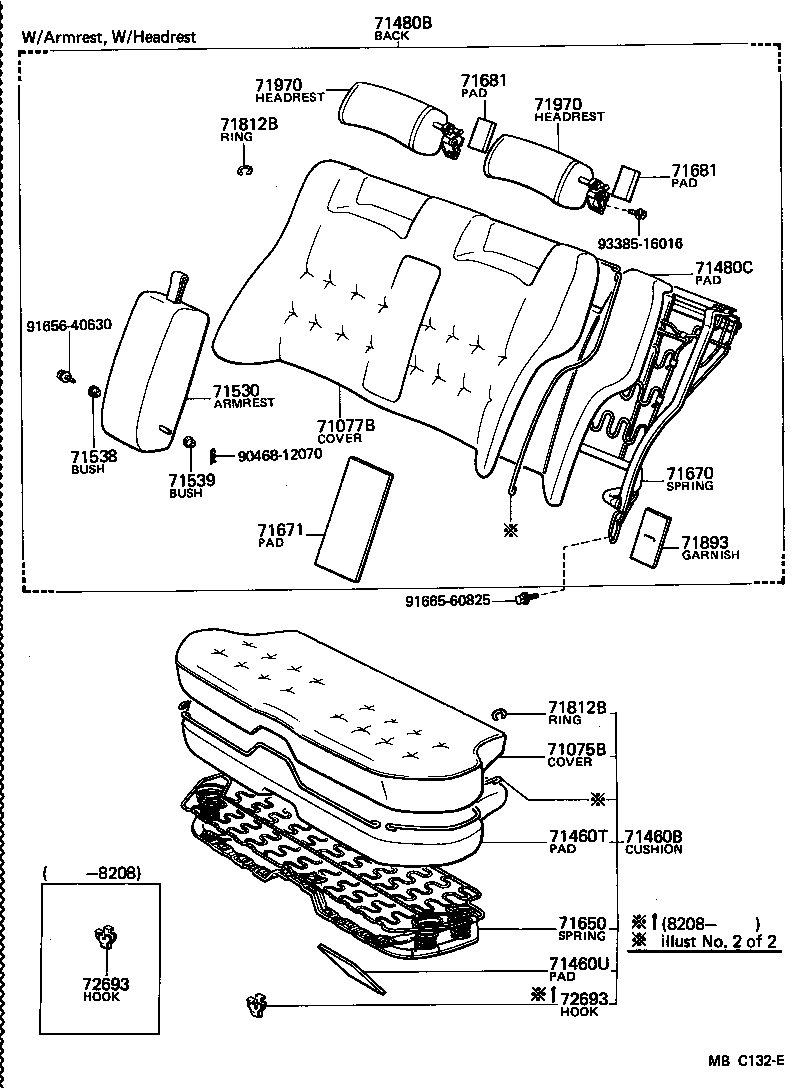

Figure MBC011C MBC011C 1980-09 → — Figure MBC012C MBC012C 1980-09 → 1982-08 Figure MBC012C MBC012C 1982-08 → — Figure MBC132E MBC132E 1980-09 → — Figure MBC132E MBC132E 1982-08 → — Figure MBC014A MBC014A 1980-09 → 1982-08 Figure MBC134C MBC134C 1980-09 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71087 Board Sub-assy, Rear Seatback
71305A Hinge Sub-assy, Rear Seatback, Center
71336 Bush OR Spacer, Rear Seatback Hinge
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460T Pad Sub-assy, Rear Seat Cushion, NO.1
71460U Pad Sub-assy, Rear Seat Cushion, NO.2
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480C Pad Sub-assy, Rear Seatback, NO.1 (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71480T Pad, Rear Seatback, RH (FOR SEPARATE SEAT)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71490T Pad, Rear Seatback, LH (FOR SEPARATE SEAT)
71590 Back Assy, Rear Seatback, LH(FOR SEPARATE SEAT)
71590C Cover Sub-assy, Rear Seatback, LH(FOR SEPARATE SEAT)
71590F Frame Sub-assy, Rear Seatback, LH(FOR SEPARATE TYPE)
71590P Pad, Rear Seatback, LH(FOR SEPARATE SEAT)
71650 Spring Assy, Rear Seat Cushion
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71670S Spring Assy, Rear Seatback, RH(FOR SEPARATE SEAT)
71671 Pad, Rear Seatback Silencer, A
71672 Pad, Rear Seatback Silencer, B
71680S Spring Assy, Rear Seatback, LH(FOR SEPARATE SEAT)
71681 Pad, Rear Seatback Corner, A
71682 Pad, Rear Seatback Corner, B
71812B Clip(FOR REAR SEAT CUSHION COVER)
71893 Garnish, Rear Seatback Side, Lower RH
71953 Pad, Rear Seat Headrest
71970 Headrest Assy, Rear Seat
72601 Striker Sub-assy, Rear Seat Lock
72603 Lock Sub-assy, Rear Seatback, RH
72619 Cover, Rear Seatback Lock Striker
72656 Button, Rear Seatback Stop Release
72666 Cover, Rear Seatback Lock, LH
72693 Hook, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
