Toyota Chaser

1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

11 part groups · 5 illustrations

Illustrations

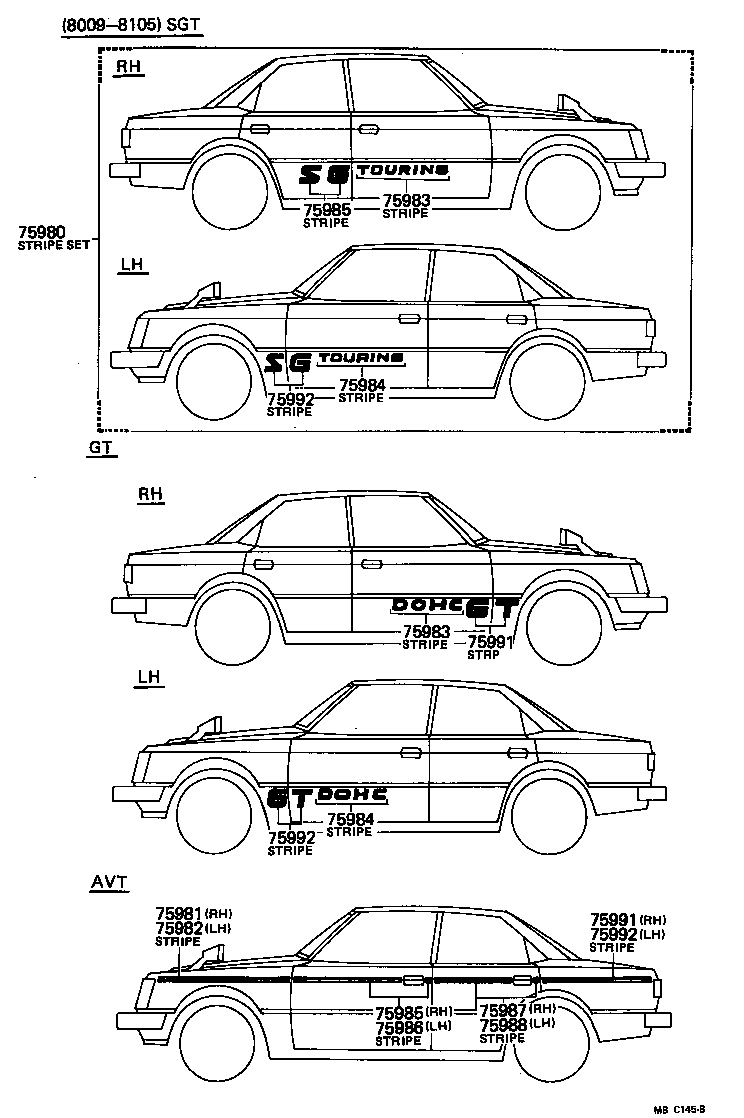

Figure MBC144B MBC144B 1980-09 → 1981-05 Figure MBC144B MBC144B 1980-09 → 1982-08 Figure MBC145B MBC145B 1980-09 → 1981-05 Figure MBC145B MBC145B 1980-09 → — Figure MBD100C MBD100C 1981-10 → 1982-08

Part groups

PNCDescription
75980 Stripe Set
75981 Stripe, Front Fender, RH NO.1
75982 Stripe, Front Fender, LH NO.1
75983 Stripe, Front Fender, RH NO.2
75984 Stripe, Front Fender, LH NO.2
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75987 Stripe, Rear Door, RH
75988 Stripe, Rear Door, LH
75991 Stripe, Quarter, RH NO.1
75992 Stripe, Quarter, LH NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
