Toyota Chaser
1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan
Discontinued model
Data version 1985-03

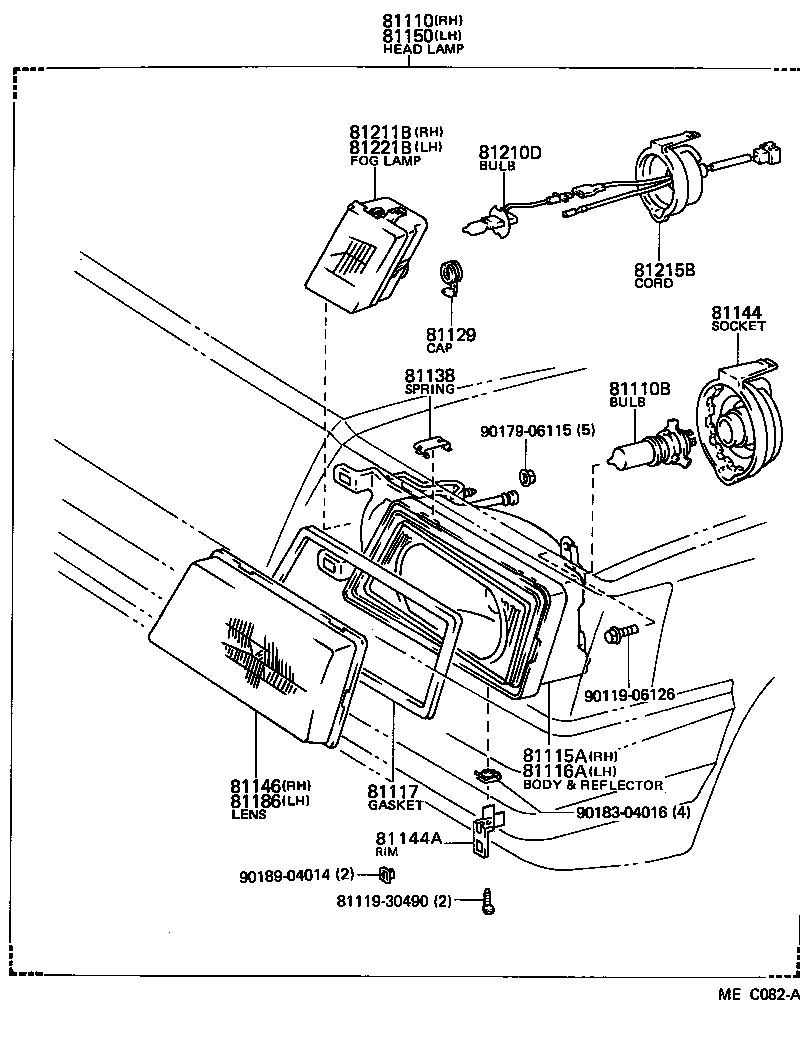

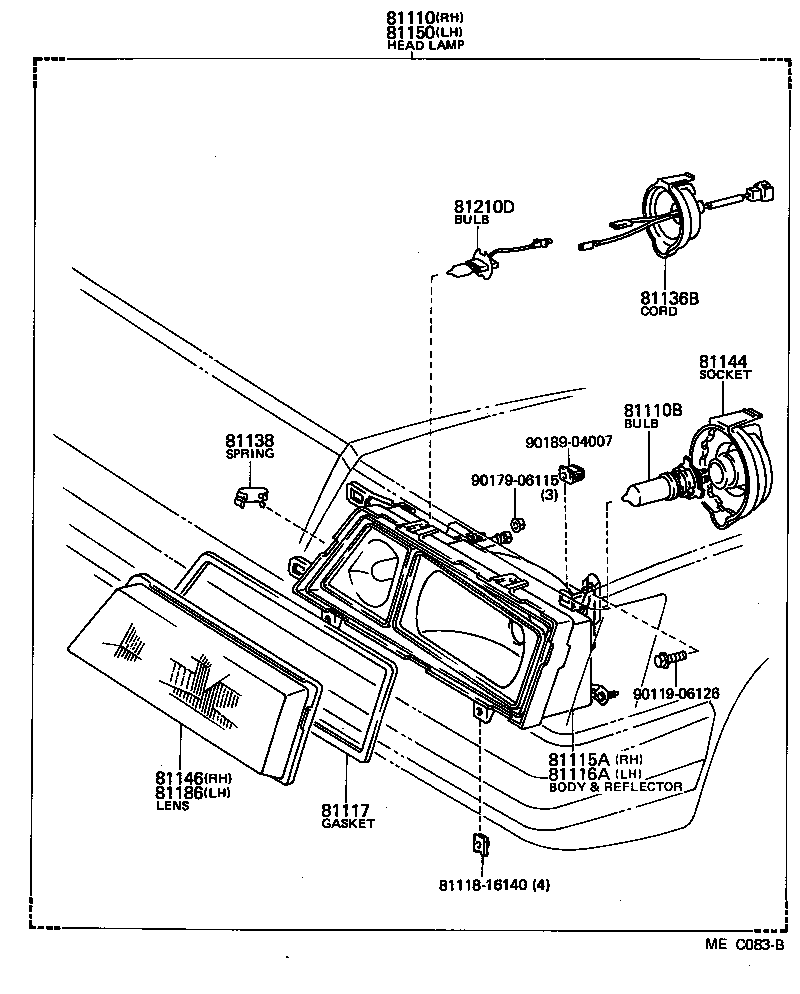

Headlamp
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81115A | Body And Reflector Sub-assy, Headlamp, RH |
| 81116A | Body And Reflector Sub-assy, Headlamp, LH |
| 81117 | Packing, Headlamp Housing |
| 81129 | Cap, Fog Lamp |
| 81136 | Protector, Headlamp, NO.1 RH |
| 81136B | Cord, Headlamp |
| 81138 | Spring, Headlamp |
| 81144 | Cover, Headlamp, NO.1 |
| 81144A | Rim, Headlamp Fitting |
| 81146 | Lens, Headlamp, RH |
| 81150 | Headlamp Assy, LH |
| 81176 | Protector, Headlamp, NO.1 LH |
| 81186 | Lens, Headlamp, LH |
| 81210D | Bulb, Fog Lamp |
| 81211B | Fog Lamp, RH |
| 81215B | Cord, Fog Lamp |
| 81221B | Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
