Toyota Chaser

1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

6 part groups · 2 illustrations

Illustrations

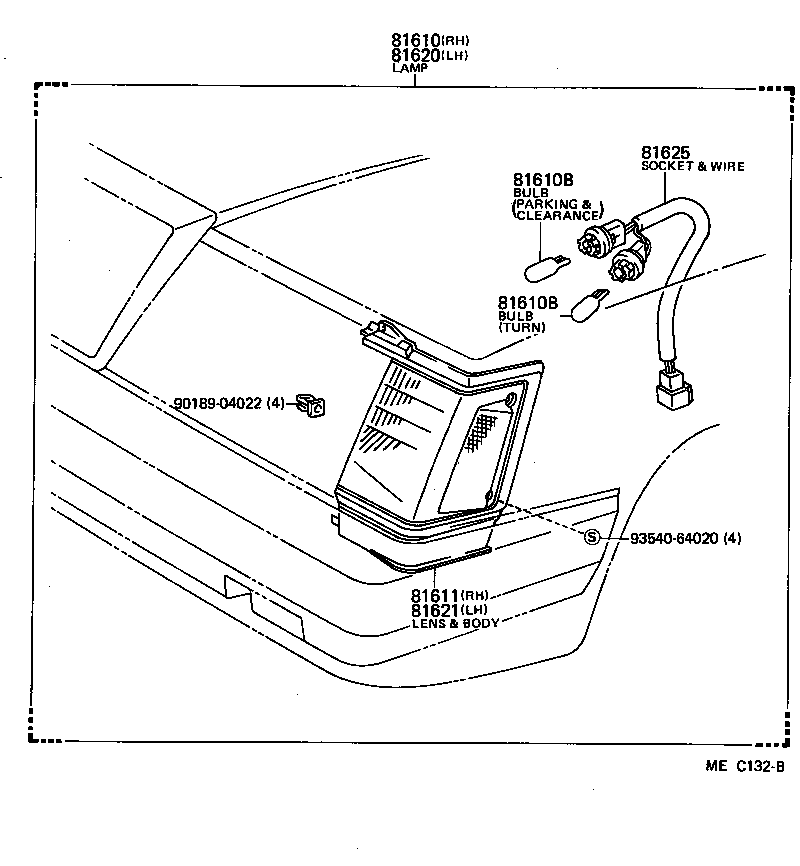

Figure MEC131B MEC131B 1982-08 → — Figure MEC132B MEC132B 1982-08 → —

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81625 Socket And Wire, Parking And Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
