Toyota Chaser
1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan
Discontinued model
Data version 1985-03

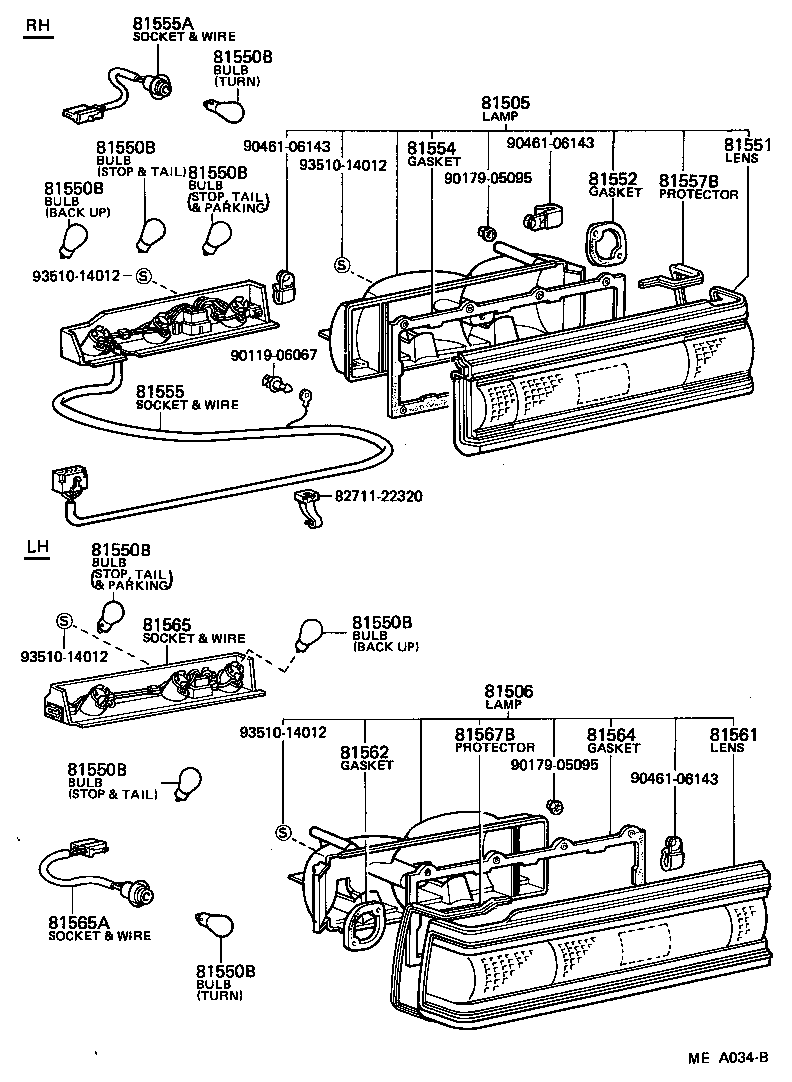

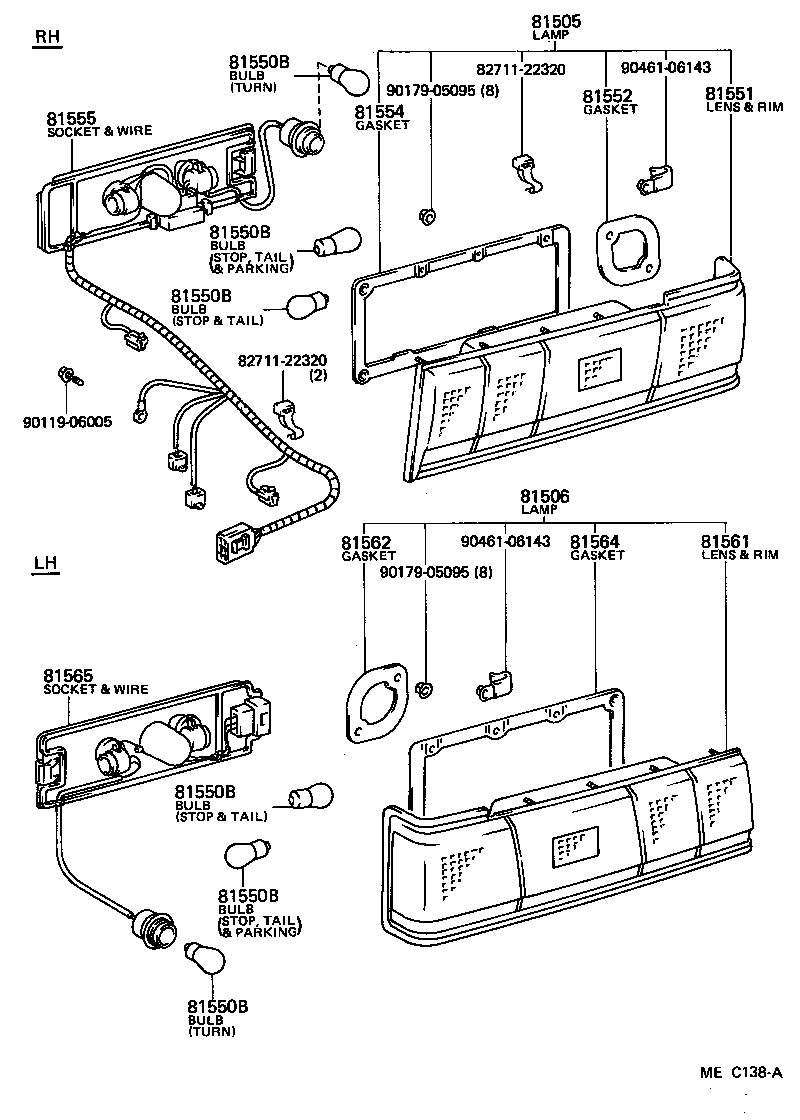

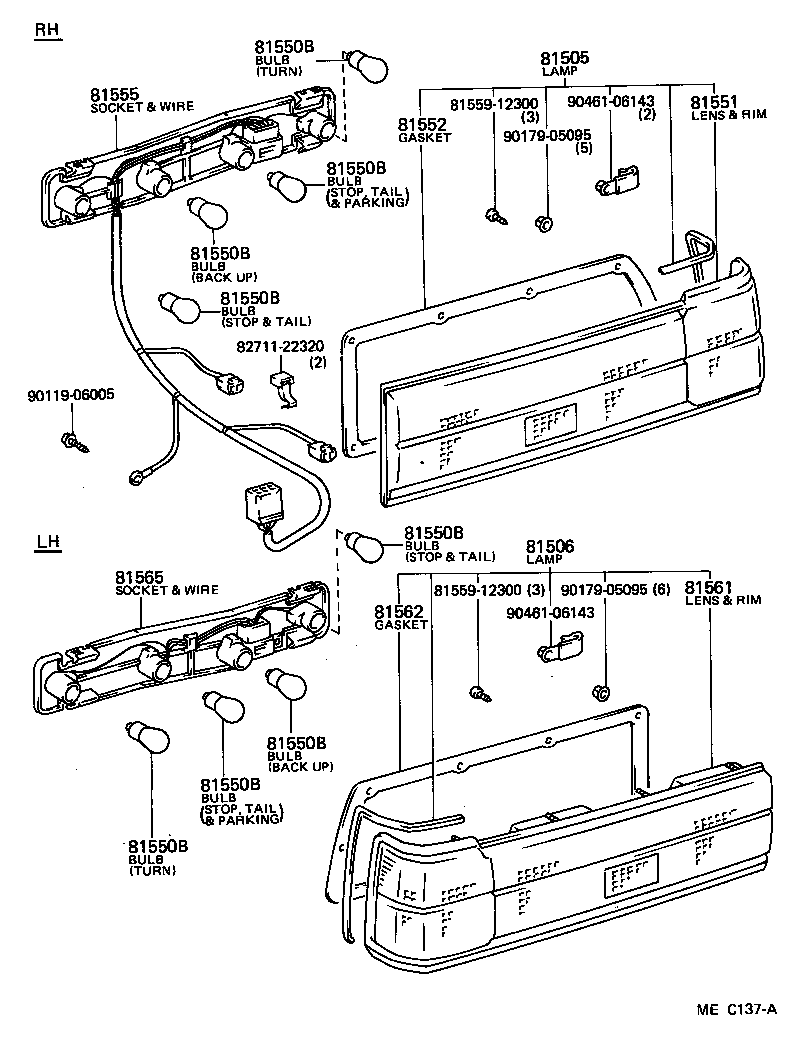

Rear Combination Lamp
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81505 | Lamp Sub-assy, Rear Combination, RH |
| 81506 | Lamp Sub-assy, Rear Combination, LH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81552 | Gasket, Rear Combination Lamp Lens, RH |
| 81554 | Gasket, Rear Combination Lamp Body, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81555A | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81557B | Protector, Rear Combination Lamp, RH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81562 | Gasket, Rear Combination Lamp Lens, LH |
| 81564 | Gasket, Rear Combination Lamp Body, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81565A | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81567B | Protector, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
