Toyota Chaser

1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

15 part groups · 2 illustrations

Illustrations

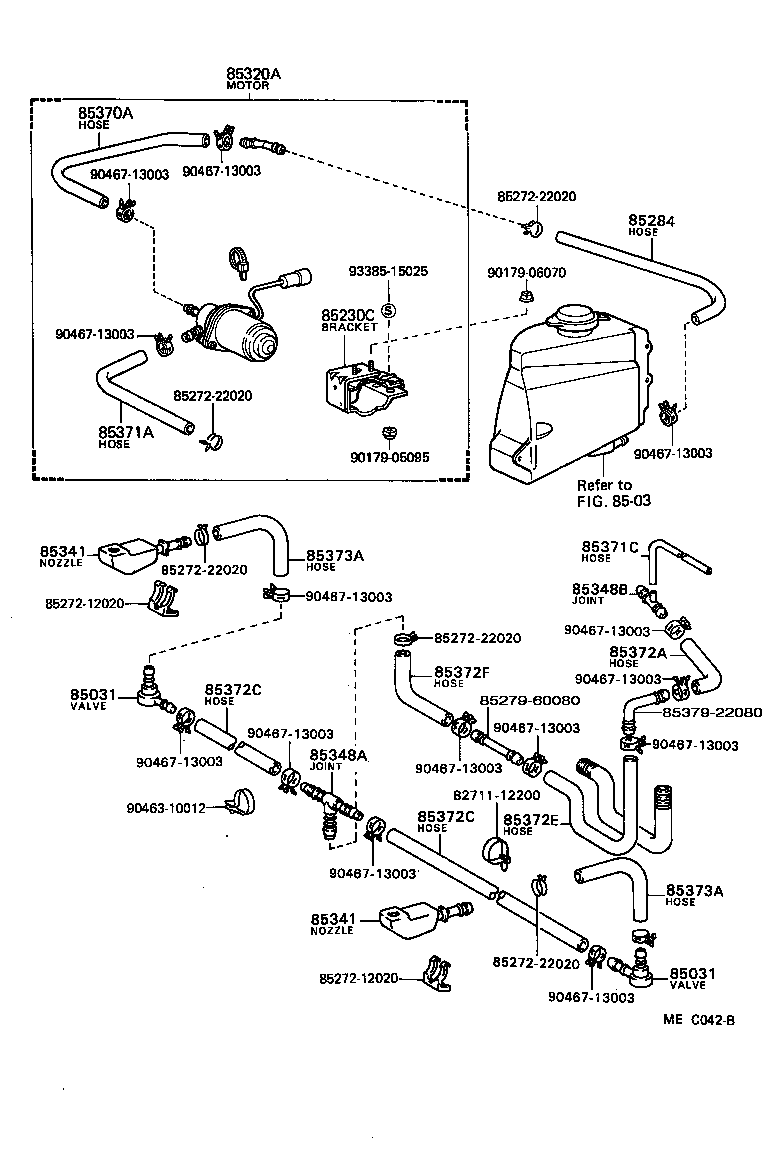

Figure MEA136D MEA136D 1980-09 → 1982-08 Figure MEC042B MEC042B 1982-08 → —

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85230C Bracket Assy, Headlamp Cleaner
85284 Hose Assy, Headlamp Cleaner Washer
85320A Motor And Bracket Assy, Headlamp Cleaner Washer
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85370A Hose Assy, Headlamp Cleaner Washer, NO.1
85371A Hose, Headlamp Cleaner(FROM MOTOR TO JOINT)
85371C Hose, Headlamp Cleaner, NO.1
85372A Hose, Headlamp Cleaner (FROM JOINT TO JOINT OR NOZZLE)
85372C Hose, Headlamp Cleaner Washer (FROM JOINT TO VALVE)
85372E Hose, Headlamp Cleaner Washer(FROM JOINT TO JOINT)
85372F Hose, Headlamp Cleaner Washer(FROM JOINT TO JOINT)
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
