Toyota Chaser

1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 3 illustrations

Illustrations

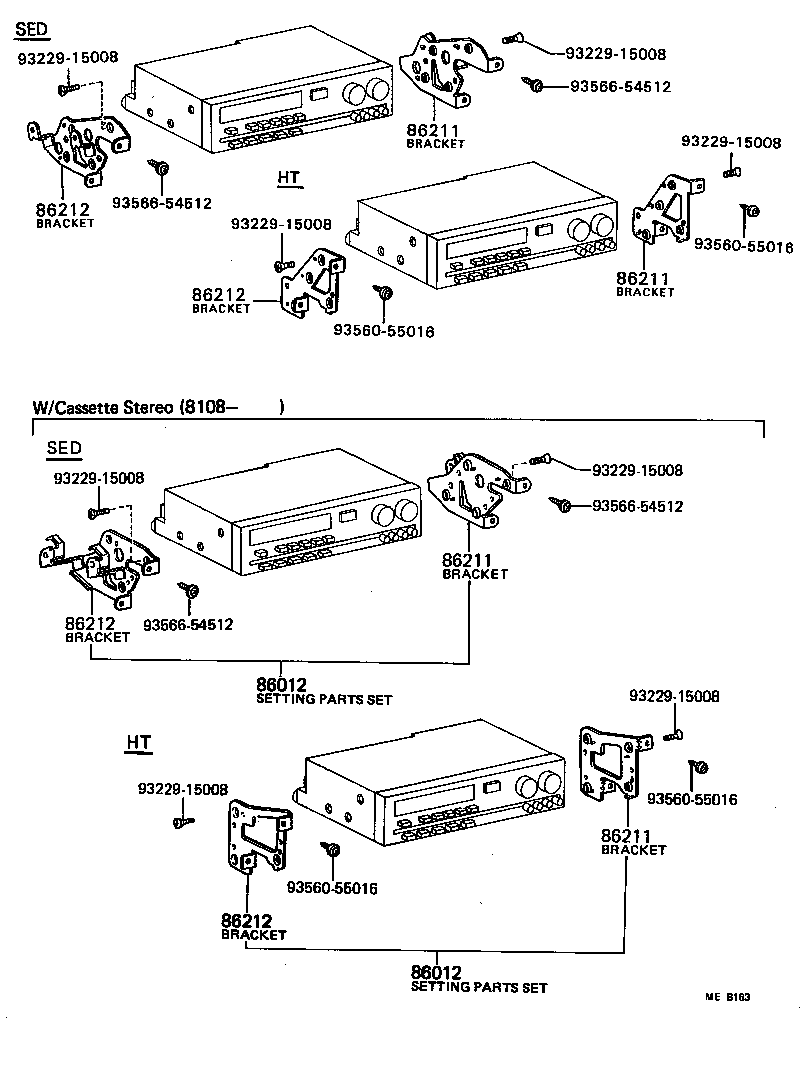

Figure MEA140C MEA140C 1980-09 → — Figure MEB163 MEB163 1980-09 → 1982-08 Figure MEC047A MEC047A 1982-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86012 Parts Set, Radio Setting
86120 Receiver Assy, Radio
86170 Switch And Volume Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86260 Tape Player Assy
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
