Toyota Chaser

1980-09 → 1984-07 · chassis GX6#,LX6#,MX61,RX6#,SX60,TX60 · catalogue 312140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

16 part groups · 8 illustrations

Illustrations

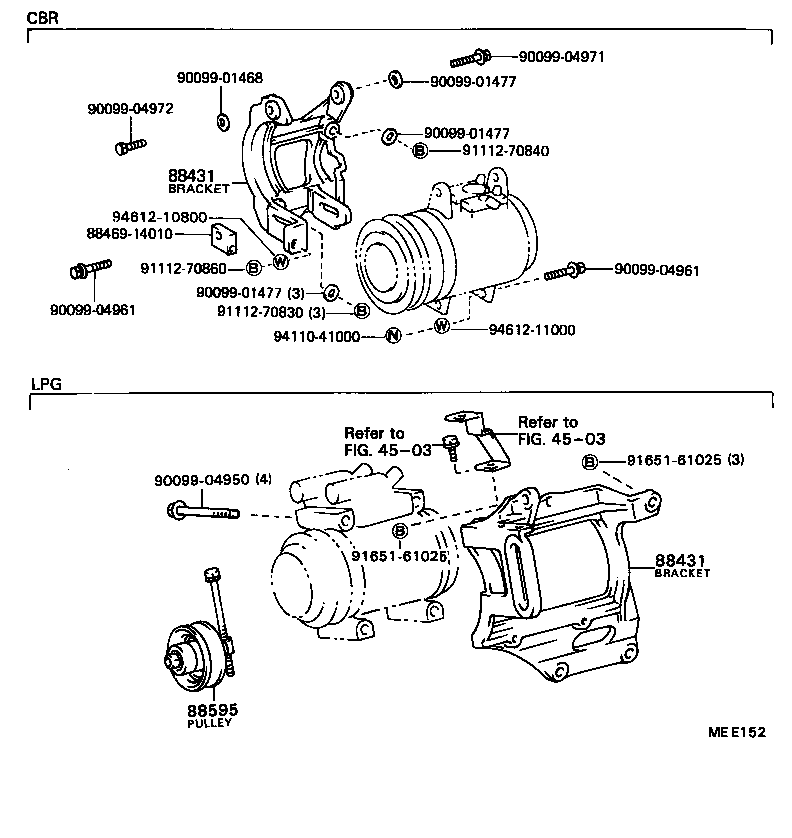

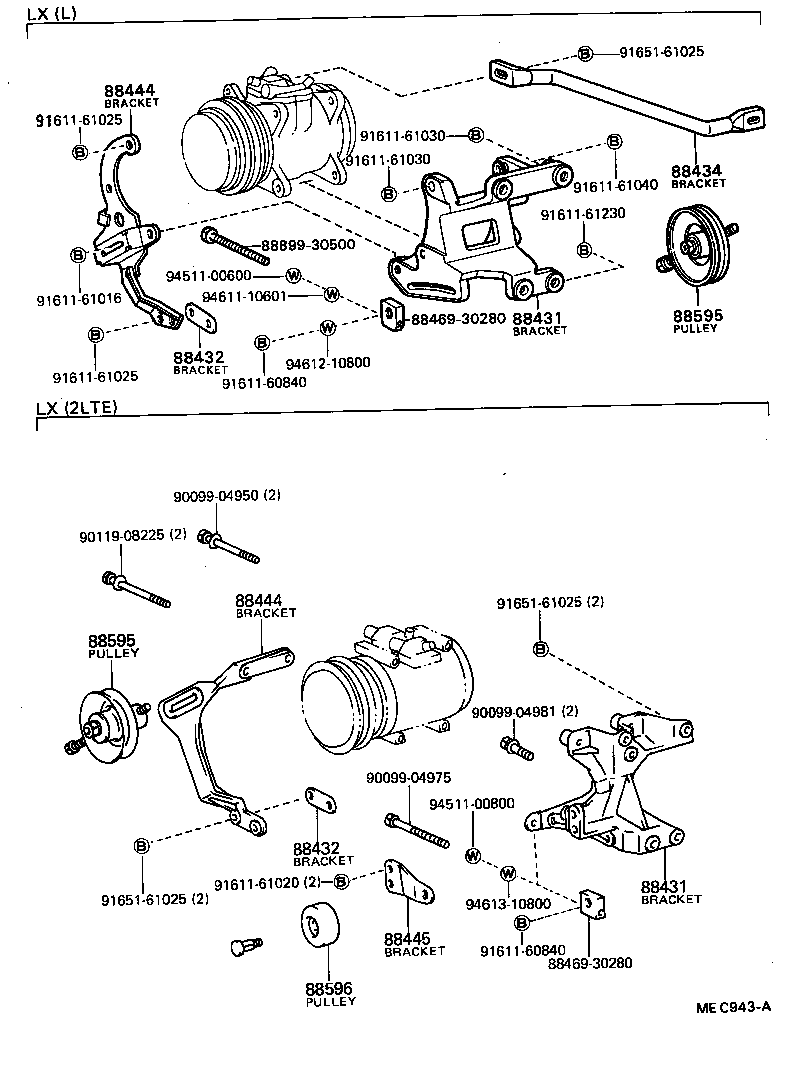

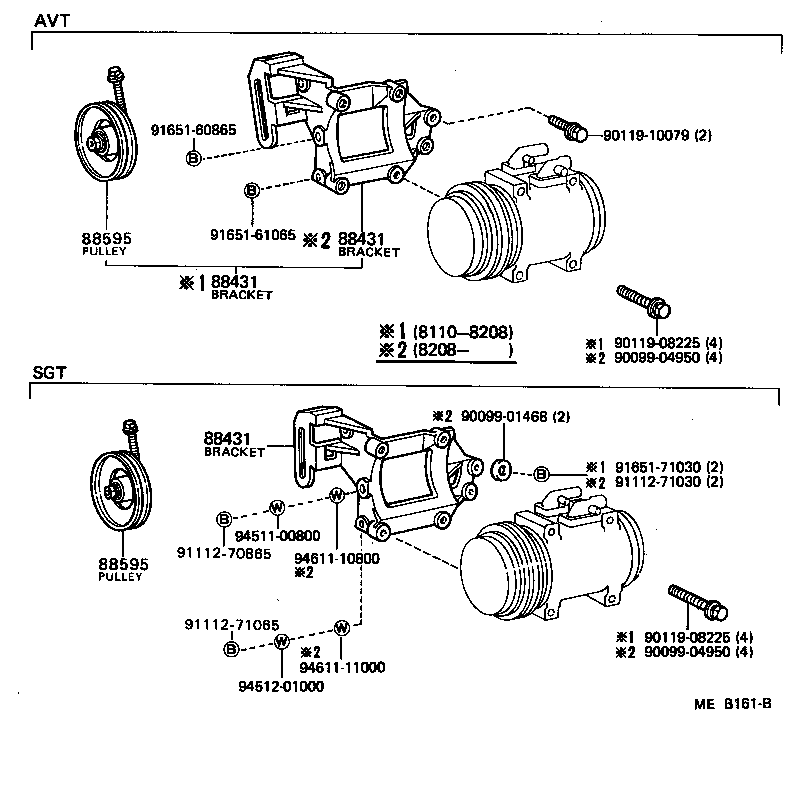

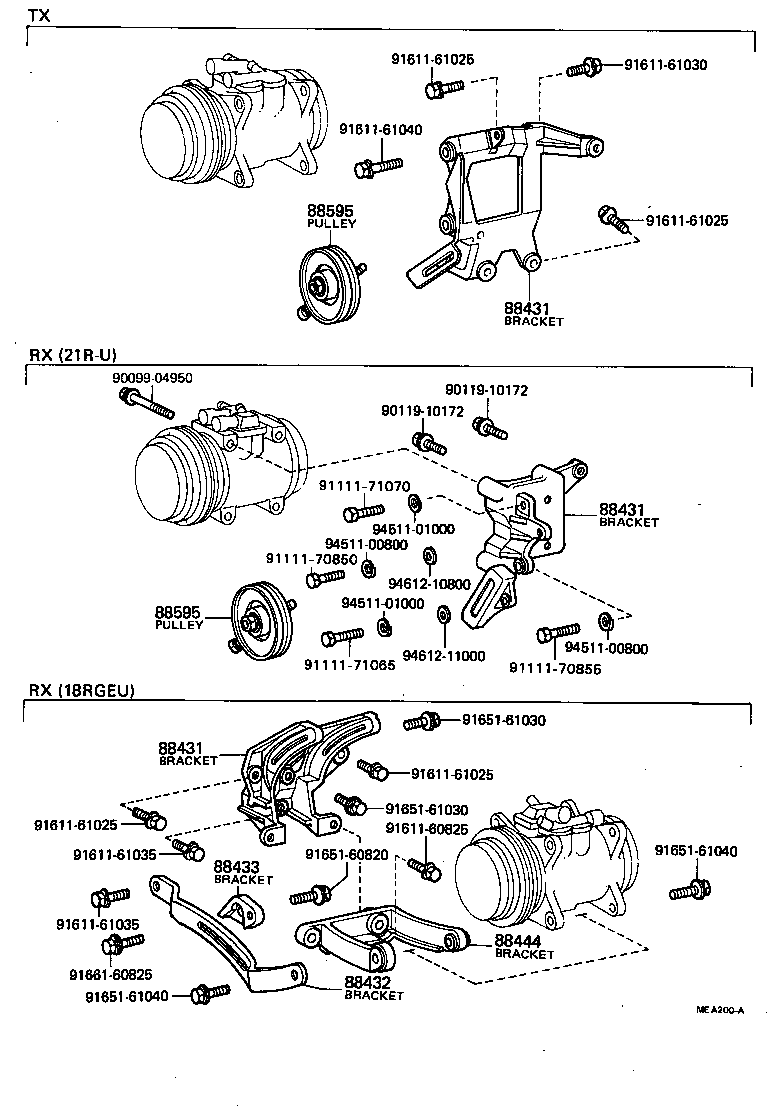

Figure MEC941 MEC941 1980-09 → — Figure MEA211E MEA211E 1980-09 → — Figure MEB473A MEB473A 1980-09 → — Figure MEA200A MEA200A 1980-09 → 1982-08 Figure MEE152 MEE152 1982-08 → — Figure ME8919D ME8919D 1980-09 → — Figure MEB161B MEB161B 1981-10 → — Figure MEC943A MEC943A 1980-09 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330B Bearing, Magnet Clutch
88330C Ring, Snap (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88415A Cover, Dust
88431 Bracket, Compressor Mounting, NO.1
88432 Bracket, Compressor Mounting, NO.2
88433 Bracket, Compressor Mounting, NO.3
88434 Bracket, Compressor Mounting, NO.4
88444 Bracket, Idle Pulley
88445 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
88596 Pulley Assy, Idle, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
