Toyota Chaser

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70,YX7# · catalogue 312150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

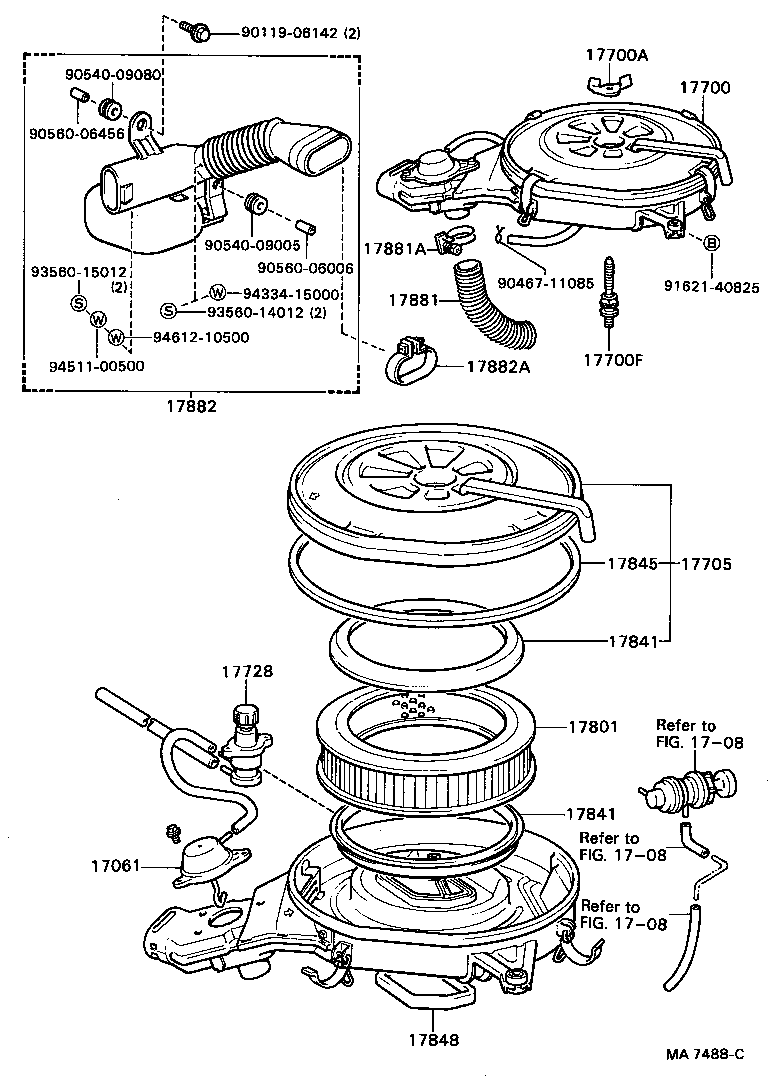

Exploded illustration MA7488C 9011906142 — not listed in this catalogue 17700A — NUT, WING(FOR AIR CLEANER) (2 parts) 9054009080 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (9 parts) 9056006456 — not listed in this catalogue 9054009005 — not listed in this catalogue 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (14 parts) 9056006006 — not listed in this catalogue 9356015012 — not listed in this catalogue 9046711085 — not listed in this catalogue 9162140825 — not listed in this catalogue 9433415000 — not listed in this catalogue 17881 — HOSE, AIR CLEANER, NO.1 (12 parts) 9356014012 — not listed in this catalogue 9461210500 — not listed in this catalogue 17700F — BOLT, STUD(FOR AIR CLEANER SETTING) (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (12 parts) 9451100500 — not listed in this catalogue 17882 — HOSE, AIR CLEANER, NO.2 (9 parts) 17845 — GASKET, AIR CLEANER CAP (2 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (6 parts) 17841 — GASKET, FILTER ELEMENT (2 parts) 17728 — VALVE, THERMOSTATIC (1 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (5 parts) 1708 — not listed in this catalogue 17841 — GASKET, FILTER ELEMENT (2 parts) 1708 — not listed in this catalogue 17061 — DIAPHRAGM SUB-ASSY (1 parts) 1708 — not listed in this catalogue 17848 — GASKET, AIR CLEANER TO CARBURETOR (2 parts)
MA7488C · 15 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
79 parts on this figure
Part number Description Fitment Price
17061 — Diaphragm Sub-assy
17061-63010 Diaphragm Sub-assy
1984-08 → 1988-08 ended
1SU SX70 ¥4,420
17700 — Cleaner Assy, Air
17700-54310 Cleaner Assy, Air
1984-08 → 1988-08 ended
2L# LX70 ¥31,400
17700-63090 Cleaner Assy, Air
1984-08 → 1986-08 ended
1SU SX70 ¥30,300
17700-63091 Cleaner Assy, Air
1986-08 → 1988-08 ended
1SU SX70 ¥38,600
17700-70030 Cleaner Assy, Air
1984-08 → 1986-08 ended
1GEU,1GG# GX71 ¥25,000
17700-70031 Cleaner Assy, Air
1986-08 → 1988-08 ended
1GEU,1GG# GX71 ¥25,000
17700-70040 Cleaner Assy, Air
1984-08 → 1985-10 ended
MTEU MX71 ¥25,000
17700-72050 Cleaner Assy, Air
1984-08 → 1986-04 ended
2YPU YX70 ¥49,800
17700-73130 Cleaner Assy, Air
1986-04 → 1988-08 ended
2YPU,3YPU YX7# ¥49,800
17700-73170 note Cleaner Assy, Air
1986-08 → 1988-08 ended
3YPU YX72 ¥55,000
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06009 Nut, Wing(FOR AIR CLEANER)
1984-08 → 1988-08 ended
1SU SX70 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1984-08 → 1988-08 ended
2YPU,3YPU YX7# —
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06021 Bolt, Stud(FOR AIR CLEANER SETTING)
1984-08 → 1988-08 ended
1SU SX70 ¥270
90116-08161 Bolt, Stud(FOR AIR CLEANER SETTING)
1984-08 → 1988-08 ended
2YPU,3YPU YX7# ¥250
17705 — Cap Sub-assy, Air Cleaner
17705-54110 Cap Sub-assy, Air Cleaner
1984-08 → 1988-08 ended
2L# LX70 —
17705-63010 Cap Sub-assy, Air Cleaner
1984-08 → 1988-08 ended
1SU SX70 —
17705-70030 Cap Sub-assy, Air Cleaner
1984-08 → 1988-08 ended
1GEU,1GG# GX71 —
17705-70040 Cap Sub-assy, Air Cleaner
1984-08 → 1985-10 ended
MTEU MX71 —
17705-72011 Cap Sub-assy, Air Cleaner
1984-08 → 1986-04 ended
2YPU YX70 —
17705-73060 Cap Sub-assy, Air Cleaner
1986-04 → 1988-08 ended
2YPU,3YPU YX7# —
17728 — Valve, Thermostatic
17728-63010 Valve, Thermostatic
1984-08 → 1988-08 ended
1SU SX70 ¥8,100
17801 — Element Sub-assy, Air Cleaner Filter
17801-25010 Element Sub-assy, Air Cleaner Filter
1984-08 → 1988-08 ended
1SU SX70 ¥1,370
17801-44040 Element Sub-assy, Air Cleaner Filter
1984-08 → 1988-08 ended
2YPU,3YPU YX7# ¥2,000
17801-54060 Element Sub-assy, Air Cleaner Filter
1984-08 → 1988-08 ended
2L# LX70 ¥3,680
17801-70020 Element Sub-assy, Air Cleaner Filter
1984-08 → 1988-08 ended
MTEU MX71 ¥2,840
17801-70020 Element Sub-assy, Air Cleaner Filter
1984-08 → 1988-08 ended
1GEU,1GG# GX71 ¥2,840
17841 — Gasket, Filter Element
17841-33011 Gasket, Filter Element
1984-08 → 1988-08 ended
2YPU,3YPU YX7# —
17841-63010 Gasket, Filter Element
1984-08 → 1988-08 ended
1SU SX70 —
17845 — Gasket, Air Cleaner Cap
17845-37020 note Gasket, Air Cleaner Cap
1984-08 → 1988-08 ended
1SU SX70 —
17845-42010 note Gasket, Air Cleaner Cap
1984-08 → 1988-08 ended
2YPU,3YPU YX7# —
17848 — Gasket, Air Cleaner TO Carburetor
17848-37011 Gasket, Air Cleaner TO Carburetor
1984-08 → 1988-08 ended
1SU SX70 —
90430-72003 Gasket, Air Cleaner TO Carburetor
1984-08 → 1988-08 ended
2YPU,3YPU YX7# ¥0
17881 — Hose, Air Cleaner, NO.1
17349-54010 Hose, Air Cleaner, NO.1
1984-08 → 1988-08 ended
2LT LX70 ¥2,060
17349-54020 note Hose, Air Cleaner, NO.1
1984-08 → 1988-08 ended
2L LX70 ¥1,890
17881-41070 Hose, Air Cleaner, NO.1
1984-08 → 1985-10 ended
MTEU MX71 ¥1,840
17881-54140 note Hose, Air Cleaner, NO.1
1984-08 → 1988-08 ended
2L LX70 ¥3,540
17881-63010 Hose, Air Cleaner, NO.1
1984-08 → 1985-02 ended
1SU SX70 —
17881-70090 Hose, Air Cleaner, NO.1
1984-08 → 1988-08 ended
1GGEU GX71 ¥4,140
17881-70100 Hose, Air Cleaner, NO.1
1984-08 → 1985-10 ended
1GEU GX71 ¥5,900
17881-70101 Hose, Air Cleaner, NO.1
1985-10 → 1988-08 ended
1GEU GX71 ¥6,000
17881-70130 Hose, Air Cleaner, NO.1
1985-10 → 1987-01 ended
1GGTEU GX71 ¥4,360
17881-70131 Hose, Air Cleaner, NO.1
1987-01 → 1988-08 ended
1GGTEU GX71 ¥4,360
17881-74040 Hose, Air Cleaner, NO.1
1985-02 → 1988-08 ended
1SU SX70 —
17881-74040 note Hose, Air Cleaner, NO.1
1986-08 → 1988-08 ended
3YPU YX72 —
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
90460-65004 Clamp(FOR AIR CLEANER HOSE, NO.1)
1987-08 → 1988-08 ended
2LT LX70 ¥400
90460-75001 Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-08 → 1985-10 ended
MTEU MX71 ¥520
96111-10460 Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-08 → 1988-08 ended
1SU SX70 ¥190
96111-10460 Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-08 → 1988-08 ended
3YPU YX72 ¥190
96111-10630 Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-08 → 1987-08 ended
2LT LX70 ¥230
96111-10670 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-08 → 1988-08 ended
2L LX70 ¥370
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-08 → 1988-08 ended
2L LX70 ¥160
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-08 → 1988-08 ended
2L LX70 ¥160
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-08 → 1988-08 ended
1GEU GX71 ¥160
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1985-10 → 1988-08 ended
1GGTEU GX71 ¥190
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-08 → 1988-08 ended
1GEU GX71 ¥160
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-08 → 1988-08 ended
1GGEU GX71 ¥180
96111-10880 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1985-10 → 1988-08 ended
1GGTEU GX71 ¥520
96111-10950 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-08 → 1988-08 ended
1GGEU GX71 ¥360
17882 — Hose, Air Cleaner, NO.2
17880-63010 Hose, Air Cleaner, NO.2
1984-08 → 1986-08 ended
1SU SX70 ¥8,900
17880-63011 Hose, Air Cleaner, NO.2
1986-08 → 1988-08 ended
1SU SX70 ¥9,100
17881-54240 note Hose, Air Cleaner, NO.2
1984-08 → 1988-08 ended
2LT LX70 ¥4,770
17881-54250 Hose, Air Cleaner, NO.2
1984-08 → 1988-08 ended
2YPU,3YPU YX7# ¥3,520
17882-41150 Hose, Air Cleaner, NO.2
1984-08 → 1985-10 ended
MTEU MX71 ¥4,940
17882-54130 note Hose, Air Cleaner, NO.2
1984-08 → 1988-08 ended
2L# LX70 ¥4,140
17882-70080 Hose, Air Cleaner, NO.2
1984-08 → 1988-08 ended
1GGEU GX71 ¥3,940
17882-70090 Hose, Air Cleaner, NO.2
1985-10 → 1987-01 ended
1GGTEU GX71 ¥3,730
17882-70091 Hose, Air Cleaner, NO.2
1987-01 → 1988-08 ended
1GGTEU GX71 ¥3,730
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
17891-54010 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1986-09 → 1987-11 ended
2L# LX70 ¥880
17891-54010 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-11 → 1988-08 ended
2L LX70 ¥880
17891-54020 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-11 → 1988-08 ended
2LT LX70 ¥780
90460-01016 Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-08 → 1988-08 ended
1SU SX70 ¥370
90460-01016 Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-08 → 1988-08 ended
2YPU,3YPU YX7# ¥370
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-08 → 1985-10 ended
MTEU MX71 ¥160
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-08 → 1986-09 ended
2L# LX70 ¥160
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1986-09 → 1988-08 ended
2L# LX70 ¥160
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-08 → 1985-10 ended
MTEU MX71 ¥160
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-08 → 1988-08 ended
1GGEU GX71 ¥180
96111-10880 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1985-10 → 1988-08 ended
1GGTEU GX71 ¥520
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-08 → 1988-08 ended
1GG# GX71 ¥410
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
