Toyota Chaser

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70,YX7# · catalogue 312150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

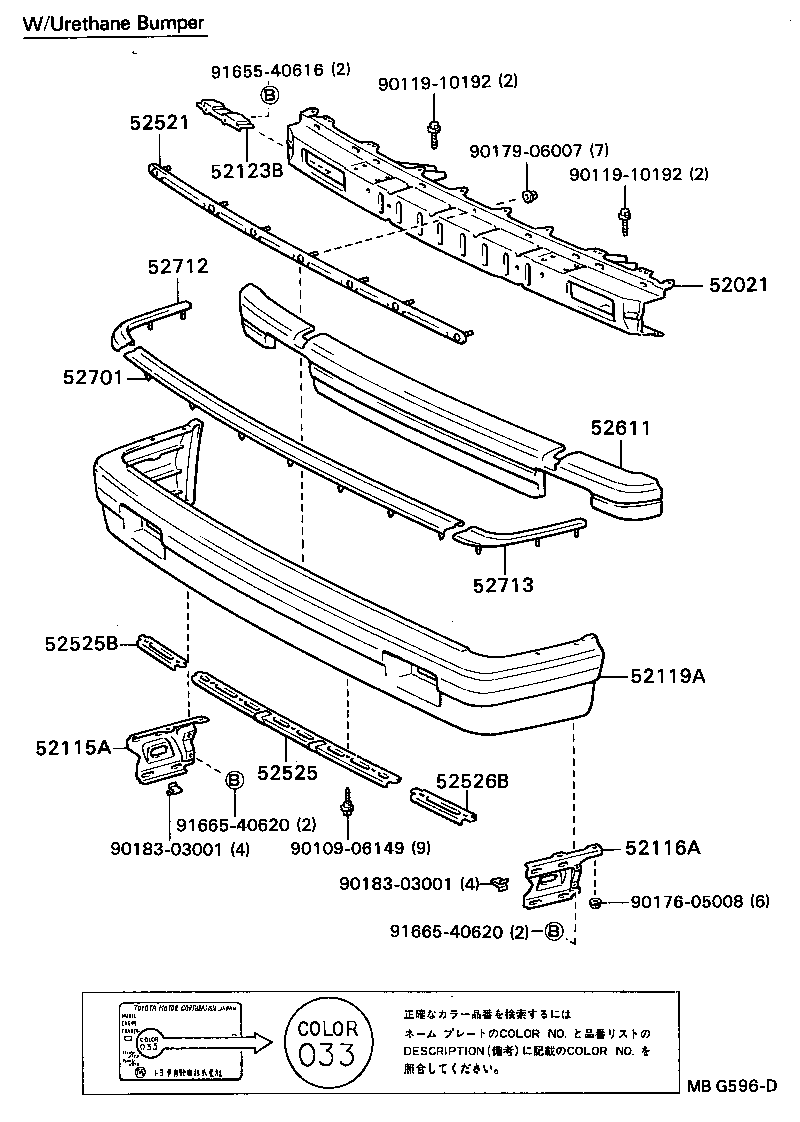

Figure MBG595C MBG595C 1984-08 → — Figure MBG596D MBG596D 1984-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52123B Plate, Front Bumper Reinforcement, RH
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526B Retainer, Front Bumper, Lower Side LH
52611 Absorber, Front Bumper Energy
52701 Moulding Sub-assy, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713 Plug, Front Bumper Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
