Toyota Chaser

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70,YX7# · catalogue 312150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

15 part groups · 2 illustrations

Illustrations

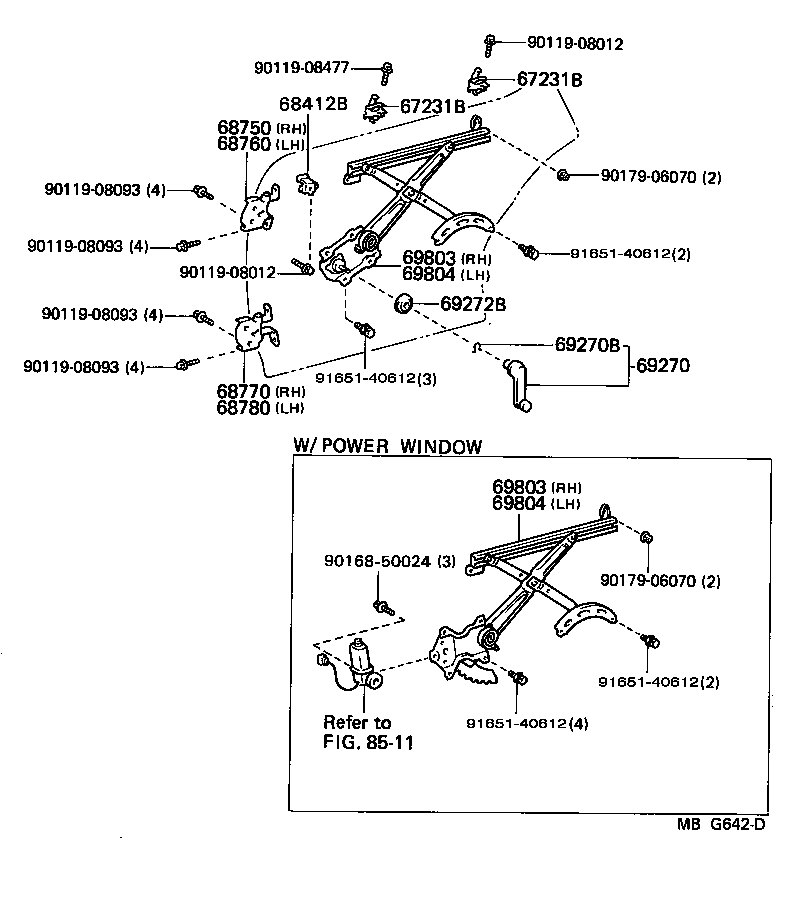

Figure MBG641A MBG641A 1984-08 → — Figure MBG642D MBG642D 1984-08 → —

Part groups

PNCDescription
67148A Stabilizer, Rear Door Glass Male, RH
67231B Support, Rear Door Trim
68412B Stop Sub-assy, Door Window, Upper
68750 Hinge Assy, Rear Door, Upper RH
68760 Hinge Assy, Rear Door, Upper LH
68770 Hinge Assy, Rear Door, Lower RH
68780 Hinge Assy, Rear Door, Lower LH
69270 Handle Assy, Rear Door Window Regulator
69270B Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69272B Plate, Rear Door Regulator Inside Handle
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
69950 Bracket Sub-assy, Rear Door Glass, RH
69960 Bracket Sub-assy, Rear Door Glass, LH
69980A Roller Assy, Rear Door Glass Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
