Toyota Chaser
1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70,YX7# · catalogue 312150 · Japan
Discontinued model
Data version 1989-02

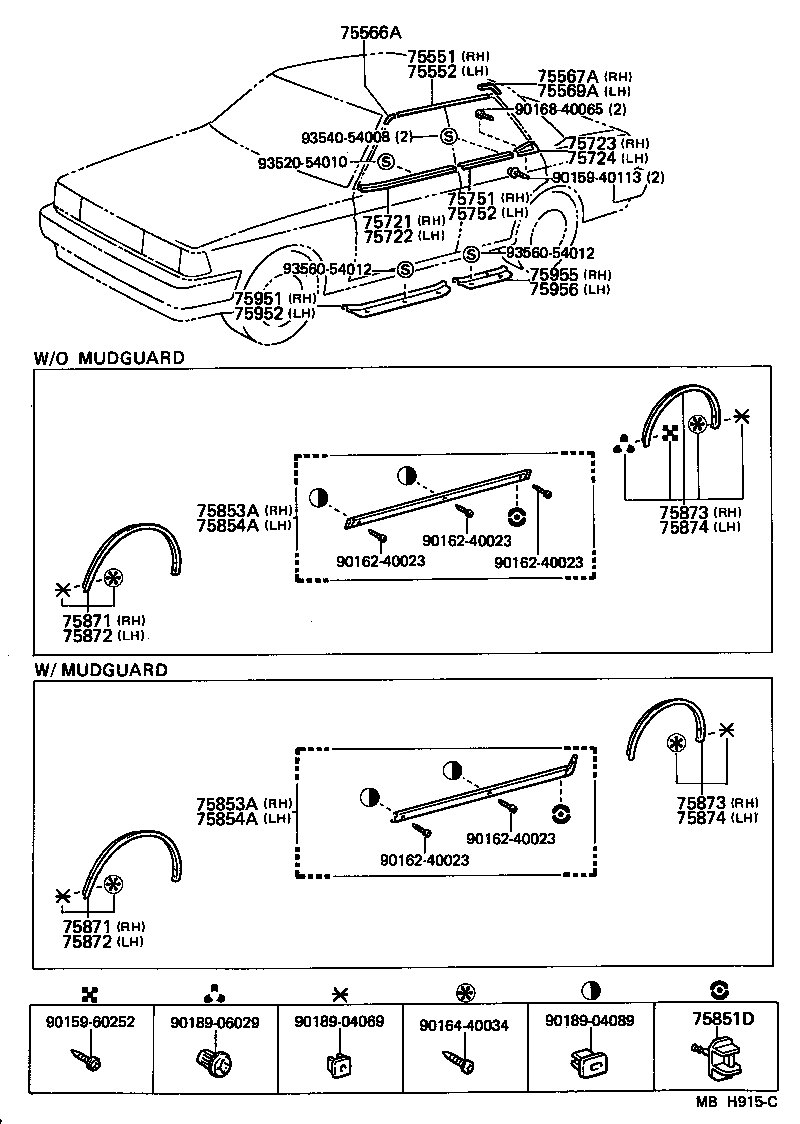

Side Moulding
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75566A | Seal, Roof Drip Side Finish Moulding, Front |
| 75567A | Seal, Roof Drip Side Finish Moulding, NO.2 |
| 75569A | Seal, Roof Drip Side Finish Moulding, NO.3 |
| 75623A | Moulding, Front Fender, Outside Rear RH |
| 75624A | Moulding, Front Fender, Outside Rear LH |
| 75655A | Moulding, Quarter, Outside Center RH |
| 75656A | Moulding, Quarter, Outside Center LH |
| 75721 | Moulding, Front Door Belt, RH |
| 75722 | Moulding, Front Door Belt, LH |
| 75723 | Moulding, Rear Door Belt, Rear RH |
| 75724 | Moulding, Rear Door Belt, Rear LH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75751 | Moulding, Rear Door Belt, RH |
| 75752 | Moulding, Rear Door Belt, LH |
| 75851D | Clip(FOR ROCKER PANEL MOULDING SET) |
| 75853A | Moulding, Rocker Panel, Center RH |
| 75854A | Moulding, Rocker Panel, Center LH |
| 75871 | Moulding, Front Fender Wheel Opening, RH |
| 75872 | Moulding, Front Fender Wheel Opening, LH |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
| 75951 | Plate, Front Door Scuff, Outside RH |
| 75952 | Plate, Front Door Scuff, Outside LH |
| 75955 | Plate, Rear Door Scuff, Outside RH |
| 75956 | Plate, Rear Door Scuff, Outside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
