Toyota Chaser

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70,YX7# · catalogue 312150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

11 part groups · 2 illustrations

Illustrations

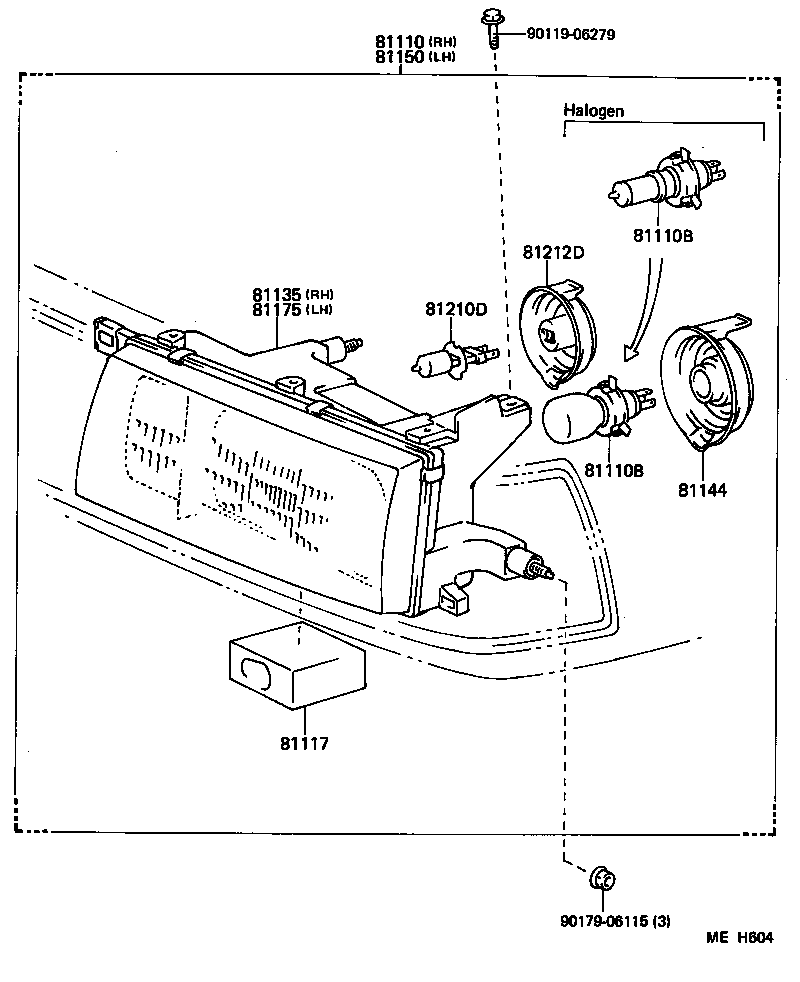

Figure MEE597A MEE597A 1984-08 → 1986-08 Figure MEH604 MEH604 1986-08 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81117 Packing, Headlamp Housing
81135 Unit Assy, Headlamp, RH
81136 Protector, Headlamp, NO.1 RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81176 Protector, Headlamp, NO.1 LH
81210D Bulb, Fog Lamp
81212D Cover, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
