Toyota Chaser

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 312160 · Japan

Discontinued model Data version 1993-06

Front Door Panel & Glass

38 part groups · 2 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67001A	Cushion, Front Door Panel
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67401G	Guide Sub-assy, Front Door Window, Front RH
67402G	Guide Sub-assy, Front Door Window, Front LH
67403B	Guide Sub-assy, Front Door Window, Rear RH
67404B	Guide Sub-assy, Front Door Window, Rear LH
67481A	Seal, Front Door Front Lower Frame, RH
67482A	Seal, Front Door Front Lower Frame, LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67495A	Cover, Front Door Front Lower Frame, Upper RH
67496A	Cover, Front Door Front Lower Frame, Upper LH

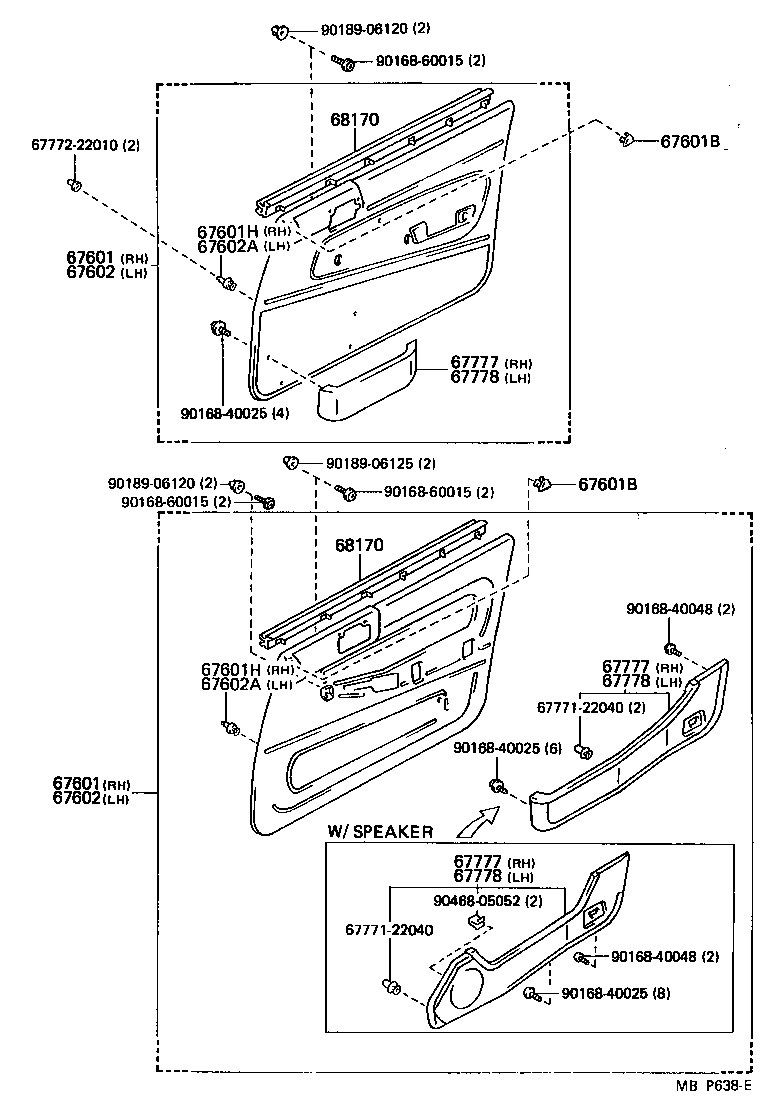

67601	Board Sub-assy, Front Door Trim, RH
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67601H	Retainer, Door Trim, RH
67602	Board Sub-assy, Front Door Trim, LH
67602A	Retainer, Door Trim, LH
67777	Pocket, Front Door Trim, RH
67778	Pocket, Front Door Trim, LH
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67839A	Cover, Front Door Service Hole, Lower
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67867C	Retainer, Front Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
67869B	Clip, Front Door Weatherstrip
67869E	Clip, Front Door Weatherstrip
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68170	Weatherstrip Assy, Front Door Glass, Inner
68610	Check Assy, Front Door
68617	Pin, Front Door Check
68621A	Cover, Front Door Check, RH
68622	Cover, Front Door Check, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
