Toyota Chaser

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 312160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

29 part groups · 2 illustrations

Illustrations

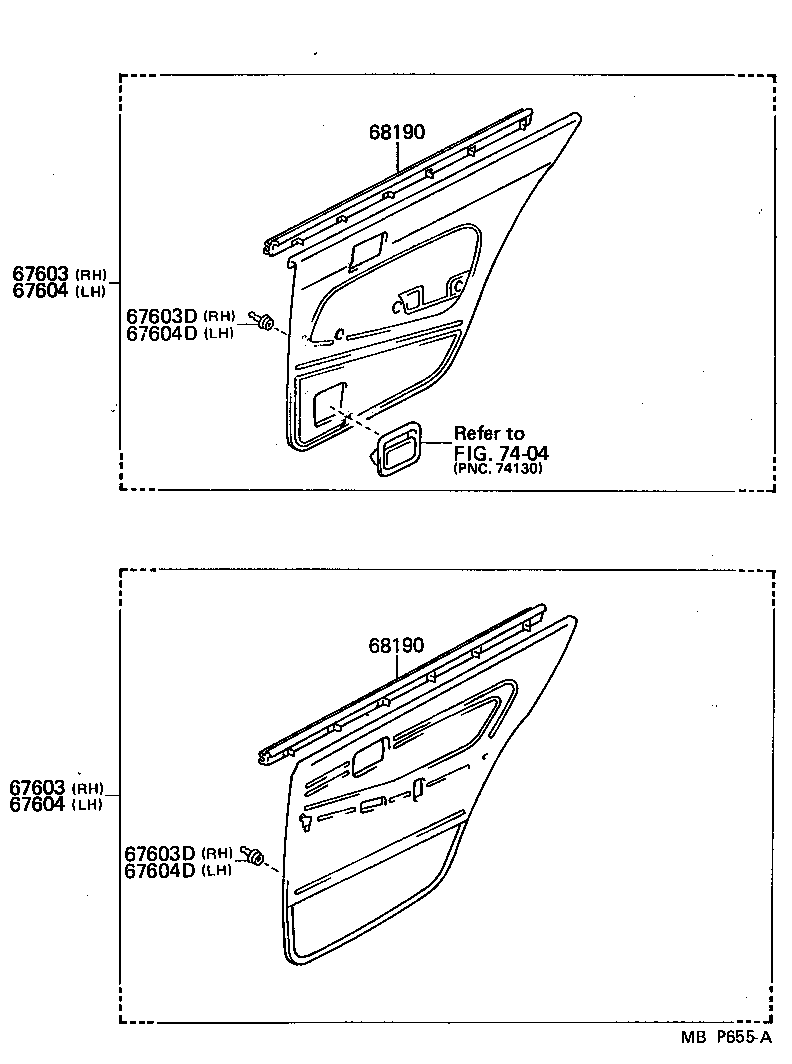

Figure MBP651B MBP651B 1988-08 → 1992-10 Figure MBP655A MBP655A 1988-08 → —

Part groups

PNCDescription
67003 Panel Sub-assy, Rear Door, RH
67003C Cushion, Rear Door Panel
67004 Panel Sub-assy, Rear Door, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67405B Guide Sub-assy, Rear Door Window, Front RH
67406B Guide Sub-assy, Rear Door Window, Front LH
67407D Guide Sub-assy, Rear Door Window, Rear RH
67408D Guide Sub-assy, Rear Door Window, Rear LH
67603 Board Sub-assy, Rear Door Trim, RH
67603D Retainer, Rear Door Trim, RH
67604 Board Sub-assy, Rear Door Trim, LH
67604D Retainer, Rear Door Trim, LH
67836 Cover, Rear Door Lock Child Protection, RH
67839B Cover, Rear Door Service Hole, Lower
67841E Cover, Rear Door Service Hole, RH
67842E Cover, Rear Door Service Hole, LH
67867D Retainer, Rear Door Weatherstrip, RH
67868D Retainer, Rear Door Weatherstrip, LH
67869D Clip, Door Weatherstrip
67871 Weatherstrip, Rear Door, RH
67872 Weatherstrip, Rear Door, LH
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68190 Weatherstrip Assy, Rear Door Glass, Inner
68617A Pin, Rear Door Check
68623 Cover, Door Check, RH
68624 Cover, Door Check, LH
68630 Check Assy, Rear Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
