Toyota Chaser

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 312170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

26 part groups · 2 illustrations

Illustrations

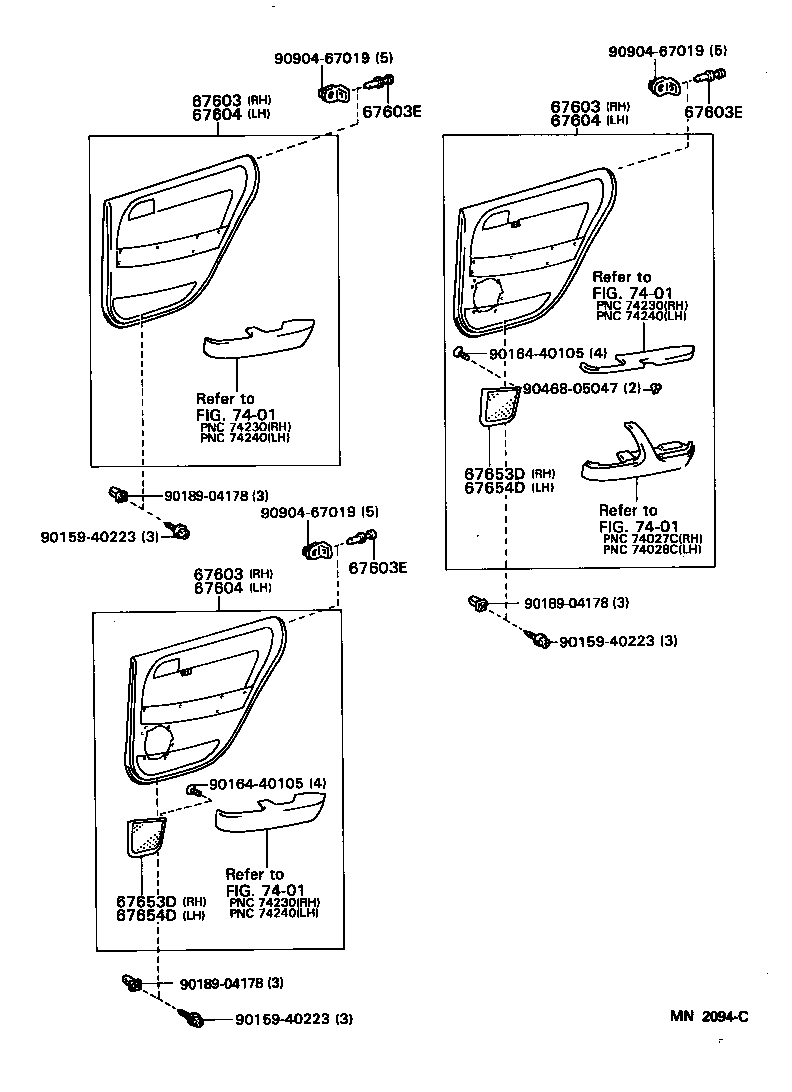

Figure MBX176D MBX176D 1992-10 → — Figure MN2094C MN2094C 1992-10 → —

Part groups

PNCDescription
67003 Panel Sub-assy, Rear Door, RH
67003A Plug, Hole(FOR REAR DOOR PANEL)
67003C Cushion, Rear Door Panel
67004 Panel Sub-assy, Rear Door, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67407D Guide Sub-assy, Rear Door Window, Rear RH
67408D Guide Sub-assy, Rear Door Window, Rear LH
67603 Board Sub-assy, Rear Door Trim, RH
67603E Clip(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67653D Grille Sub-assy, Rear Door Speaker, RH
67654D Grille Sub-assy, Rear Door Speaker, LH
67836 Cover, Rear Door Lock Child Protection, RH
67841E Cover, Rear Door Service Hole, RH
67842E Cover, Rear Door Service Hole, LH
67845A Sub-sheet, Rear Door Service Hole
67867D Retainer, Rear Door Weatherstrip, RH
67868D Retainer, Rear Door Weatherstrip, LH
67869D Clip, Door Weatherstrip
67871 Weatherstrip, Rear Door, RH
67872 Weatherstrip, Rear Door, LH
67887B Clip(FOR REAR DOOR WEATHERSTRIP)
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68630 Check Assy, Rear Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
